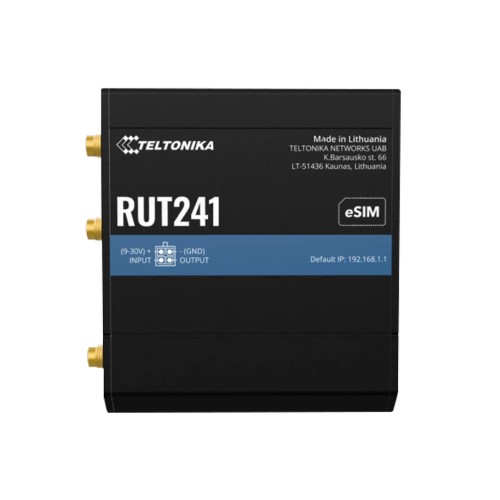

Teltonika RUT241 4G/LTE Router

Technical Features

t
• Mobile module
  4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps

t

• 3GPP Release
  Release 10/11 depending on the hardware version

t

• eSIM*
  Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans

t

• *Feature availability varies by order code

t

• SIM switch*
  1 x 2FF SIM and 1 x eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail

t

• *Feature availability varies by order code

t

• Status
  IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

t

• SMS
  SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

t

• USSD
  Supports sending and reading Unstructured Supplementary Service Data messages

t

• Block/Allow list
  Operator block/allow list (by country or separate operators)

t

• Multiple PDN
  Possibility to use different PDNs for multiple network access and services

t

• Band management
  Band lock, Used band status display

t

• SIM PIN code management
  SIM PIN code management enables setting, changing, or disabling the SIM card’s PIN

t

• APN
  Auto APN

t

• Bridge
  Direct connection (bridge) between mobile ISP and device on LAN

t

• Passthrough
  Router assigns its mobile WAN IP address to another device on LAN

t
• Wireless mode
  802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)

t

• Wi-Fi security
  WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

t

• SSID/ESSID
  SSID stealth mode and access control based on MAC address

t

• Wi-Fi users
  Up to 50 simultaneous connections

t

• Wireless Connectivity Features
  Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

t

• Wireless MAC filter
  Allowlist, blocklist

t

• Wireless QR code generator
  Once scanned, a user will automatically enter your network without needing to input login information

t

• TravelMate
  Forward Wi-Fi hotspot landing page to a subsequent connected device

t
• WAN
  1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

t

• LAN
  1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

t
• Routing
  Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

t

• Network protocols
  TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

t

• VoIP passthrough support
  H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

t

• Connection monitoring
  Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

t

• Firewall
  Port forward, traffic rules, custom rules, TTL target customisation

t

• Firewall status page
  View all your Firewall statistics, rules, and rule counters

t

• Ports management
  View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

t

• Network topology
  Visual representation of your network, showing which devices are connected to which other devices

t

• Hotspot
  Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

t

• DHCP
  Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

t

• QoS / Smart Queue Management (SQM)
  Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

t

• DDNS
  Supported >25 service providers, others can be configured manually

t

• DNS over HTTPS
  DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

t

• Network backup
  Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

t

• Load balancing
  Balance Internet traffic over multiple WAN connections

t

• SSHFS
  Possibility to mount remote file system via SSH protocol

t

• Traffic Management
  Real-time monitoring, wireless signal charts, traffic usage history

t
• Authentication
  Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

t

• Firewall
  Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

t

• Attack prevention
  DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

t

• VLAN
  Port and tag-based VLAN separation

t

• Mobile quota control
  Mobile data limit, customizable period, start time, warning limit, phone number

t

• WEB filter
  Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

t

• Access control
  Flexible access control of SSH, Web interface, CLI and Telnet

t

• SSL certificate generation
  Let’s Encrypt and SCEP certificate generation methods

t

• 802.1x
  Port-based network access control server

t
• OpenVPN
  Multiple clients and a server can run simultaneously, 27 encryption methods

t

• OpenVPN Encryption
  DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

t

• IPsec
  XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

t

• GRE
  GRE tunnel, GRE tunnel over IPsec support

t

• PPTP, L2TP
  Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

t

• Stunnel
  Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

t

• DMVPN
  Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

t

• SSTP
  SSTP client instance support

t

• ZeroTier
  ZeroTier VPN client support

t

• WireGuard
  WireGuard VPN client and server support

t

• Tinc
  Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.

t
• Supported modes
  Client, Server

t

• Supported connection types
  TCP

t
• Supported modes
  Server, Client

t

• Supported connection types
  TCP

t

• Custom registers
  MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

t

• Supported data formats
  8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

t
• Protocol
  HTTP(S), MQTT, Azure MQTT

t

• Data to server
  Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature

t
• Modbus MQTT Gateway
  Allows sending commands and receiving data from MODBUS Server through MQTT broker

t
• Supported modes
  Station, Outstation

t

• Supported connection
  TCP

t
• DLMS Support
  DLMS – standard protocol for utility meter data exchange

t

• Supported modes
  Client

t

• Supported connection types
  TCP

t
• Teltonika Networks Web API (beta) support
  Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

t
• WEB UI
  HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

t

• FOTA
  Firmware update from server, automatic notification

t

• SSH
  SSH (v1, v2)

t

• SMS
  SMS status, SMS configuration

t

• Call
  Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

t

• TR-069
  OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

t

• MQTT
  MQTT Broker, MQTT publisher

t

• SNMP
  SNMP (v1, v2, v3), SNMP Trap, Brute force protection

t

• JSON-RPC
  Management API over HTTP/HTTPS

t

• RMS
  Teltonika Remote Management System (RMS)

t
• ThingWorx
  Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

t

• Cumulocity – Cloud of Things
  Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

t

• Azure IoT Hub
  Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

t

• AWS IoT Core
  Utility to interact with the AWS cloud platform. Jobs Support: Call the device’s API using AWS Jobs functionality

t
• CPU
  Mediatek, 580 MHz, MIPS 24KEc

t

• RAM
  128 MB, DDR2

t

• FLASH storage
  16 MB, SPI Flash

t
• WEB UI
  Update FW from file, check FW on server, configuration profiles, configuration backup

t

• FOTA
  Update FW

t

• RMS
  Update FW/configuration for multiple devices at once

t

• Keep settings
  Update FW without losing current configuration

t

• Factory settings reset
  A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration

t
• Operating system
  RutOS (OpenWrt based Linux OS)

t

• Supported languages
  Busybox shell, Lua, C, C++

t

• Development tools
  SDK package with build environment provided

t

• GPL customization
  You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

t

• Package Manager
  The Package Manager is a service used to install additional software on the device

t
• Input
  1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high

t

• Output
  1 x Digital Output, Open collector output, max output 30 V, 300 mA

t

• Events
  Email, RMS, SMS

t

• I/O juggler
  Allows to set certain I/O conditions to initiate event

t
• Connector
  4-pin industrial DC power socket

t

• Input voltage range
  9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max

t

• PoE (passive)
  Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDC

t

• Power consumption
  < 6.5 W Max

t
• Ethernet
  2 x RJ45 ports, 10/100 Mbps

t

• I/O’s
  1 x Digital Input, 1 x Digital Output on 4-pin power connector

t

• Status LEDs
  3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED

t

• SIM
  1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder

t

• Power
  1 x 4-pin power connector

t

• Antennas
  2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors

t

• Reset
  Reboot/User default reset/Factory reset button

t
• Casing material
  Aluminium housing, plastic panels

t

• Dimensions (W x H x D)
  83 x 25 x 74 mm

t

• Weight
  125 g

t

• Mounting options
  DIN rail, wall mount, flat surface (all require additional kit)

t
• Operating temperature
  -40 °C to 75 °C

t

• Operating humidity
  10% to 90% non-condensing

t

• Ingress Protection Rating
  IP30

t
• Regulatory
  CE, UKCA, ANRT, Kenya, ICASA, FCC, IC, PTCRB, NOM, RCM, KC, Giteki, IMDA, E-mark, CB, UL/CSA Safety, RoHS, REACH, R118

t

• Operator
  AT&T, Verizon, T-Mobile, Uscellular

t
• Standards
  EN 55032:2015 + A11:2020 EN 55035:2017 + A11:2020 EN IEC 61000-3-2:2019 EN 61000-3-3:2013 + A1:2019 EN 301 489-1 V2.2.3 EN 301 489-17 V3.2.4 Final Draft EN 301 489-52 V1.2.0

t

• ESD
  EN 61000-4-2:2009

t

• Radiated Immunity
  EN IEC 61000-4-3:2020

t

• EFT
  EN 61000-4-4:2012

t

• Surge Immunity (AC Mains Power Port)
  EN 61000-4-5:2014 + A1:2017

t

• CS
  EN 61000-4-6:2014

t

• DIP
  EN 61000-4-11:2020

t
• Standards
  EN 300 328 V2.2.2 EN 301 511 V12.5.1 EN 301 908-1 V15.2.1 EN 301 908-2 V13.1.1 EN 301 908-13 V13.2.1
