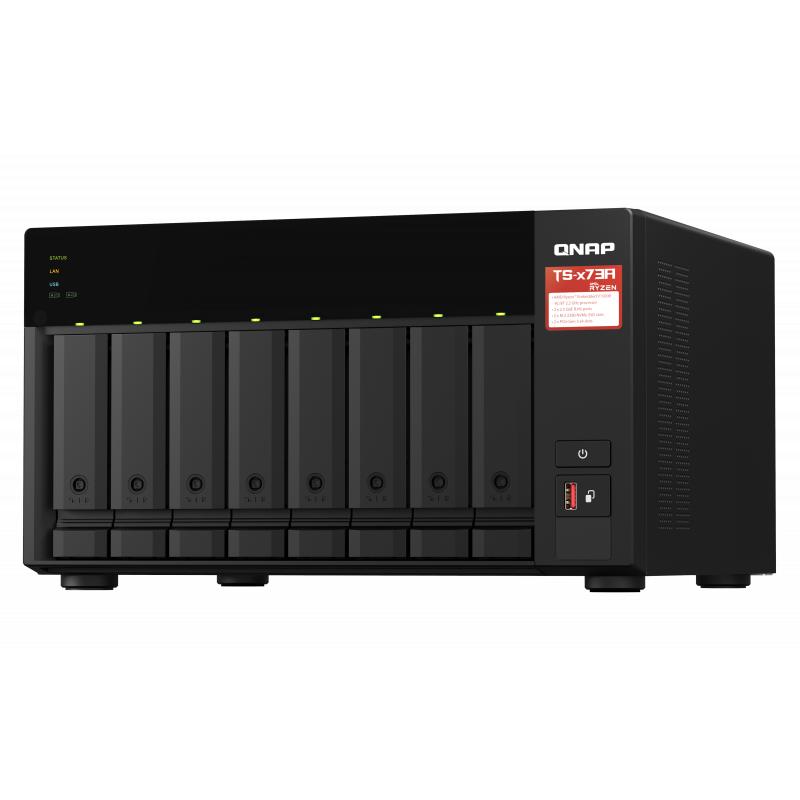

The TS-873A is featuring an AMD Ryzen V1000 series V1500B quad-core processor that delivers great system performance with up to quad-core / 8 threads and Turbo Core up to 2.2 GHz. The TS-873A features two 2.5GbE RJ45 ports and two PCIe Gen 3 slots for you to flexibly deploy 5GbE/10GbE networks. Two M.2 NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization. The TS-873A supports QTS and QuTS hero, allowing users to flexibly switch operating system based on their requirements.
- Both 2.5GbE ports are backwards compatible with 1GbE/ 100MbE speeds. Up to 5 Gbps transfer speeds can be achieved by using port trunking.
- Add extra functionality with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fibre Channel.
- Supports entry-level NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
- Features two M.2 PCIe NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization.
- Host containerized applications and virtual machines with various operating systems.
- Features QTS operating system and supports switching to ZFS-based QuTS hero for greater reliability.
Τεχνικά Χαρακτηριστικά
| CPU | AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor |
| System Memory | 8 GB SO-DIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SO-DIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| M.2 SSD Slot | 2 x M.2 2280 PCIe Gen3 x1 slots |
| PCIe Slot | 2x PCIe Gen 3 x4 |
| USB 3.2 Gen 2 (10Gbps) Port | 3 x Type-A USB 3.2 Gen2 10Gbps , 1 x Type-C USB 3.2 Gen1 5Gbps |
| Form Factor | Tower |
| LED Indicators | Status/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 188.2 × 329.3 × 280.8 mm |
| Weight ( Net ) / (Gross) | 6.76kg / 8.41kg |
| Fan | System fan: 1 x 120mm, CPU fan: 1 x 60mm |
