UBNT-UF-SM-10G-20
Ubiquiti offers a variety of U® Fiber modules to suit your fiber connectivity applications.
For convenient multi-mode connections that extend beyond the 100-meter limitation of Ethernet cabling, use the UF-MM-10G for distances of up to 300 m and speeds of up to 10 Gbps, or use the UF-MM-1G for distances of up to 550 m and speeds of up to 1 Gbps.
Technical Specifications:

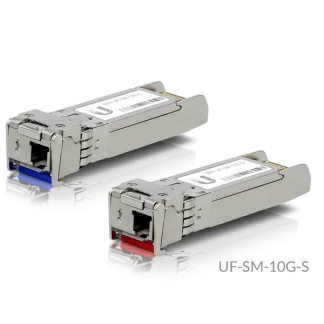

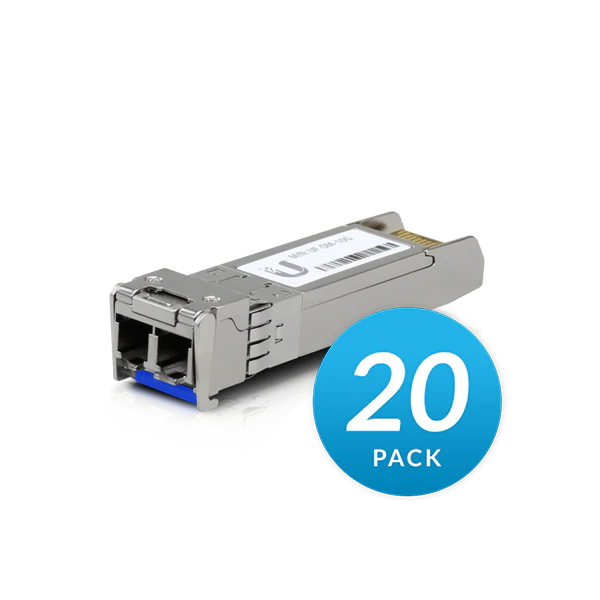

| UF-MM-10G | UF-SM-10G | UF-SM-10G-S | |
|---|---|---|---|
| Supported Media | Multi-Mode Fiber | Single-Mode Fiber | Single-Mode Fiber |
| Connector Type | (2) LC | (2) LC | (1) LC |
| BiDi | N0 | N0 | Yes |
| TX Wavelength | 850nm | 1310nm | Blue: 1270 nm Red: 1330nm |
| RX Wavelength | 850nm | 1310nm | Blue: 1330 nm Red: 1270nm |
| Data Rate | 10 Gbps | 10 Gbps | 10 Gbps |
| Cable Distance | 300 m | 10 km | 10 km |
| Pack Options | 2-Pack, 20-Pack | 2-Pack, 20-Pack | 1-Pair, 10-Pairs |
