Generally, the antenna can cooperate with LTE, GSM, DCS and 3G modems, mobile phones, cellular repeaters, as well as WI-Fi devices..
Distinguishing features:
- t

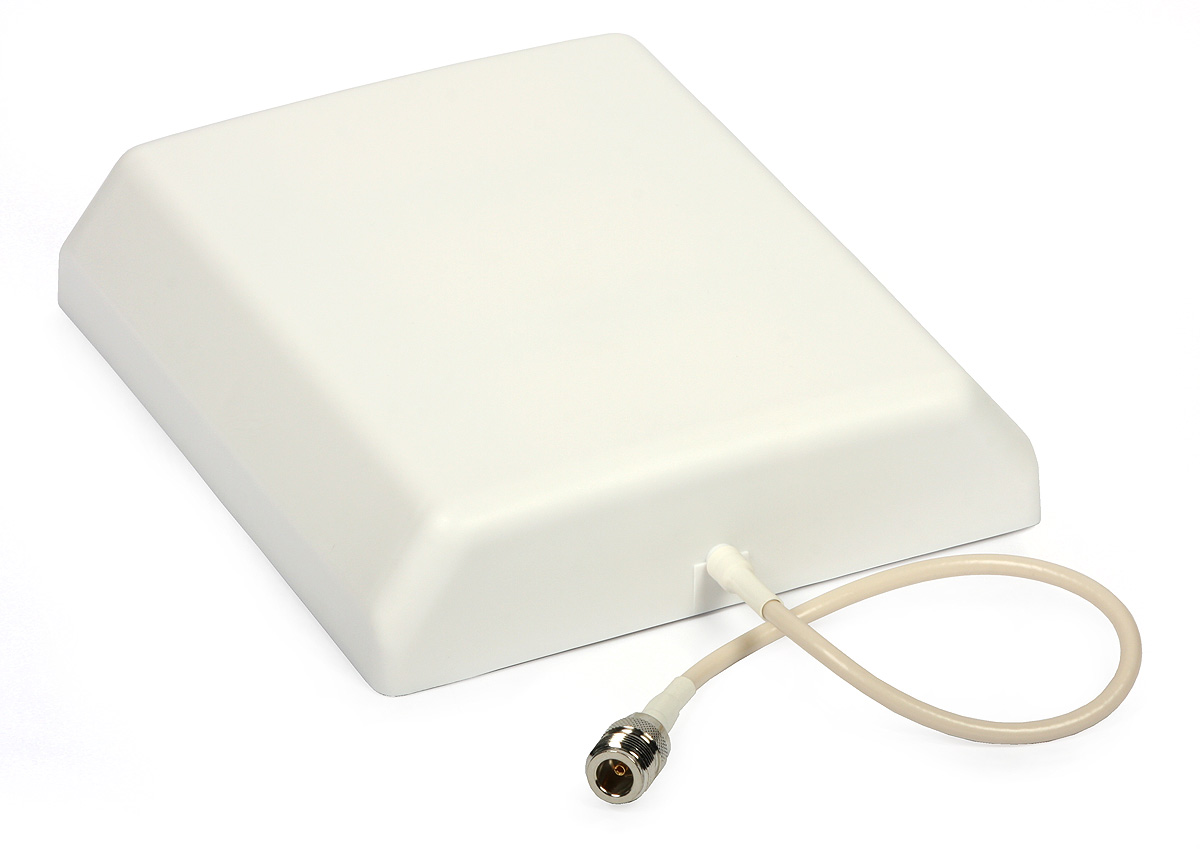

- Panel antenna for outdoor or indoor use
- Broadband: 698-960 MHz, 1700-2700 MHz
- Multipurpose: GSM, DCS, UMTS, WLAN, LTE
- Gain:
- t
- 7 dBi (698-960 MHz),
- 10 dBi (1700-2700 MHz)
t
- Shorted for DC
- Low VSWR: <1.5
- UV resistant and weatherproof ABS plastic cover
t
t
t
t
t
t
Specifications:
| Band [MHz] | 698-960 | 1700-2700 | |
| Gain [dBi] | 7 | 10 | |
| Vertical beamwidth [°] | 55 | 45 | |
| Horizontal beamwidth [°] H | 70 | 60 | |
| VSWR | <1.5 | ||
| Impedance [Ω] | 50 | ||
| Polarization | Vertical | ||
| Maximum admission power [W] | 50 | ||
| Connector | N-f | ||
| Dimensions [mm] | 210×180×44 | ||
| Weight [kg] | 0.4 | ||
