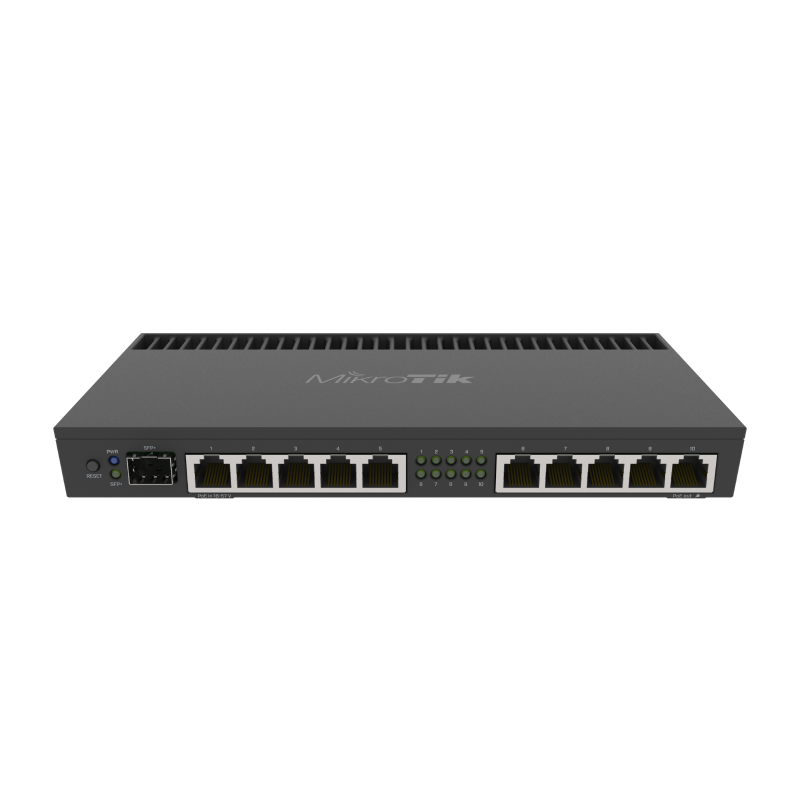

RB4011iGS_RM
RB4011 series – amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!
The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.
RB4011iGS+RM (Ethernet model) includes two rackmount ears that will securely fasten the unit in a standard 1U rack space.
Note: Passive DAC (MikroTik S+DA0001/S+DA0003) are not supported.
Technical Specifications:
| Hardware | |
|---|---|
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | 1.4 GHz |
| Dimensions | 228 x 120 x 30 mm; |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 512 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C .. +70°C |
| Powering | |
| PoE in | Passive PoE |
| PoE out | Passive PoE up to 57V |
| PoE in input Voltage | 18-57 V |
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| Max out per port output (input > 30 V) | 420 mA |
| Max out per port output (input < 30 V) | 600 mA |
| Max total out (A) | 600 mA |
| Max power consumption | 47W |
| Max power consumption without attachments | 19W |
| Ethernet | |
| 10/100/1000 Ethernet ports | 10 |
| Fiber | |
| SFP+ ports | 1 |
| Peripherals | |
| Serial port | RJ45 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
