RTB-QM

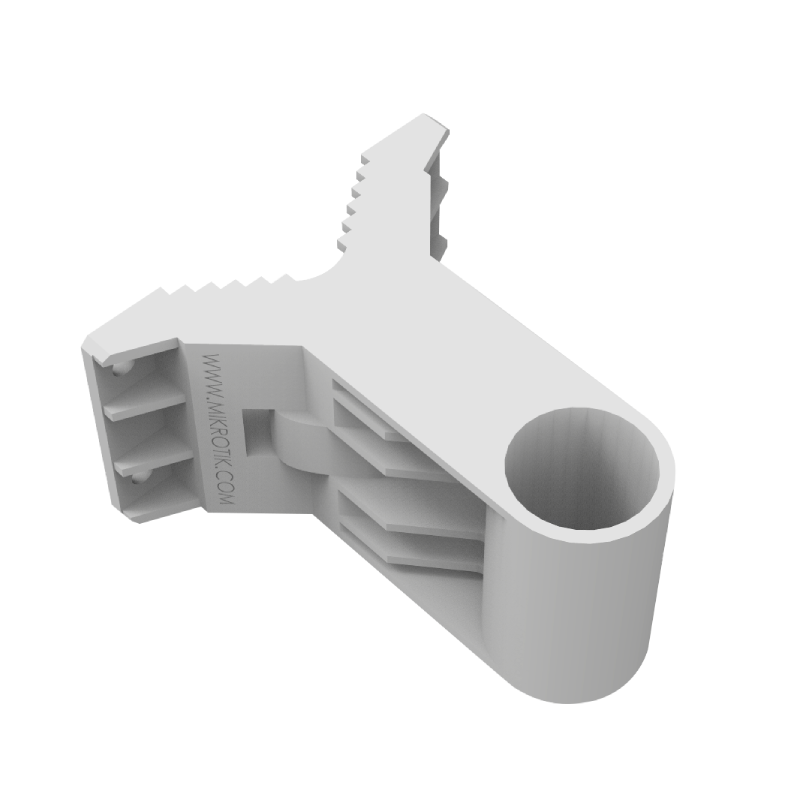

The quickMOUNT is a basic wall mount adapter for small point to point and sector antennas.
You can mount it on the wall or use it as an adapter from large diameter pole to small size antenna mounting clip ensuring reliable fitment. The quickMOUNT gives possibility to turn antenna within 190°.
With the quickMOUNT it is possible to simultaneously mount two SXTs, thus creating a repeater access point or creating large sector coverage.
Technical Specifications:
| Dimensions | 96×107.5×56 mm |
| Tube diameter | 35 mm |
| Max tube diameter to which mount can be | 65 mm |
| Maximum antenna weight | 1.5kg |
| Maximum wind load | 100N |
| Compatible devices | SXT series, Omnitik, 3rd party antennas that are designed to be pole mounted |
| Turn angle for Mikrotik products | 190° |
| Operational temperature range | ±40° C |
| Material | anvilNITE |
