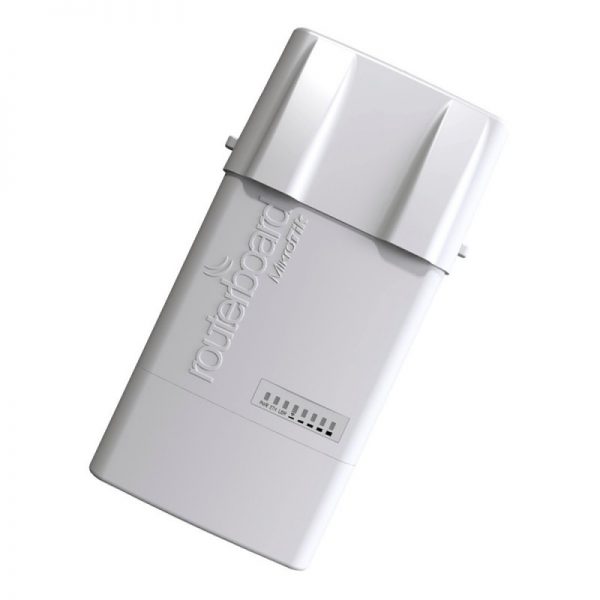

NetBox 5
The NetBox is a dual chain outdoor client device with RP-SMA connectors for antennas, and a cable hood for protection against moisture. This device supports the new 802.11a/n/ac standard for increased wireless speed (866Mbit datarate, and 20/40/80MHz channels).
The case can be opened with one hand, and is protected against the elements. Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.
Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.
New products are backwards compatible- for example, you can replace your 5GHz 802.11an legacy Access Point with new 802.11ac product and your existing customers will still be able to connect to it.
– RB911G-5HPacD-NB-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
– RB911G-5HPacD-NB (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Technical Specifications:
| Manufacturer code | RB911G-5HPacD |
| CPU | QCA9557 720MHz network processor |
| Memory | 128MB DDR onboard memory |
| Ethernet | One Gigabit port with Auto-MDI/X |
| Wireless | QCA9882 5GHz 802.11ac, 2x RP-SMA connectors, Dual chain |
| Connector type | RP-SMA Female (outside thread) |
| Extras | beeper, signal and status LEDs, voltage and temperature sensors |
| Expansion | USB 2.0 port |
| Power options | PoE: 8-30V DC on Ether1 (Non 802.3af). Consumption: 12W at 24V |
| Dimensions | 246x135x50mm; Weight: 390g |
| OS MikroTik | RouterOS, Level4 license |
| Kit includes | RB912 outdoor unit, PoE injector, mounting loop, DIN rail mount, monting ring |
| Wireless transmit/receive specifications | |
| TX/RX at MCS0 | 30dBm / -96dBm |
| TX/RX at MCS7 | 27dBm / -77dBm |
| TX/RX at MCS9 | 22dBm / -72dBm |
| TX/RX at 6Mbit | 31dBm / -96dBm |
| TX/RX at 54Mbit | 27dBm / -81dBm |
| Frequency range | 4920-6100 MHz, Operating range limited by Country Regulations |
