NBE-2AC-13

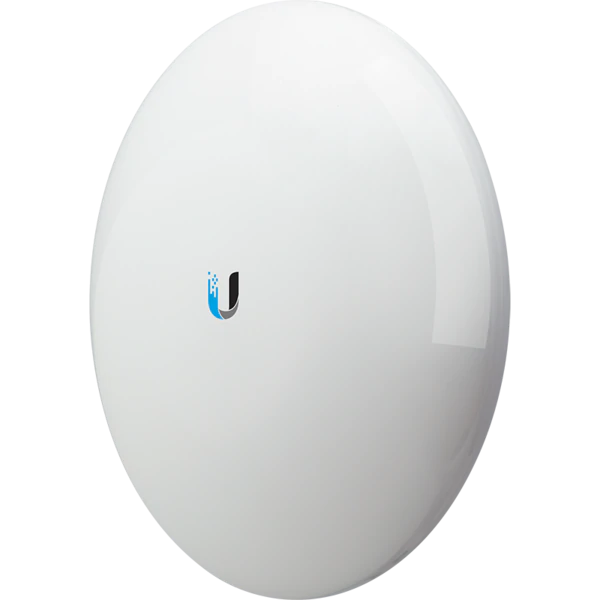

NBE-2AC-13 is the NanoBeam series device (NanoBridge series successor). NanoBeam-2AC-13 is a complete radio system 802.11ac working on 2.4GHz band. Due to improved construction it focuses power of radio system in narrower beam and prevents interference of other devices and networks – this is especially important in areas where there is a high noisiness. The device’s antenna have a 13dBi gain. The device is equipped in an integrated radio module with up to 27dBm power and one Ethernet 10/100/1000mbps port. It allows to obtain a real throughput of TCP/IP up to 450Mbps. The device is powered by passive Gigabit PoE (power adapter included).
The device is compatible with the AirMax protocol, which allows to eliminate problems of hidden radio stations by allocating time slots for devices. It allows to use maximum throughput even with dozens of client stations connected to the Access Point. Additionally included AirControl application allows to central management of up to 100 devices.
By buying UBNT-NBE-2AC-13 receives complete device with mount and power adapter.
Features:
- Compact design – radio and antenna
- Quick and easy installation – the pole mounting bracket is included
- Aesthetics – The NanoBeam ac is small enough to blend discreetly into the background at a customer’s location.
- PoE
Technical Specifications:
| NBE-2AC-13 | |
|---|---|
| Dimensions (Mount Included) | 189 x 189 x 125 mm (7.44 x 7.44 x 4.92″) |
| Weight (Mount Included) | 530 g (1.17 lb) |
| Gain | 13 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port Wi-Fi for Management |
| Processor Specs | Atheros MIPS 74Kc, 533 MHz |
| Memory | 64 MB DDR2 |
| LEDs | Power, Ethernet, (4) Signal Strength |
| Signal Strenght LEDs | Software-Adjustable to Correspond to Custom RSSI Levels |
| Max. VSWR | 1.5:1 |
| Channel Sizes PtP Mode PtMP Mode |
10/20/40MHz 10/20/40 MHz |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| Max. Power Consumption | 7.5W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Wind Loading | 45.4 N @ 200 km/h (10.2 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Certifications | CE, FCC, IC |
| Mounting | Pole-Mount (Kit Included), Wall-Mount |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| RoHS Compliance | Yes |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
| Operating Frequency MHz | |
| Worldwide | 2412 – 2472 |
| USA | 2412 – 2462 |
| Management Radio (MHz) | |
| Worldwide | 5150 – 5250 |
| USA | U-NII-3:5725 – 5850 |
