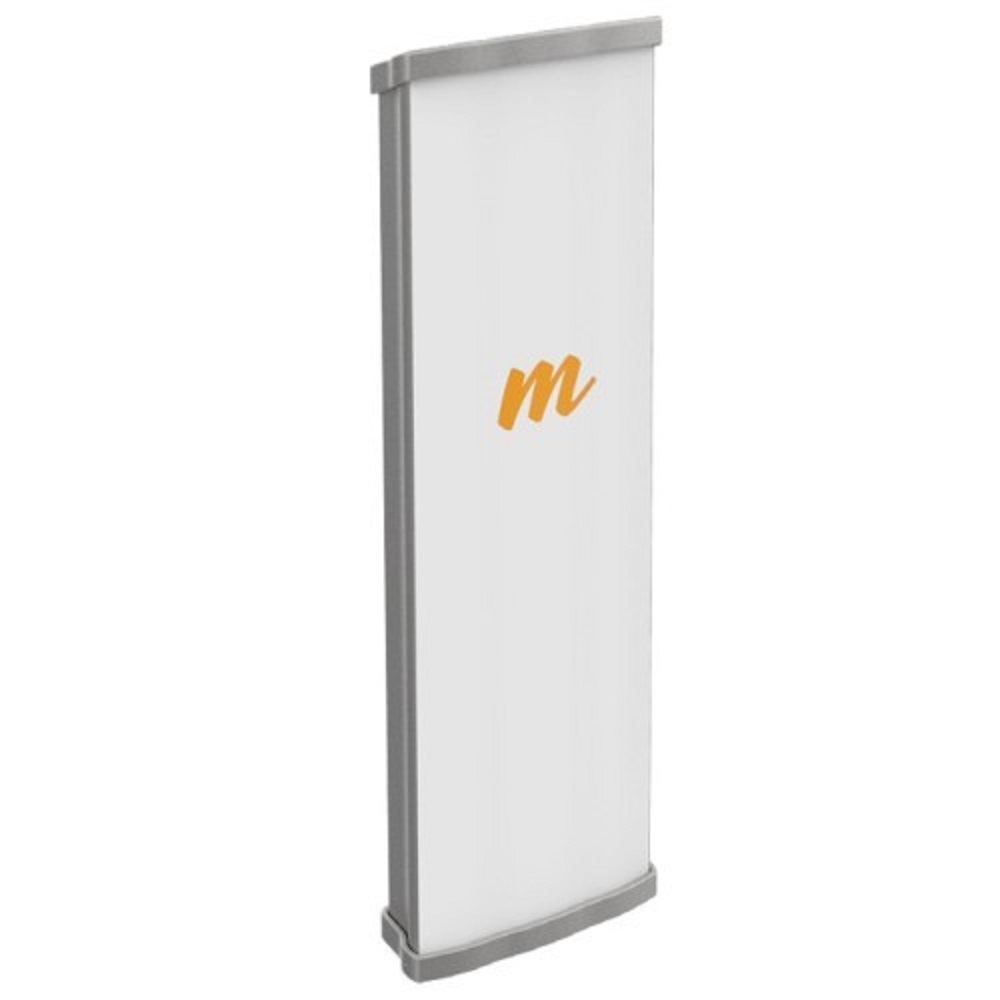

Mimosa N5-45×2, 4.9-6.4GHz, 19dBi, 45 degree Sector Antenna, 2 Port

Περιγραφή

Industry’s Highest Performing Sector Antennas The Mimosa N5-45 antennas, deliver all the gain and ground coverage of a sector antenna, with the amazing front-to-back and sidelobe performance of a horn. These 4.9-6.4 GHz, 45-degree sector antennas are custom-engineered for a variety of multipoint applications. Disruptive Sector Antenna All the beamforming gain and ground coverage of a sector. All the sidelobe rejection of a horn. APPLICATIONS

t
• High-Speed Internet Access

t

• Public Safety Networks

t

• Fixed 5G Wireless Deployments

t

• UHD Security Camera Connectivity

  No Sidelobes Using state-of-the-art RF design, the N5-45 antennas are custom-engineered to deliver a high-gain, 42º half-power beamwidth with non-existent side lobes. Industry’s Highest Front-to-Back Ratio With an front-to-back ratio of 43 dB, the N5-45 antennas utilize metalized end-caps and a precision engineered backplate extrusion to improve noise rejection. Beamformed High Gain The N5-45×4, paired exclusively with Mimosa’s 4×4 MIMO A5c access point, achieves +3 dB of beamforming gain in both downlink and uplink. Optimized Ground Coverage   Supports Third-Party Access Points Improve performance and noise rejection by using the N5-45×2 with any 2×2 access point. SPECS

t
• Gain:19 dBi

t

• Polarization: Slant 45º

t

• Azimuth Beamwidth (4 dB): 45º

t

• Azimuth Beamwidth (3 dB): 42º

t

• Elevation Beamwidth (3 dB): 9º

t

• Electrical Downtilt: 2º

t

• Front-to-Back Ratio (min): 43 dB

t

• Cross-Polar Isolation: > 30 dB

t

• Port-to-Port Isolation: >10 dB

t

• Impedance: 50 Ω

t

• Max Input Power: 30 dBm

t

• RF Connectors: 2 N-Type female

t

• Weight: 2.81 kg (6.2 lbs)
