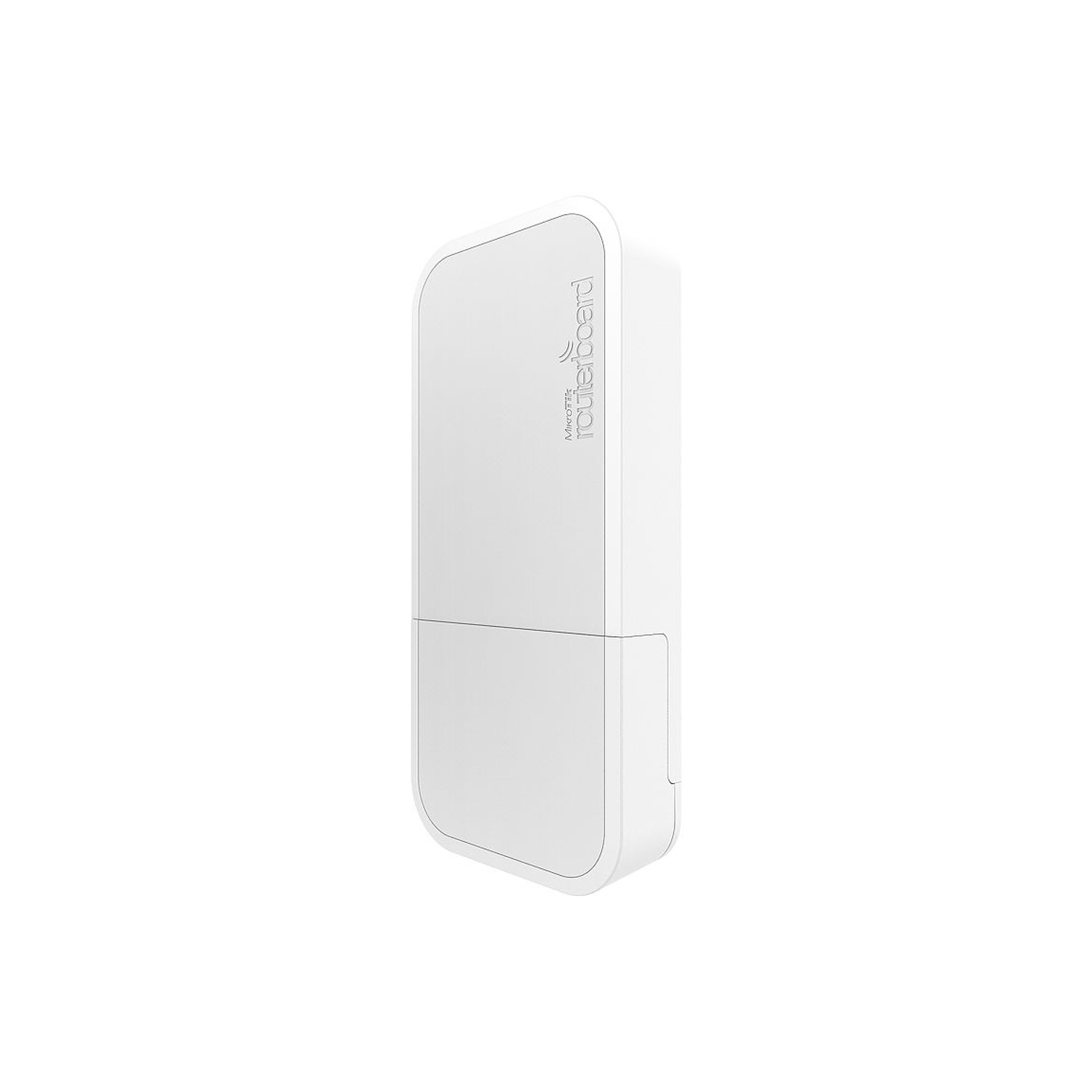

MikroTik RBwAPR-2nD&R11e-LoRa8 wAP LoRa8 kit

Περιγραφή

wAP LoRa8 – an out-of-the-box solution to use LoRaWAN gateway. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.

This particular wAP form-factor has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions.

You can use the optional internal 2 dBi antenna or attach an external antenna. For extra network coverage we suggest adding MikroTik LoRa Antenna kit.

wAP LoRa8 kit supports 863-870 MHz frequency, used in European Union, Russia, India etc.

Functional and non-intrusive design, astonishing durability and great value – that is the wAP LoRa8 kit, the long-awaited LoRa solution for LoRa enthusiasts of any level.

Specifications

Details
Product code	RBwAPR-2nD&R11e-LoRa8
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
License level	4
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-40°C to 60°C

Powering

Details
PoE in	Passive PoE
PoE in input Voltage	9-30 V
Number of DC inputs	3 (PoE-IN, Automotive, DC jack)
DC jack input Voltage	9-30 V
Automotive input Voltage	9-30 V
Max power consumption	7 W

Wireless

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports	1

Peripherals

Details
Number of SIM slots	1 Modem (Mini SIM)
MiniPCI-e slots	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Details
Certification	CE/RED, FCC, IC, EAC, ROHS

t
• 24V 0.8A power adapter

t

• PoE injector

t

• 0.35m 4pin Automotive adapter cable

t

• wAP desktop stand wAP mount bracket

t

• Metal ring (one)
