Discontinued

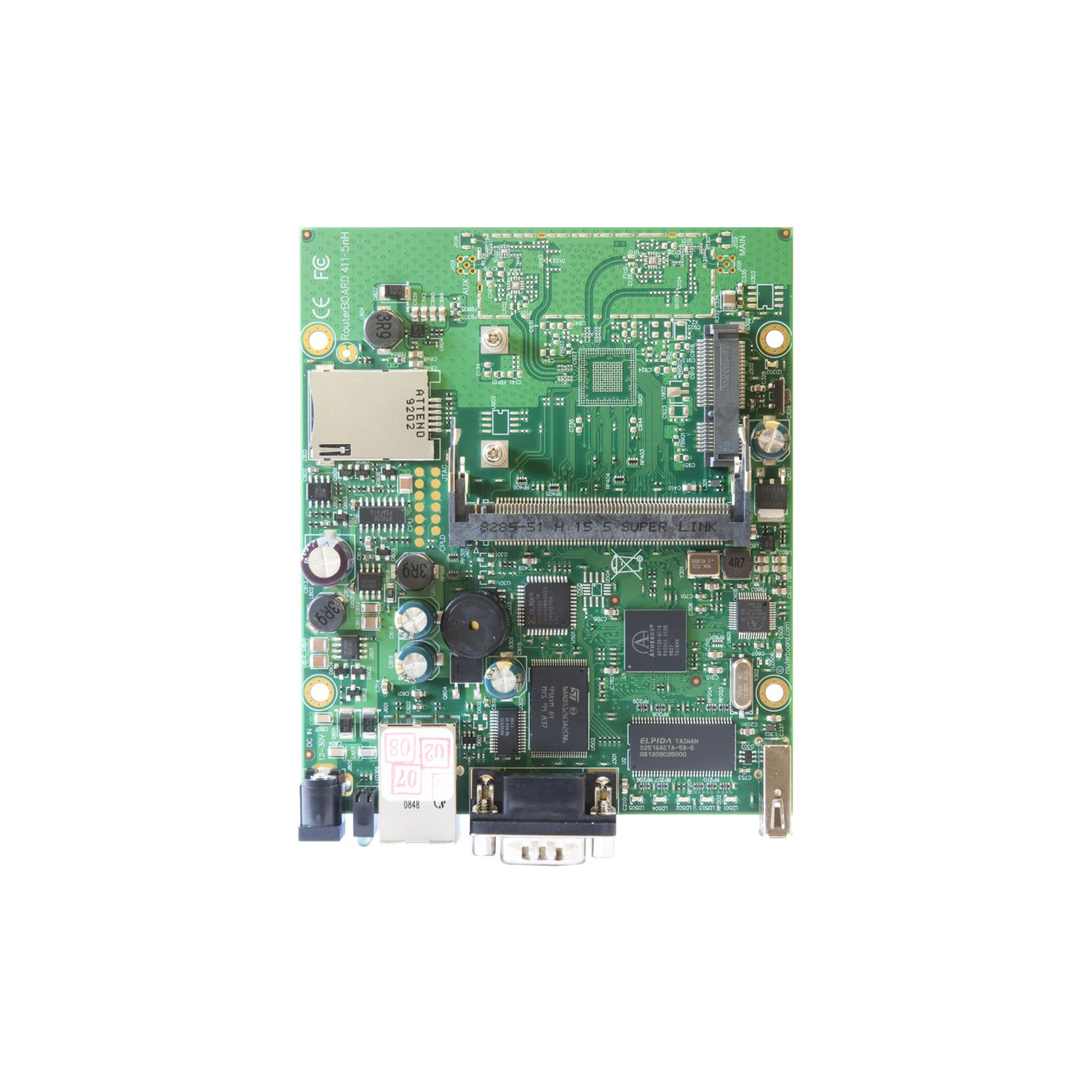

The RB411AR has an integrated 802.11b/g wireless card with MMCX conenctor. Not only you have a readymade wireless solution, but also you have a spare miniPCI card slot for your choice of another wireless card! With this device you can connect to a remote AP and serve your local area with internet both at the same time! It has the same familiar footprint as the other RB411 series devices, which means you can mount it into any supported outdoor enclosure, and upgrading to this model will take just minutes.
Specifications
| Details | |
|---|---|
| Product code | RB411AR |
| Architecture | MIPSBE |
| CPU | AR7161 |
| CPU core count | 1 |
| CPU nominal frequency | 300 MHz |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 10-28 V |
| Max power consumption | 14 W |
Wireless
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 54 Mbit/s |
| Wireless 2.4 GHz number of chains | 1 |
| Wireless 2.4 GHz standards | 802.11b/g |
| Wireless 2.4 GHz chip model | AR2417 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| MiniPCI slots | 1 |
| Serial port | RS232 |
Other
| Details | |
|---|---|
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | FCC |
