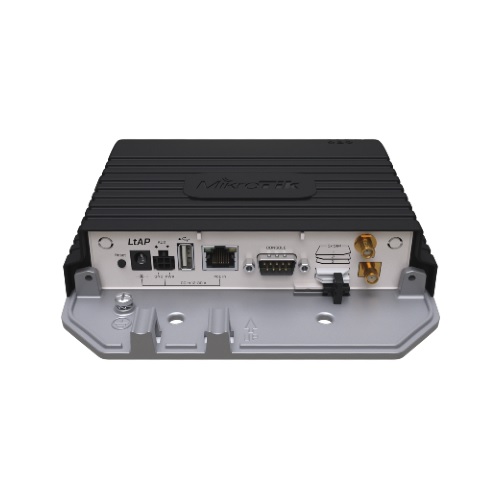

A rugged all-in-one device for IoT connectivity, ideal for industrial or public use. Perfect for transportation projects or logistics, the LtAP LR8G LTE6 Kit combines: LoRa® connectivity, LTE, and GPS for maximum versatility Dual-chain 2.4 GHz WiFi for added flexibility A tough, robust enclosure built for industrial and mobile setups Mini SIM slot and a built-in modern LTE6 modem for fast and responsive mobile connectivity Enhanced 868MHz Rx sensitivity for effective long-range communication Many powering options, including automotive SMA female connectors for external antennas The Things Network Our products for LoRa® are ready to work with “The Things Network” – the famous open source infrastructure that provides free LoRa® network coverage and has tons of apps for your needs. With the help of “The Things Network” you can get started with the Internet-of-things within a day. And it is easily upgradable to enterprise-grade network “The Things Industries”. The setup is so easy – anyone can learn it. No need to reinvent the wheel – join “The Things Network” to save time and energy with smart solutions!
Specifications
| Details |
| Product code |
LtAP-2HnD&FG621-EA&LR8G |
| Architecture |
MMIPS |
| CPU |
MT7621AT |
| CPU core count |
2 |
| CPU nominal frequency |
880 MHz |
| CPU Threads count |
4 |
| RouterOS license |
4 |
| Operating System |
RouterOS v7 |
| Size of RAM |
128 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 200’000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
| IPsec hardware acceleration |
Yes |
Powering
| Details |
| Number of DC inputs |
3 (PoE-IN, Automotive, DC jack) |
| DC jack input Voltage |
12-30 V |
| Automotive input Voltage |
12-27 V |
| Max power consumption |
24 W |
| Max power consumption without attachments |
12 W |
| PoE in |
Passive PoE |
| Cooling type |
Passive |
| PoE in input Voltage |
12-30 V |
Mobile
| Details |
| 3G Category |
R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
| 3G bands |
1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category |
6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
| MIMO DL |
2×2 |
| MIMO UL |
1×1 |
| LTE FDD bands |
1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) |
| LTE TDD bands |
38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
| TAC |
86335904 |
Wireless specifications
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2.5 |
| Wireless 2.4 GHz chip model |
AR9342 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
1 |
Peripherals
| Details |
| Number of SIM slots |
3 Modem (Mini SIM) |
| MiniPCI-e slots |
2 |
| Serial console port |
RS232 |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
| GNSS standards |
GPS |
Certification & Approvals
| Details |
| Certification |
CE, EAC, ROHS |
| IP |
X0 |
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s |
25 |
-100 |
| 11MBit/s |
25 |
-94 |
| 6MBit/s |
26 |
-96 |
| 54MBit/s |
23 |
-78 |
| MCS0 |
26 |
-96 |
| MCS7 |
22 |
-73 |
Included parts
t
24V 1.2A power adapter t
K-67 fastening set t
0.35m 4pin Automotive adapter cable
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
