Περιγραφή
- t
- Full Gigabit Ports: 16× Gigabit PoE+ ports, 2 × Gigabit non-PoE ports, and 2 × Gigabit SFP slots
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 192 W for all PoE ports.* Working with IEEE 802.3af/at compliant PDs
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**
- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Priority Mode: Guarantees the quality of sensitive applications like video monitor
- Plug and Play: No configuration or central management required
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
t
t
t
t
t
t
| Category | Specification |
|---|---|

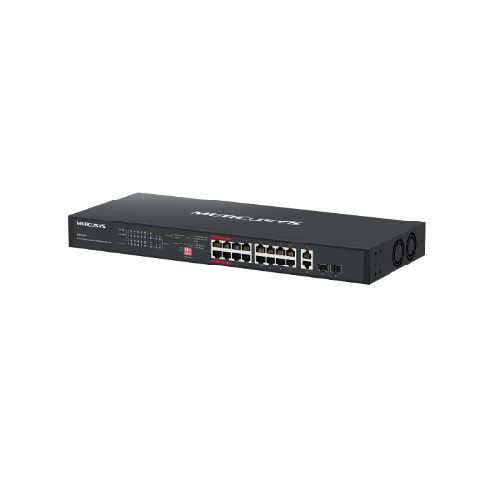

| Model | MS120GP |
| Standards & Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3z, 802.3af, 802.3at |
| Interfaces | 16× 10/100/1000 Mbps PoE+ RJ45 ports, 2× 10/100/1000 Mbps RJ45 ports, 2× Gigabit SFP slots |
| PoE Standard | IEEE 802.3af/at compliant |
| PoE Ports | Ports 1–16 |
| Max PoE per Port | 30 W |
| Total PoE Budget | 192 W |
| Transmission Medium | 10BASE-T: Cat 3+ (≤100 m) |
| 100BASE-TX: Cat 5+ (≤100 m) | |
| 1000BASE-T: Cat 5e+ (≤100 m) | |
| 1000BASE-X: MMF, SMF | |
| Switching Capacity | 40 Gbps |
| MAC Address Table | 8K |
| Forwarding Mode | Store-and-Forward |
| Auto Negotiation | Yes |
| Auto MDI/MDIX | Yes |
| Extend Mode | Up to 250 m PoE transmission |
| Isolation Mode | Yes |
| Priority Ports | Ports 1–4 |
| PoE Auto Recovery | Yes |
| Flow Control | IEEE 802.3x |
| Fans | 2 |
| LED Indicators | Power, Link/Act, PoE Status, PoE Max |
| Dimensions | 440 × 180 × 44 mm |
| Max Power Consumption | 17.25 W (no PD), 219.05 W (full PoE load) |
| Max Heat Dissipation | ~745–772 BTU/h (full PoE load) |
| Certifications | CE, RoHS |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% non-condensing |
| Storage Humidity | 5%–90% non-condensing |
| Package Contents | Switch, Power cord, Installation guide, Mounting brackets |
