Product description

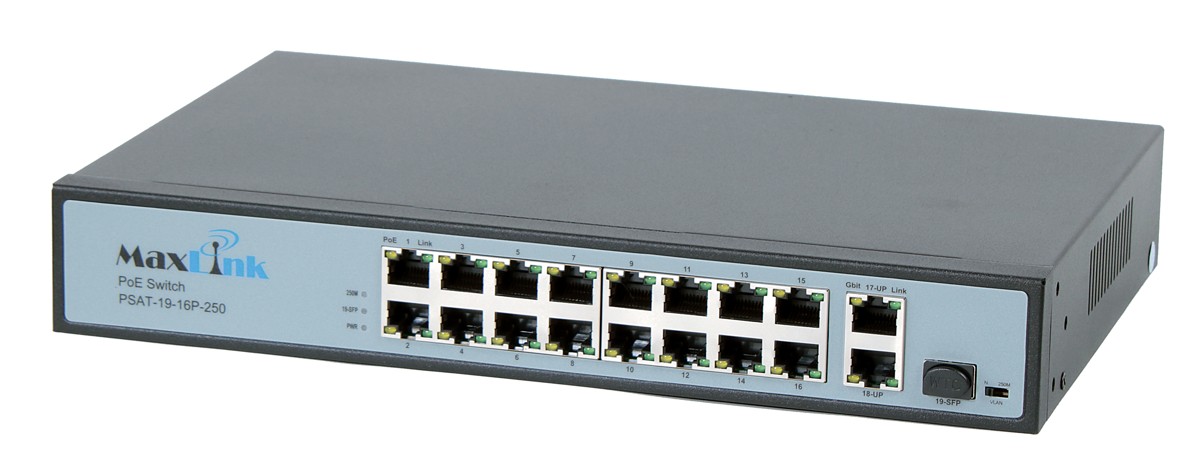

PSAT-19-16P-250 is 19 port 10/100Mbps unmanaged switch with 16 PoE ports. Switch automatically detecting and powering 802.3af/at (up to 30W/port) devices on 1 – 16 ports. 17th and 18th ports are normal ethernet ports without PoE functionality as uplink ports. Total PoE budget for devices is 150W with external power source.
manual mode switch
- t
- Normal “N”: The switch supplies the device at a distance of no more than 100m. The port-to-port throughput is 10/100Mbps.
- 250m : Long Range Mode. Switch powering devices up to 250m with a reduced 10Mbps throughput per port.
t
With this switch you can power wide range of IP cameras, VoIP telephones, WiFi AP and other devices supporting 802.3af/at PoE standard.
Package contains
- t
- Device
- Rackmount ears to 19″ rack
- Power cord
t
t
Specifications
Physical characteristics
Design:Desktop
Fans:(2) 40 x 40 mm
Chassis design:Metal
Buttons:Normal / 250m
Operating temperature [°C]:0 up to 40
Height [mm]:45
Depth [mm]:220
Width [mm]:285
Connectors and Interfaces
LAN speed:(16) 10/100Mbps + (3) 10/100/1000Mbps
SFP/SFP+/QSFP+ speed:(1) 1000Mbps
Power
Max. power consumption [W]:150
Power type:Mains power (230V)
PoE type:Only PoE-Out
PoE-Out standards:802.3af, 802.3at
PoE Out ports:16
PoE budget [W]:150
Long range PoE – up to 250m:Yes
Power via connector/terminal:230V AC
General
MAC address table:8000
