IH-G08-F8688-V1, Each interline product is designed to perform in a variety of environments. Implementing the antenna system can greatly improve coverage and performance.To optimize the overall performance of a wireless LAN, it is important to understand how to maximize radio coverage with the appropriate antenna selection and placement. An antenna system comprises numerous components, including the antenna, mounting hardware, connectors, antenna cabling, and in somecases, a lightning arrestor.
Horizon 870 is a narrowband antenna, dedicated to the 868 MHz band. It has a built-in bandpass filter. This limits interference from other transmitters working in neighboring radio bands, and in particular the GSM 900 / LTE 800MHz system, which transmits with high output powers.
All frequencies outside of the antenna work band are shorted to ground.
Designed for systems – IoT M2M (Machine to Machine) Lora, Sigfox, XBee, RFID. Z-WAVE

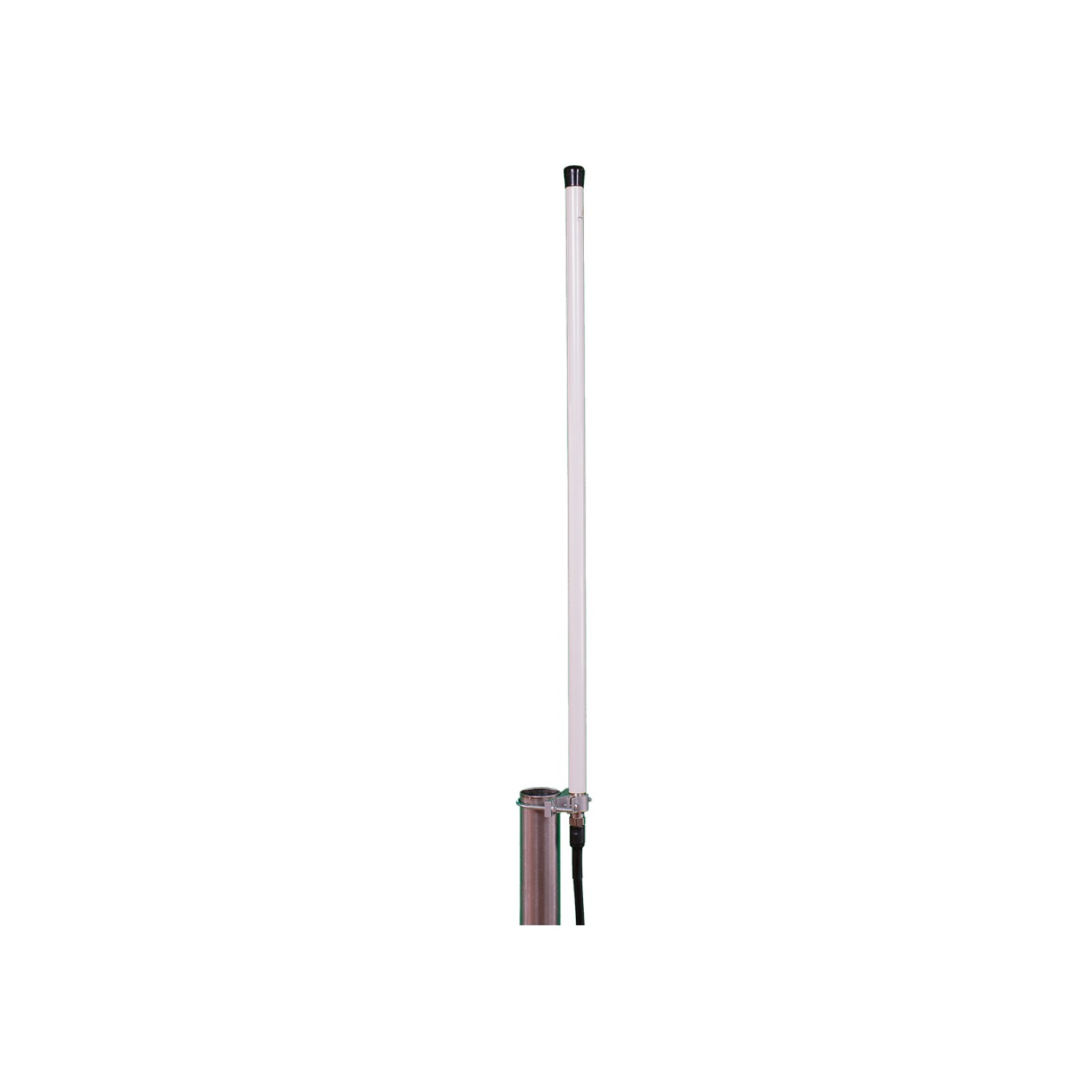

HORIZON 870MHz is a carefully designed and built omni-directional antenna operating in the unlicensed 867-870MHz band.
Typical applications are monitoring and digital transmission of small amounts of data.
Compared to the previous model of this antenna, the design of the radiator has changed.
Silver-plated radiating elements were used (increasing the efficiency of the antenna).
The weight of the new antenna is two times smaller!
Low own capacity – no digital signal blur
The antenna heater operates “purely resistive” – no additional matching circuits that reduce the antenna’s efficiency.
“Selective” narrowband antenna – high attenuation of out-of-band signals (GSM, LTE and other nearby)
- t
- Energy (wind, solar panels),
- Home intelligence
- Internet of things
- Irrigation,
- telemetry,
- RF sensor networks
- tracking people and objects
- geolocation,
- employee safety.
- buy
t
t
t
t
t
t
t
t
t
Key benefits
- t
- Solid casing
- Silver-plated elements of the radiator
t
IH-G08-F8688-V1 Specifications
| electrical | |
| Frequency (min) | 860MHz |
| Frequency (max) | 880MHz |
| Gain | 8dBi |
| VSWR (max) | 2.00:1 |
| Polarization | Vertical |
| Half Power Beam Width (-3dB) – horizontal | 360° |
| Half Power Beam Width (-3dB) – vertical | 15° |
| XPD (Cross Polarization Discrimination) | >20dB |
| Max Composite Power | 50W |
| DC Ground | yes |
| Impedance | 50ohm |
| mechanical | |
| Connector | N female |
| Mounting Diameter | ø 38…51mm |
| Dimensions (excl. mount) | 800×26 |
| Weight (incl. mount) | 0.44kg |
| enviromental | |
| Enviroment | Outdoor |
| Windload | 160km/h |
| IP Rating | IP67 |
| Temperature | -40°C … 80°C |
