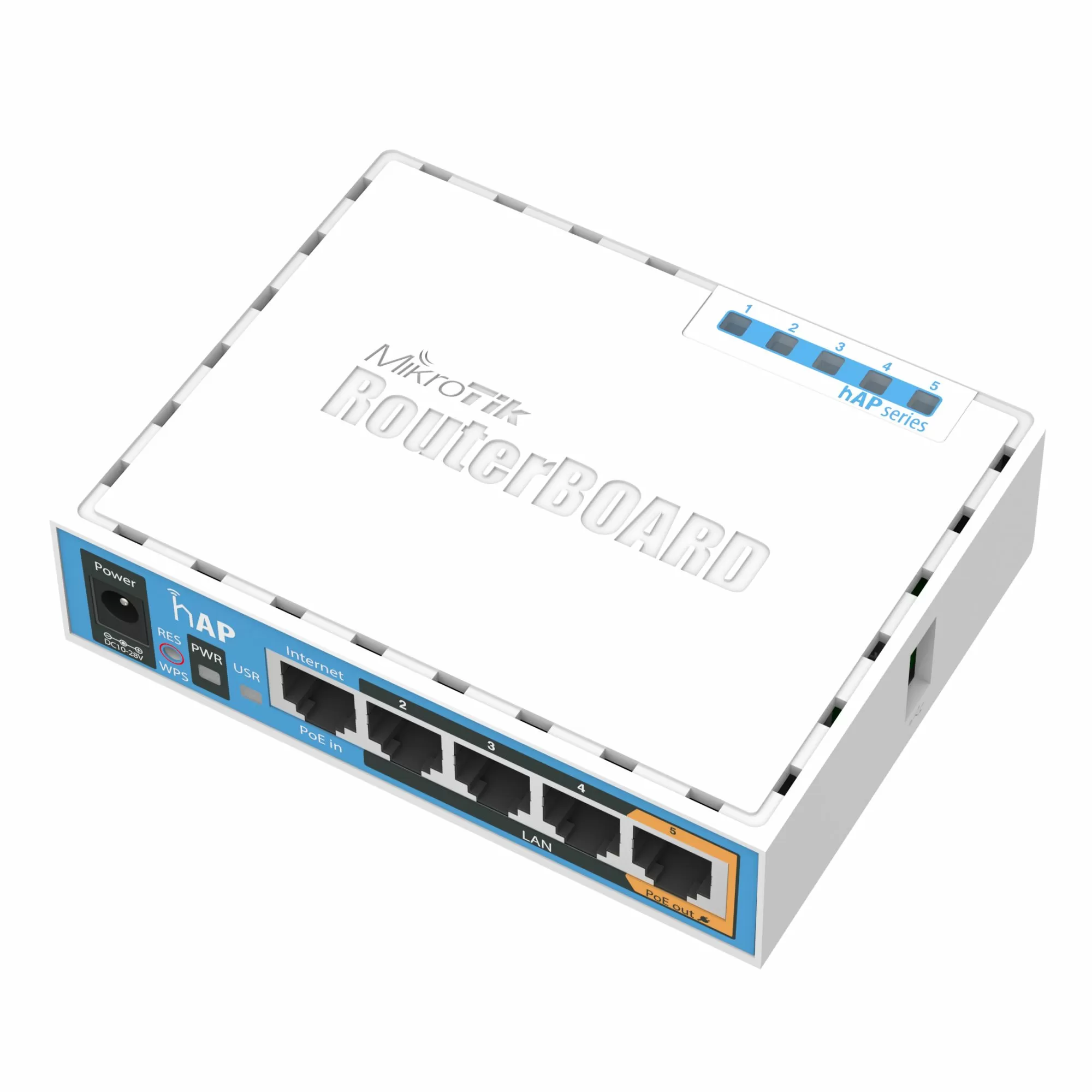

hAP (RB951Ui-2nD)
This small home access point is the perfect device for homes or small offices where all you need is a wireless AP and a few wired devices connected. Based on our popular RB951-2n, the new hAP is an improvement in many areas.
The device can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included.
hAP provides PoE output function for port #5 – it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
The hAP is preconfigured, so all you need to do, is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.
Technical Specifications:
| Features RB951Ui-2nD | (USB, power injector, USB, 2GHz, 802.11n, dual chain) |
| CPU | Atheros AR9344 650MHz CPU |
| Memory | 64MB DDR2 onboard memory |
| Ethernet | Five independent 10/100 Ethernet ports |
| LEDs | Power, NAND activity, 5 Ethernet LEDs, wireless activity LED |
| Power in | PoE: 8-30V DC on Ether1 (Non 802.3af). Jack: 8-30V DC |
| Power out | PoE passive on port 5, same voltage as input. |
| Dimensions | 113×138×29mm |
| Weight | Without packaging and PSU: 232g, full weight in package: 420g |
| Power consumption | Up to 7W |
| Operating Temp | -20°C .. +50°C |
| Operating System | MikroTik RouterOS, Level4 license |
| Package contains | RouterBOARD in a plastic case, power adapter |
| Antennas | 2×2 MIMO PIF antennas |
| RX sensitivity | 802.11g: -96dBm @ 6Mbit/s to -80dBm @ 54Mbit/s 802.11n: -96dBm @ MCS0 to -78dBm @ MCS7 |
| TX power | 802.11g: 30dBm @ 6Mbps to 25dBm @ 54 Mbps 802.11n: 30dBm @ MCS0 to 23dBm @ MCS7 |
| Modulations | OFDM: BPSK, QPSK, 16 QAM, 64QAM; DSSS: DBPSK, DQPSK, CCK |
