Περιγραφή

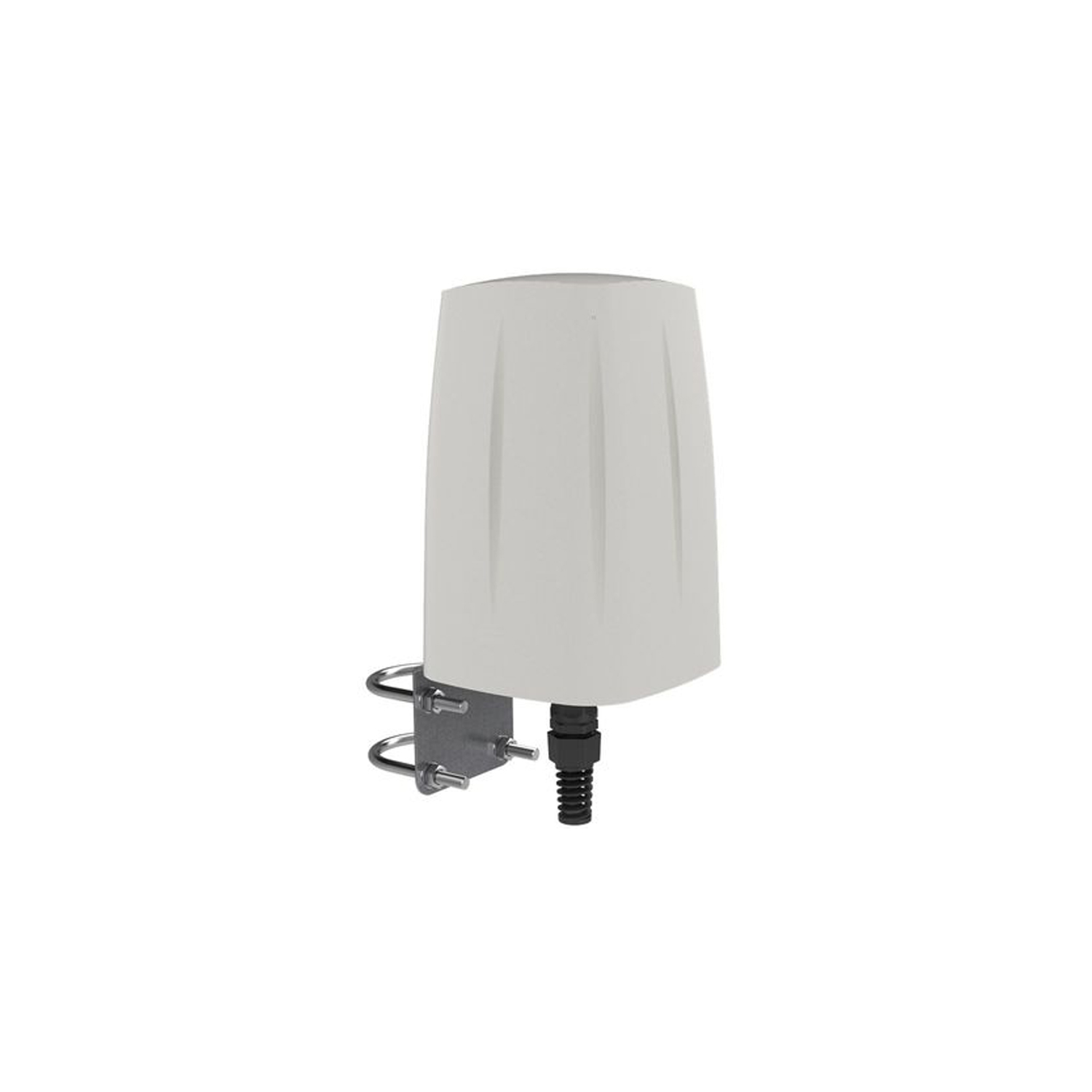

ELTESpot is compact outdoor solution of industrial router dedicated for professional applications. Inside smooth waterproof enclosure there are two LTE omnidirectional antennas & one 2.4/5GHz concurrent dual band Wi-Fi omnidirectional antenna integrated with Teltonika RUT240. From the enclosure comes out only one RJ45 connector which is also power source of the radio.
Product specification
Software features :OpenVPN PPTP L2TP IPSec GRE Tunnel Bootloader WebUI SMS Control Wi-Fi Hotspot Ping Reboot Web Filter SNMP Configuration profiles Dynamic DNS Periodic Reboot Mobile Quota Control NTP RMS compatibility
Hardware features :Plug & Play Compact outdoor solution for any water condition Power source directly from ethernet cable 2 omnidirectional LTE & one Wi-Fi antennas hidden in one elegant enclosure SIM card holder 1x external LAN port Pole or Wall stainless steel mounting
LTE :LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 LTE CAT4 up to 150 Mbps DL LTE CAT4 up to 50 Mbps UP Class 3 (23dBm+/-2dB) for LTE FDD Class 3 (23dBm+/-2dB) for LTE TDD LTE Antenna 0.694-0.960GHz/1.7-2.2GHz/2.2-2.7 GHz working frequencies LTE Antenna Gain 2dBi (0,694-0.960GHz & 1.7-2.2 GHz), 4 dBi(2.2-2.7GHz) LTE Antenna Beamwidth 360°/35° +/-5° LTE Antenna polarization vertical LTE Antenna VSWR <1.70, max <2.00 ( 0.694-0.960GHz), <1.60, max <2.00 (1.7-2.2GHz & 2.2-2.7GHz)
UMTS/DC-HSPA+ :850/900/2100 MHz DC-HSPA+ mode: Max 42Mbps (DL) Max 5.76Mbps (UL) UMTS mode: 384 kbps DL, 384 kbps UL TD-SCDMA: Max 4.2Mbps (DL) Max 2.2Mbps (UL) Power Class 3 (24dBm +1/-3dB) for UMTS bands Class 3 (24dBm+1/-3dB) for TD-SCDMA Uses LTE antenna
GSM/GPRS/EDGE :900/1800 Mhz GPRS/EDGE Multi-slot Class 12 Power Class E2 (27dBm ±3dB) for GSM 900 Power Class E2 (26dBm +3/-4dB) for DCS 1800 Power Class 4 (33dBm ±2dB) for GSM 900 Power Class 1 (30dBm ±2dB) for DCS 1800 Uses LTE antenna
Wi-Fi :IEEE 802.11b/g/n WiFi standards AP and STA modes 64/128-bit WEP, WPA, WPA2, WPA&WPA2 encryption methods 2.401-2.483 GHz WiFi frequency range* 20dBm max WiFi TX power SSID stealth mode and access control based on MAC address Wi-Fi antenna 2.3-2.5 GHz & 4.7-6 GHz concurrent dual band** Wi-Fi antenna gain 6dBi(2.3-2.5GHz) & 7dBi(4.7-6.0GHz) Wi-Fi antenna beamwidth 360°/25° +/-5° Wi-Fi antenna polarization vertical Wi-Fi antenna VSWR <1.70, max <2.00* Supported frequency bands are dependent on geographical location and may not be available in all markets. ** Antenna is prepared to work in both Wi-Fi frequencies 2.4GHz & 5 Ghz
Ethernet :IEEE 802.3, IEEE 802.3u standards 1 x LAN 10/100Mbps Ethernet port 1 x WAN 10/100Mbps Ethernet port Supports auto MDI/MDIX
Electrical, Mechanical & Environmental :Dimensions (W x D x H) 16 cm x 16 cm x 24 cm Weight 1.3 kg Enclosure materia ABS Connectors 1x RJ45 Power consumption < 5W Operating temperature -40 °C to 75 °C Operating humidity 10% to 90% Non-condensing
