Περιγραφή

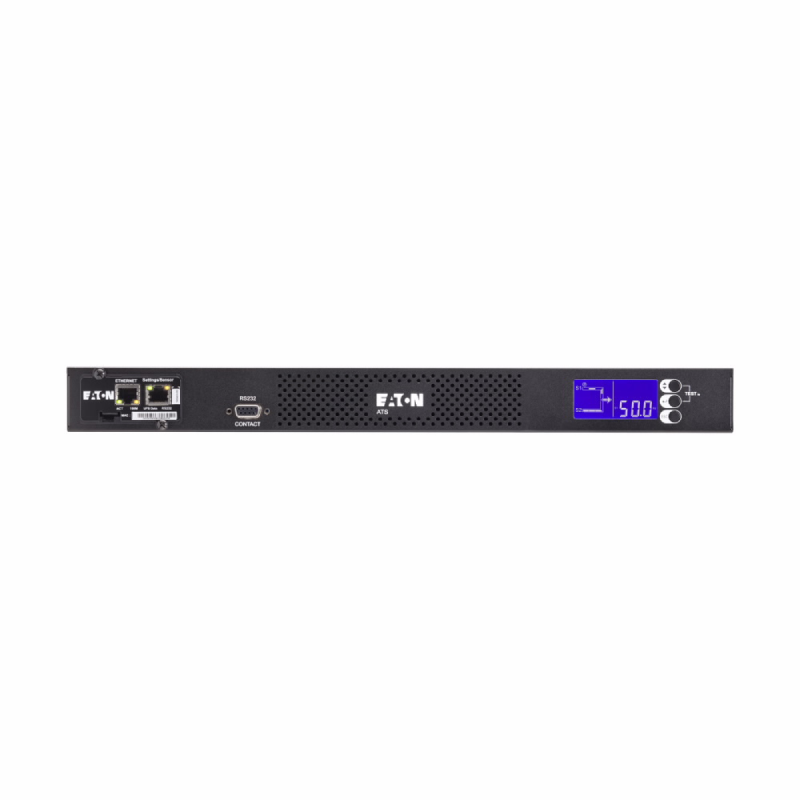

Eaton ATS rack PDU, Netpack, 1U, Inputs (2) C20, 3.84 kW max, 16A, 200-240V, Outlets 8XC13:1XC19
Technical Specifications:
PRODUCT NAME
Eaton ATS rack PDU
CATALOG NUMBER
EATS16N
UPC
743172079411
PRODUCT LENGTH/DEPTH
430 mm
PRODUCT HEIGHT
43 mm
PRODUCT WIDTH
250 mm
PRODUCT WEIGHT
3.5 kg
WARRANTY
2 year
COMPLIANCES
CE Marked
CERTIFICATIONS
CE
PRODUCT SPECIFICATIONS
NUMBER OF OUTPUTS C13
8
PHASE
Single-phase
ELECTRICAL CONNECTION
Connecting cord with plug
MOUNTING DIMENSION (STANDARDIZED)
482.6 mm (19 inch)
WATTAGE
3.84 kW max
FORM FACTOR
1U
MOUNTING DIRECTION
Horizontal
NUMBER OF OUTPUTS C20
2
AMPERAGE RATING
16A
PACKAGE CONTENTS
ATS
Quickstart guide
Safety instructions
(2) Input cables: C19-C20 1.8m
(2) Input cable lockers
Plastic strips for output locking
RS-232 serial cable
DB9/RJ45 cable for network card configuration
Accessories for rack installation
Quickstart guide
Safety instructions
(2) Input cables: C19-C20 1.8m
(2) Input cable lockers
Plastic strips for output locking
RS-232 serial cable
DB9/RJ45 cable for network card configuration
Accessories for rack installation
INPUT CONNECTION
(2) C20
FITTED WITH:
Display
LED indication
Ampere Meter
Mounting material
LED indication
Ampere Meter
Mounting material
FREQUENCY RATING
50/60 Hz
EVALUATION
At distance
OPERATING TEMPERATURE
0° to 40°C (32° to 104°F)
ETHERNET INTERFACE
Yes
NUMBER OF OUTLETS WITH EARTH PIN
9
MASS CONFIGURATION
Yes
COMMUNICATION
HTTP, HTTPS, SSL, Telnet, FTP, SNMP, SMTP, DNS, DHCP, LDAP, RADIUS
SPECIAL FEATURES
Provides power redundancy to IT equipment
Alternative to expensive redundant power supplies available from networking equipment vendors
Compact, 1U rack form factor
Seamlessly switches from one power source to the other
Network management
LCD with metering and basic configuration capabilities
Alternative to expensive redundant power supplies available from networking equipment vendors
Compact, 1U rack form factor
Seamlessly switches from one power source to the other
Network management
LCD with metering and basic configuration capabilities
NUMBER OF OUTPUTS C19
1
OUTLET CONTROL
No
SWITCHABLE
No
CORD LENGTH
2m
INPUT VOLTAGE
200-240V
COLOR
Black
SNMP
Yes
OVER VOLTAGE CATEGORY
2
OUTLETS
(8) C13, (1) C19
TYPE
ATS
SERIAL INTERFACE
No
MOUNTING DIMENSION (METRICAL)
43
