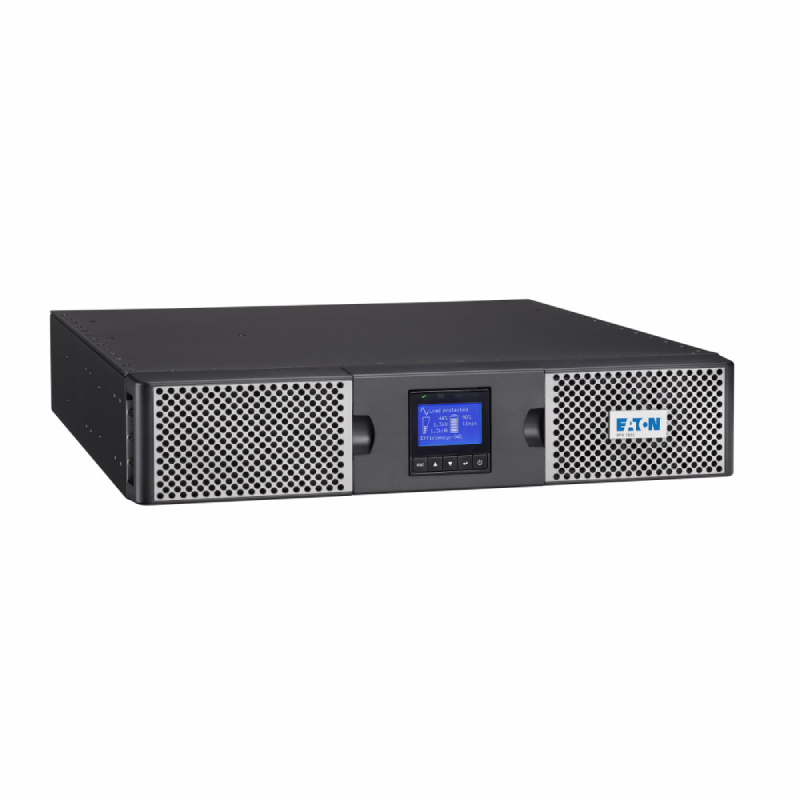

Eaton 9PX Marine UPS, 1500 VA, 1500 W, Input: C14, Outputs: (8) C13, Rack/tower, 2U
Technical Specifications:
PRODUCT NAME
Eaton 9PX marine UPS
CATALOG NUMBER
9PX1500IRTM
MODEL CODE
Eaton 9PX 1500i RT2U Marine
UPC
743172081230
PRODUCT LENGTH/DEPTH
45 cm
PRODUCT HEIGHT
8.65 cm
PRODUCT WIDTH
44 cm
PRODUCT WEIGHT
18.9 kg
WARRANTY
3 year on electronics, 2 year on battery
COMPLIANCES
CISPR22 Class B
FCC part 15 Class B
CE Marked
TUV
cULus Listed
CSA 22.2
FCC part 15 Class B
CE Marked
TUV
cULus Listed
CSA 22.2
CERTIFICATIONS
cULus Listed
DNV GL Certified
EAC
UL 1778
IEC/EN 62040-1
CE
ENERGY STAR certified
IEC/EN 62040-2
DNV GL Certified
EAC
UL 1778
IEC/EN 62040-1
CE
ENERGY STAR certified
IEC/EN 62040-2
MODEL CODE
Eaton 9PX 1500i RT2U Marine
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY – MAX
60 Hz
OUTPUT WAVEFORM
Sine wave
MAX NUMBER OF BATTERY PACKS
4
WATTAGE
1500 W
OUTPUT POWER FACTOR
1
FORM FACTOR
Rack/tower
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) – MAX
3
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C14
INPUT VOLTAGE – MIN
100 V
OUTPUT VOLTAGE – MAX
240 V
SECONDARY FREQUENCY – MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
BATTERY REPLACEMENT
Hot-swappable internal batteries and extended battery modules (EBMs)
BATTERY TYPE
Sealed, lead-acid
EFFICIENCY
92.5
SPECIAL FEATURES
Double conversion topology
Constantly monitors power conditions and regulates voltage and frequency
First UPS in its class to provide Unity power factor (VA=W)
Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs
Internal bypass allows service continuity in case of UPS fault
Next-generation graphical LCD display
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Meter energy consumption (down to the managed outlet groups)
DNV-GL approved
Pedestal and rail kits delivered as standard
Constantly monitors power conditions and regulates voltage and frequency
First UPS in its class to provide Unity power factor (VA=W)
Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs
Internal bypass allows service continuity in case of UPS fault
Next-generation graphical LCD display
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Meter energy consumption (down to the managed outlet groups)
DNV-GL approved
Pedestal and rail kits delivered as standard
CONSTRUCTION TYPE
482.6 mm (19 inch) device
OUTPUT VOLTAGE – MIN
200 V
COLOR
Black/silver
EXTENDED BATTERY CAPABILITY
Yes
OUTPUT VOLTAGE RANGE
200/208/220/230/240 V +/- 1%
TOPOLOGY
Online
BTU RATING
Online: 386
EFFICIENCY (ECO-MODE)
97.5
BACK-UP TIME
14 min
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
INPUT POWER FACTOR
>.99
INPUT FREQUENCY RANGE
40-70 Hz
INTERNAL BYPASS
Yes
INPUT VOLTAGE – MAX
276 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
ABM & Temperature compensated charging method (user selectable)
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C13
8
VA RATING
1500 VA
POTENTIAL FREE SWITCH CONTACT
Yes
RECEPTACLE
(8) C13
PHASE (INPUT)
1
PACKAGE CONTENTS
UPS
(2) IEC-IEC output cables
USB cable
Serial cable
(2) brackets for 19’ mounting
(2) Rack-mounting kit
(2) Supports for tower mounting
Cable locking system
Safety instructions
Quickstart guide
(2) IEC-IEC output cables
USB cable
Serial cable
(2) brackets for 19’ mounting
(2) Rack-mounting kit
(2) Supports for tower mounting
Cable locking system
Safety instructions
Quickstart guide
NOISE LEVEL
<35 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
Multilingual graphical LCD display
BATTERY QUANTITY
4
RACK SIZE
2U
VOLTAGE
230V
HOT SWAP POWER
No
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
ETHERNET INTERFACE
No
COMMUNICATION
USB port (HID compliant)
Serial port (RS232)
Mini terminal block for remote On/Off
Mini-terminal block for remote power off
Mini-terminal block for output relay
Dry contacts (3 outputs, 1 input, optocoupler, DB9)
Serial port (RS232)
Mini terminal block for remote On/Off
Mini-terminal block for remote power off
Mini-terminal block for output relay
Dry contacts (3 outputs, 1 input, optocoupler, DB9)
RELATIVE HUMIDITY
0-96% non-condensing
RACK MOUNTING KIT
Yes
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
5 min
TYPE OF INTERFACE
Other
PRIMARY FREQUENCY – MIN
40 Hz
BATTERY RATING
12 V / 9 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
EXPANSION SLOTS
One slot for optional communication card
INPUT VOLTAGE RANGE
176-276 V (100-276 V with derating)
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY – MAX
70 Hz
ALTITUDE
3000 m
