Περιγραφή

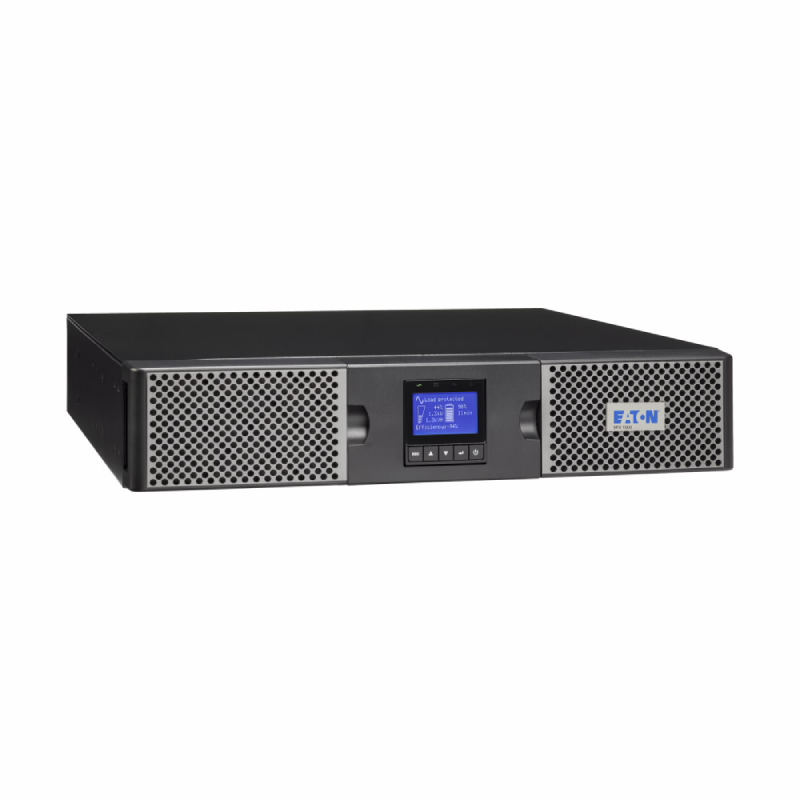

Eaton 9PX UPS Netpack, 1000 VA, 1000 W, Input: C14, Outputs: (8) C13, Rack/tower, 2U, Network card included
Technical Specifications:
PRODUCT NAME
Eaton 9PX UPS
CATALOG NUMBER
9PX1000IRTN
PRODUCT LENGTH/DEPTH
45 cm
PRODUCT HEIGHT
8.65 cm
PRODUCT WIDTH
44 cm
PRODUCT WEIGHT
17.4 kg
WARRANTY
3 year on electronics, 2 year on battery
COMPLIANCES
CISPR22 Class B
CSA 22.2
CE Marked
TUV
cULus Listed
FCC part 15 Class B
CSA 22.2
CE Marked
TUV
cULus Listed
FCC part 15 Class B
CERTIFICATIONS
cULus Listed
EAC
CE
ENERGY STAR certified
UL 1778
IEC/EN 62040-1
IEC/EN 62040-2
EAC
CE
ENERGY STAR certified
UL 1778
IEC/EN 62040-1
IEC/EN 62040-2
UPC
743172081476
MODEL CODE
Eaton 9PX 1000i RT2U Netpack
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY – MAX
60 Hz
OUTPUT WAVEFORM
Sine wave
MAX NUMBER OF BATTERY PACKS
4
WATTAGE
1000 W
OUTPUT POWER FACTOR
1
FORM FACTOR
Rack/tower
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) – MAX
3
INCLUDES NETWORK CARD
Yes
INPUT CONNECTION
C14
INPUT VOLTAGE – MIN
100 V
OUTPUT VOLTAGE – MAX
240 V
SECONDARY FREQUENCY – MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
BATTERY REPLACEMENT
Hot-swappable internal batteries and extended battery modules (EBMs)
BATTERY TYPE
Sealed, lead-acid
EFFICIENCY
91.5
SPECIAL FEATURES
Double conversion topology
Constantly monitors power conditions and regulates voltage and frequency
First UPS in its class to provide Unity power factor (VA=W)
Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs
Internal bypass allows service continuity in case of UPS fault
Next-generation graphical LCD display
Network card and rackmounting kit delivered as standard
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Meter energy consumption (down to the managed outlet groups)
Hot swappable batteries
Advanced Battery Management (ABM) technology to increase battery lifetime
Constantly monitors power conditions and regulates voltage and frequency
First UPS in its class to provide Unity power factor (VA=W)
Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs
Internal bypass allows service continuity in case of UPS fault
Next-generation graphical LCD display
Network card and rackmounting kit delivered as standard
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Meter energy consumption (down to the managed outlet groups)
Hot swappable batteries
Advanced Battery Management (ABM) technology to increase battery lifetime
CONSTRUCTION TYPE
482.6 mm (19 inch) device
OUTPUT VOLTAGE – MIN
200 V
COLOR
Black/silver
EXTENDED BATTERY CAPABILITY
Yes
OUTPUT VOLTAGE RANGE
200/208/220/230/240 V +/- 1%
TOPOLOGY
Online/Double-conversion
BTU RATING
Online: 290
EFFICIENCY (ECO-MODE)
97.5
BACK-UP TIME
16.5 min
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
INPUT POWER FACTOR
>.99
INPUT FREQUENCY RANGE
40-70 Hz
INTERNAL BYPASS
Yes
INPUT VOLTAGE – MAX
276 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
ABM & Temperature compensated charging method (user selectable)
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
INTEGRATED FUNCTIONALITY
Network Mangement
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C13
8
VA RATING
1000 VA
POTENTIAL FREE SWITCH CONTACT
Yes
RECEPTACLE
(8) C13
PHASE (INPUT)
1
PACKAGE CONTENTS
UPS
Network Management Card
(2) IEC-IEC output cables
USB cable
Serial cable
(2) brackets for 19’ mounting
(2) Rack-mounting kit
(2) Supports for tower mounting
Cable locking system
Safety instructions
Quickstart guide
Network Management Card
(2) IEC-IEC output cables
USB cable
Serial cable
(2) brackets for 19’ mounting
(2) Rack-mounting kit
(2) Supports for tower mounting
Cable locking system
Safety instructions
Quickstart guide
NOISE LEVEL
<35 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
Multilingual graphical LCD display
BATTERY QUANTITY
4
RACK SIZE
2U
VOLTAGE
230V
HOT SWAP POWER
No
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
ETHERNET INTERFACE
Yes
PROTOCOL
SNMP
COMMUNICATION
USB port (HID compliant)
Serial port (RS232)
Mini terminal block for remote On/Off
Mini-terminal block for remote power off
Mini-terminal block for output relay
Dry contacts (3 outputs, 1 input, optocoupler, DB9)
Network Card
Serial port (RS232)
Mini terminal block for remote On/Off
Mini-terminal block for remote power off
Mini-terminal block for output relay
Dry contacts (3 outputs, 1 input, optocoupler, DB9)
Network Card
RELATIVE HUMIDITY
0-96% non-condensing
RACK MOUNTING KIT
Yes
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
6 min
TYPE OF INTERFACE
Other
PRIMARY FREQUENCY – MIN
40 Hz
BATTERY RATING
12 V / 7 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
EXPANSION SLOTS
One slot, network card included
INPUT VOLTAGE RANGE
176-276 V (100-276 V with derating)
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY – MAX
70 Hz
ALTITUDE
3000 m
