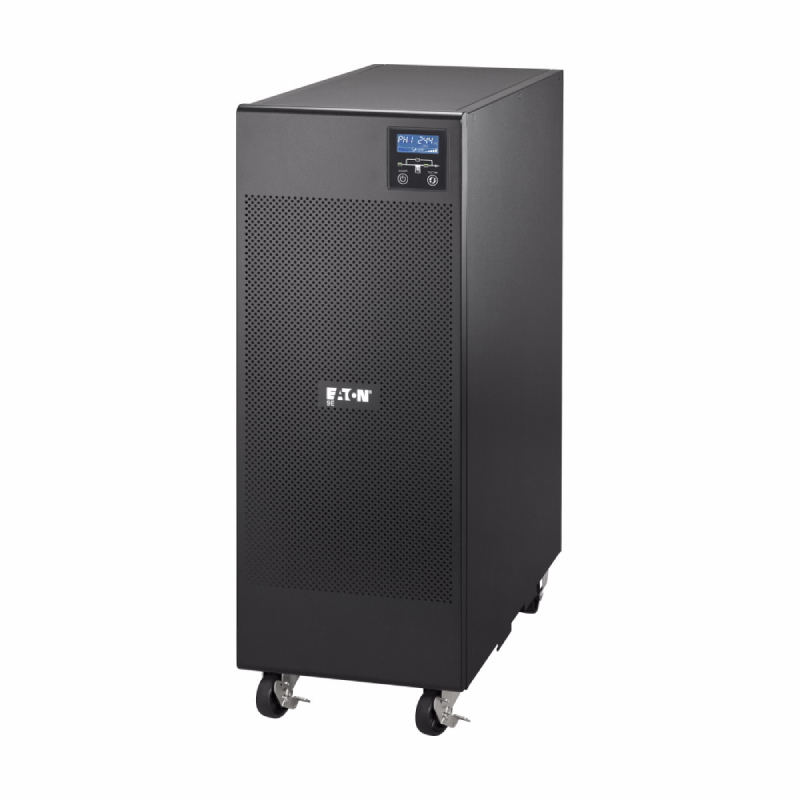

Eaton 9E UPS XL, 10 kVA, 8 kW, Input: Hardwired, Output: Hardwired, Tower
Technical Specifications:
PRODUCT NAME
Eaton 9E UPS
CATALOG NUMBER
9E10KIXL
UPC
743172067685
PRODUCT LENGTH/DEPTH
61.29 cm
PRODUCT HEIGHT
70.85 cm
PRODUCT WIDTH
26.24 cm
PRODUCT WEIGHT
28.86 kg
WARRANTY
1 year
COMPLIANCES
CE Marked
TUV
TUV
CERTIFICATIONS
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
IEC/EN 62040-2
CE
EAC
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY – MAX
60 Hz
OUTPUT WAVEFORM
Sine wave
MAX NUMBER OF BATTERY PACKS
4
WATTAGE
8 kW
OUTPUT POWER FACTOR
0.8
FORM FACTOR
Tower
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) – MAX
3
INCLUDES NETWORK CARD
No
INPUT CONNECTION
Hardwired/fixed connection
INPUT VOLTAGE – MIN
110 V
OUTPUT VOLTAGE – MAX
240 V
SECONDARY FREQUENCY – MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
BATTERY REPLACEMENT
No battery
EFFICIENCY
92
NUMBER OF OUTPUTS HARDWIRED
1
SPECIAL FEATURES
Double conversion topology
Constantly monitors power conditions and regulates voltage and frequency
Internal bypass allows service continuity in case of UPS fault
LCD display for real-time status and measurements
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Constantly monitors power conditions and regulates voltage and frequency
Internal bypass allows service continuity in case of UPS fault
LCD display for real-time status and measurements
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
CONSTRUCTION TYPE
Free standing model
OUTPUT VOLTAGE – MIN
220 V
COLOR
Black
EXTENDED BATTERY CAPABILITY
Yes
OUTPUT VOLTAGE RANGE
220/230/240 V +/- 2%
TOPOLOGY
Online/Double-conversion
BTU RATING
Online: 2456
EFFICIENCY (ECO-MODE)
96
BACK-UP TIME
0 min
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
INPUT POWER FACTOR
>.99
INPUT FREQUENCY RANGE
45-66Hz
INTERNAL BYPASS
Yes
INPUT VOLTAGE – MAX
276 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
Automatic battery test
Deep discharge protection
Deep discharge protection
AUTO SHUTDOWN FUNCTION
Yes
VA RATING
10 kVA
POTENTIAL FREE SWITCH CONTACT
Yes
PACKAGE CONTENTS
UPS
USB cable
Serial cable
User manual
USB cable
Serial cable
User manual
NOISE LEVEL
<55 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
LCD Display
BATTERY QUANTITY
0
VOLTAGE
230/400V
HOT SWAP POWER
No
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
ETHERNET INTERFACE
No
COMMUNICATION
USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote power off
Communication slot
Serial port (RS232)
Mini-terminal block for remote power off
Communication slot
RELATIVE HUMIDITY
0-95% non-condensing
RACK MOUNTING KIT
No
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
0 min
TYPE OF INTERFACE
Other
PRIMARY FREQUENCY – MIN
45 Hz
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V default (220/230/240V)
EXPANSION SLOTS
One slot for optional communication card
INPUT VOLTAGE RANGE
176-276 V (110-276 V with derating)
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY – MAX
66 Hz
ALTITUDE
3000 m
