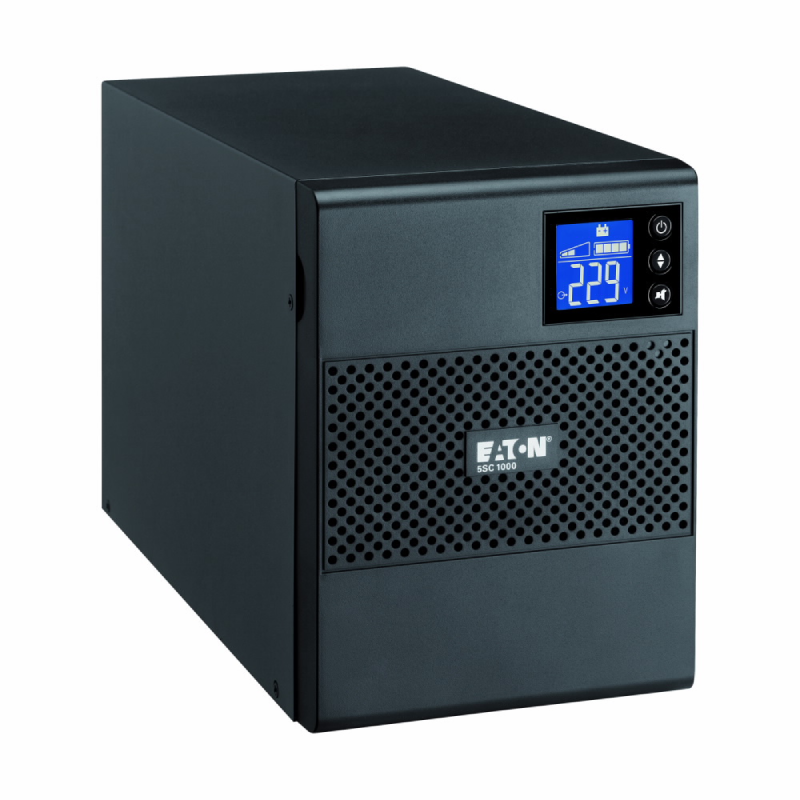

Eaton 5SC UPS, 750 VA, 525 W, Input: C14, Outputs: (6) C13, Tower
Technical Specifications:
PRODUCT NAME
Eaton 5SC UPS
CATALOG NUMBER
5SC750I
PRODUCT LENGTH/DEPTH
150 mm
PRODUCT HEIGHT
210 mm
PRODUCT WIDTH
340 mm
PRODUCT WEIGHT
10.4 kg
COMPLIANCES
CE Marked
TUV
TUV
CERTIFICATIONS
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
CE
EAC
cTUVus
UL 1778
IEC/EN 62040-2
CE
EAC
cTUVus
UPC
743172045157
MODEL CODE
Eaton 5SC 750i
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY – MAX
60 Hz
OUTPUT WAVEFORM
Sine wave
WATTAGE
525 W
OUTPUT POWER FACTOR
0.7
FORM FACTOR
Tower
ENCLOSURE
Black
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C14
INPUT VOLTAGE – MIN
184 V
OUTPUT VOLTAGE – MAX
240 V
SECONDARY FREQUENCY – MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Protector
BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Lead-acid maintenance-free (replaceable)
EFFICIENCY
96
SPECIAL FEATURES
Automatic Voltage Regulation (AVR)
Delivers clean sinewave output
LCD display for real-time status and measurements
Reliable and affordable UPS for tower servers, networking and storage
Saves space with a compact tower design
Fully integrates with Eaton Intelligent Power Manager software
1 USB port + 1 serial port
1 USB port + 1 serial port
Advanced Battery Management (ABM) technology to increase battery lifetime
Delivers clean sinewave output
LCD display for real-time status and measurements
Reliable and affordable UPS for tower servers, networking and storage
Saves space with a compact tower design
Fully integrates with Eaton Intelligent Power Manager software
1 USB port + 1 serial port
1 USB port + 1 serial port
Advanced Battery Management (ABM) technology to increase battery lifetime
CONSTRUCTION TYPE
Free standing model
OUTPUT VOLTAGE – MIN
220 V
COLOR
Black
EXTENDED BATTERY CAPABILITY
No
OUTPUT VOLTAGE RANGE
230 V (+6%/-10%)
TOPOLOGY
Line-interactive
BTU RATING
Online: 106
BACK-UP TIME
12.5 min
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
INPUT FREQUENCY RANGE
45-55 Hz (50 Hz system), 55-65 Hz (60 Hz system)
INPUT VOLTAGE – MAX
276 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C13
6
VA RATING
750 VA
POTENTIAL FREE SWITCH CONTACT
No
RECEPTACLE
(6) C13
PHASE (INPUT)
1
PACKAGE CONTENTS
USB cable
Serial cable
(2) IEC-IEC cables
Quickstart guide
Safety instructions
Serial cable
(2) IEC-IEC cables
Quickstart guide
Safety instructions
NOISE LEVEL
<40 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
LCD Display
BATTERY QUANTITY
2
VOLTAGE
230V
TEMPERATURE RANGE
0-90% non-condensing
ETHERNET INTERFACE
No
COMMUNICATION
USB port (HID compliant)
Serial port (RS232)
Serial port (RS232)
RELATIVE HUMIDITY
0-90% non-condensing
RACK MOUNTING KIT
No
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
5 min
TYPE OF INTERFACE
Other
PRIMARY FREQUENCY – MIN
45 Hz
BATTERY RATING
12 V / 7 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V default (220/230/240V)
EXPANSION SLOTS
No
INPUT VOLTAGE RANGE
184-276 V
NOMINAL FREQUENCY
50-60 Hz
PRIMARY FREQUENCY – MAX
65 Hz
ALTITUDE
2000 m
