Περιγραφή

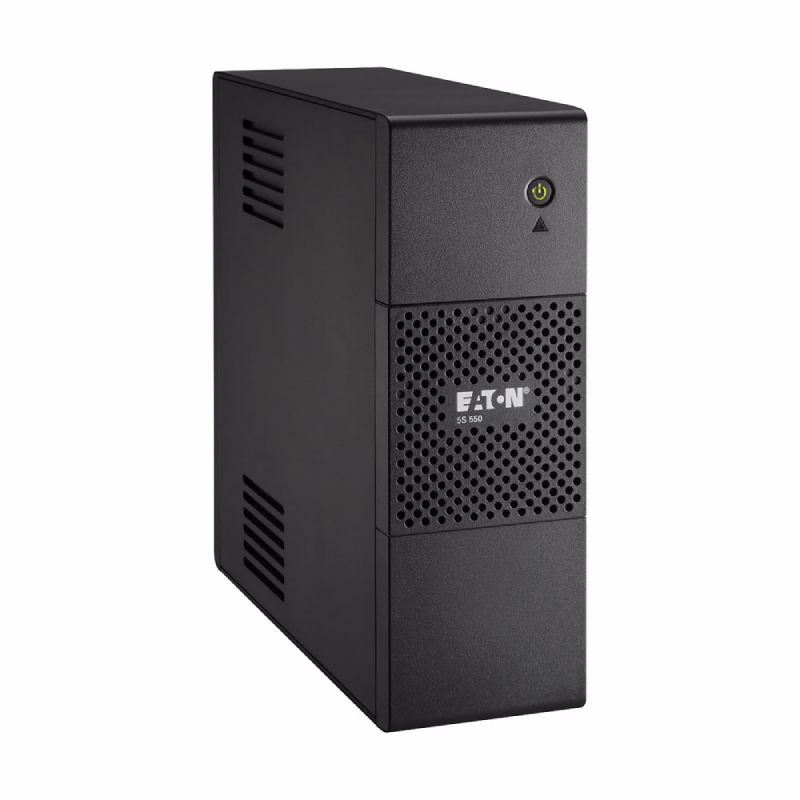

Eaton 5S UPS, 550 VA, 330 W, Input: C14, Outputs: (3) C13, (1) C13 surge only, Tower
Technical Specifications:
PRODUCT NAME
Eaton 5S UPS
CATALOG NUMBER
5S550I
PRODUCT LENGTH/DEPTH
87 mm
PRODUCT HEIGHT
250 mm
PRODUCT WIDTH
260 mm
PRODUCT WEIGHT
4.96 kg
COMPLIANCES
CE Marked
CERTIFICATIONS
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
IEC/EN 62040-2
CE
EAC
UPC
743172436726
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY – MAX
60 Hz
WATTAGE
330W
OUTPUT POWER FACTOR
0.6
FORM FACTOR
Tower
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C14
INPUT VOLTAGE – MIN
175 V
OUTPUT VOLTAGE – MAX
276 V
SECONDARY FREQUENCY – MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Sealed, lead-acid
EFFICIENCY
97
SPECIAL FEATURES
Automatic Voltage Regulation (AVR)
Saves space with a compact design that can be installed as a tower or under a computer monitor
HID-compliant USB port (cable supplied), for automatic integration with major operating systems (Windows/Mac OS/Linux)
Data line protection to ensure that the internet line (including xDSL) is protected against surges
Easy to replace battery helps to extend UPS service life
Saves space with a compact design that can be installed as a tower or under a computer monitor
HID-compliant USB port (cable supplied), for automatic integration with major operating systems (Windows/Mac OS/Linux)
Data line protection to ensure that the internet line (including xDSL) is protected against surges
Easy to replace battery helps to extend UPS service life
CONSTRUCTION TYPE
Free standing model
OUTPUT VOLTAGE – MIN
184 V
COLOR
Black
EXTENDED BATTERY CAPABILITY
No
OUTPUT VOLTAGE RANGE
184-276 V
TOPOLOGY
Line-interactive
SURGE PROTECTION
Yes
BACK-UP TIME
9.5 min
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
INPUT FREQUENCY RANGE
46-70 Hz
INPUT VOLTAGE – MAX
275 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C13
4
OPERATING TEMPERATURE – MIN
0 °C
VA RATING
550 VA
POTENTIAL FREE SWITCH CONTACT
No
RECEPTACLE
(3) C13, (1) C13 surge only
PHASE (INPUT)
1
PACKAGE CONTENTS
(2) IEC-IEC cables
USB cable
User manual
Safety instructions
USB cable
User manual
Safety instructions
NOISE LEVEL
<25 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
LEDs
BATTERY QUANTITY
1
OPERATING TEMPERATURE – MAX
35 °C
VOLTAGE
230V
TEMPERATURE RANGE
0° to 35°C (32° to 95°F)
ETHERNET INTERFACE
No
COMMUNICATION
USB port (HID compliant)
RELATIVE HUMIDITY
0-85% non-condensing
OUTPUT APPARENT POWER
550 VA
RACK MOUNTING KIT
No
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
1 min
TYPE OF INTERFACE
USB
PRIMARY FREQUENCY – MIN
46 Hz
BATTERY RATING
12 V / 5 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V
EXPANSION SLOTS
No
INPUT VOLTAGE RANGE
175-275 V
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY – MAX
70 Hz
ALTITUDE
2000 m
