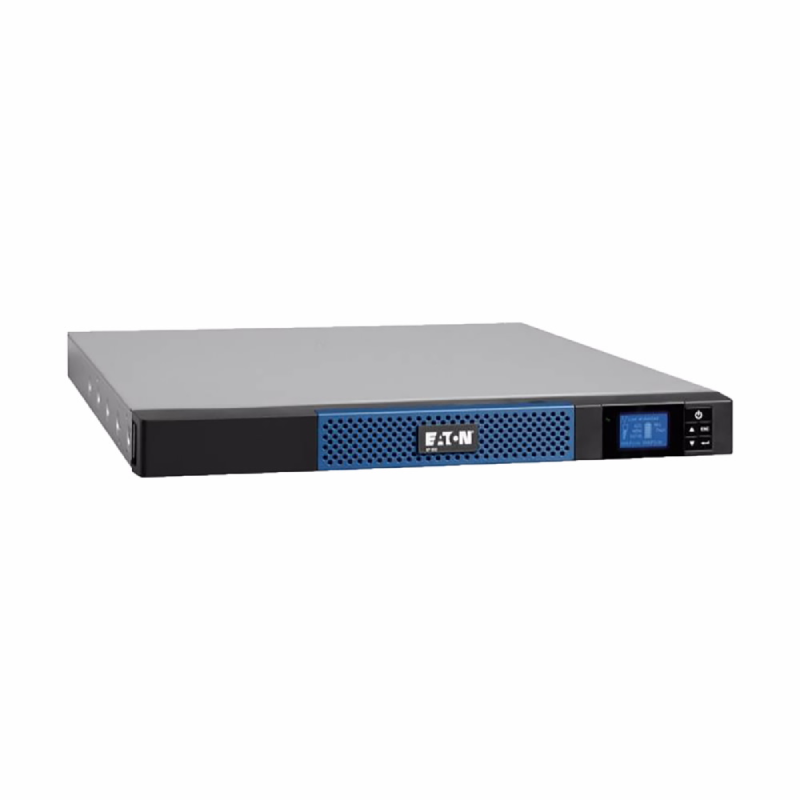

Eaton 5P UPS, Global, 1U UPS, 1550 VA, 1100W, Input: (1) C14, Outputs: (6) C13, Rackmount/Wallmount, Lithium-ion battery, true sine wave, network card optional
Technical Specifications:
PRODUCT NAME
Eaton 5P UPS
CATALOG NUMBER
5P1550GR-L
MODEL CODE
Eaton 5P1550 Lithium-ion Rack 1U
UPC
743172090409
PRODUCT LENGTH/DEPTH
21.8 in
PRODUCT HEIGHT
1.7 in
PRODUCT WIDTH
17.2 in
PRODUCT WEIGHT
36 lb
WARRANTY
5 year
COMPLIANCES
FCC Part 15 Class A Subpart B Sections 15.107b , 15.109b
RoHS Compliant
CE Marked
RoHS Compliant
CE Marked
CERTIFICATIONS
UL 1778
UL 497A
cUL Listed
cULus Listed
IEC 62040-2 C1-C2 / EN 55024 / CISPR22 Class B / FCC part 15 Class B
UL 497A
cUL Listed
cULus Listed
IEC 62040-2 C1-C2 / EN 55024 / CISPR22 Class B / FCC part 15 Class B
BATTERY
RUNTIME GRAPH
View runtime graph
BATTERY TYPE
Lithium-ion
BATTERY REPLACEMENT
User replaceable
BATTERY MANAGEMENT
Integrated battery management system (BMS) for temperature regulation and life cycle monitoring
ELECTRICAL OUTPUT
VOLTAGE
230V
RECEPTACLE
(6) C13
WATTAGE
1100 W
OUTPUT FREQUENCY
50/60 Hz
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
TOPOLOGY
Line-interactive
ELECTRICAL INPUT
INPUT CONNECTION
C14
NOMINAL FREQUENCY
50/60 Hz
INPUT POWER FACTOR
1
INPUT VOLTAGE RANGE
160-294 V (adjustable to 150 V-294 V)
INPUT FREQUENCY RANGE
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode
COMMUNICATIONS
COMMUNICATION
RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included
ETHERNET INTERFACE
No
POTENTIAL FREE SWITCH CONTACT
Yes
EXPANSION SLOTS
One slot; Gigabit Network Card (Network-M2) is optional
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager (included)
TYPE OF INTERFACE
Other
ENVIRONMENTAL
ALTITUDE
Up to 10,000 ft (3000m) without de-rating
NOISE LEVEL
<45 dB at 1 meter
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
BTU RATING
Online: 113, Battery 714
RELATIVE HUMIDITY
0-90% non-condensing
ADDITIONAL SPECIFICATIONS
FORM FACTOR
Rack
CONSTRUCTION TYPE
482.6 mm (19 inch) device
PACKAGE CONTENTS
UPS
Quickstart guide
USB cable
RS-232 serial cable
4-post rail kit
(2) IEC-IEC cables
Cable locking system
Quickstart guide
USB cable
RS-232 serial cable
4-post rail kit
(2) IEC-IEC cables
Cable locking system
PHASE (OUTPUT)
1
AUTO SHUTDOWN FUNCTION
Yes
RACK SIZE
1U
COLOR
Black/silver
RACK MOUNTING KIT
Yes
EFFICIENCY
97
PHASE (INPUT)
1
