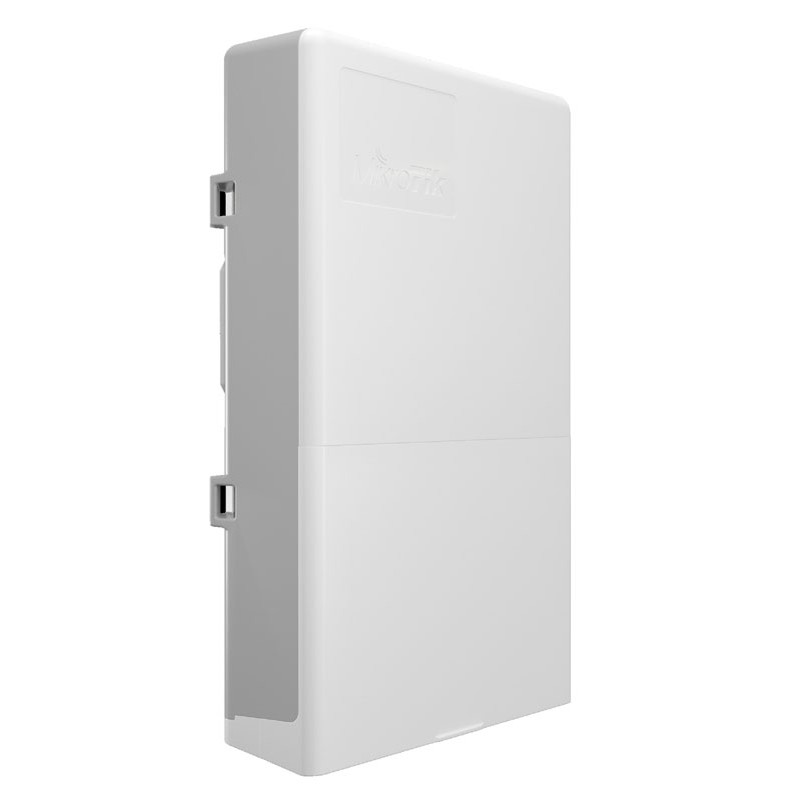

netPower 15FR (CRS318-1Fi-15Fr-2S-OUT)
With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 15 can power other PoE capable devices with the same voltage as applied to the unit.
There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up!
netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.
The power supply is NOT included with the product- must be purchased separately.
Technical Specifications:
| CPU | 98DX224S 800 MHz |
| Memory | RAM:256 MB Flash for storage: 16 MB |
| Switch chip model | 98DX224S |
| Number of 100 Mbps Ethernet ports | 16 |
| SFP cages | 2 |
| Operating system | SwOS / RouterOS (Dual boot) |
| RouterOS license level | 5 |
| PoE in | Ports 1 – 14 and 16 |
| PoE out | On Ether15 |
| Supported input voltage | 18 – 57 V (DC jack); 36 – 57 V (PoE-in) |
| Number of DC jacks | 1 ( power adapter not included) |
| Dimensions | 304 x 212 x 71 mm |
| Operating temperature | -40°C to +70°C tested |
| Max power consumption | 29 W |
