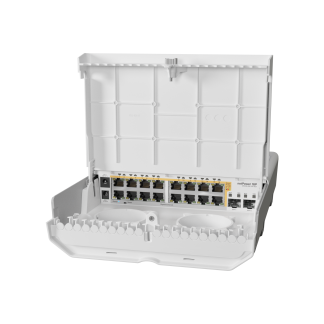

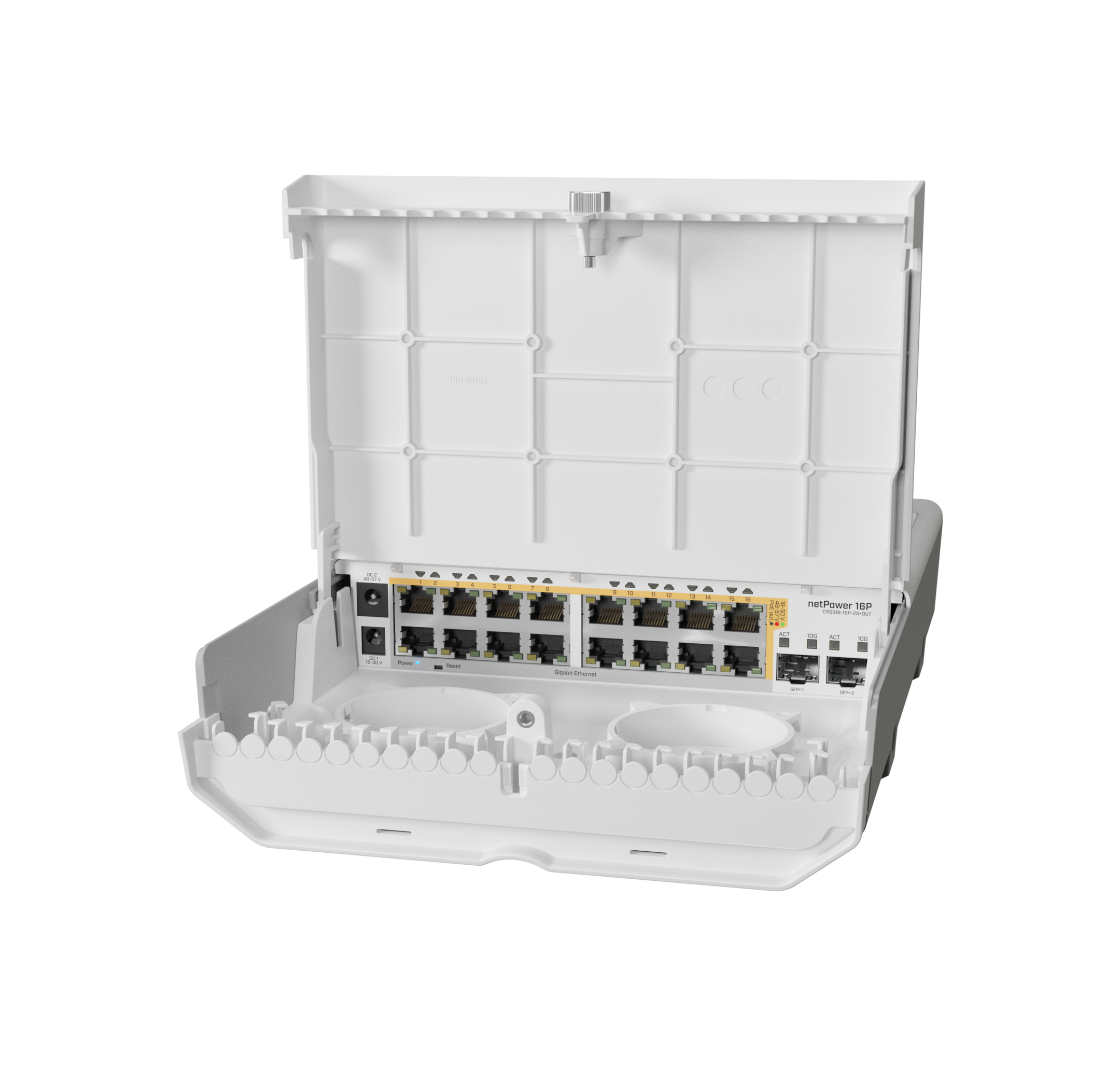

netPower 16P (CRS318-16P-2S+OUT)
Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.
Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles with hose clamps.
netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.
Device itself does not have an onboard voltage converter. You need 24V PSU to have 24V PoE out and/or 48V PSU to have 48V PoE out (IEEE 802.3 at/af).
Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, 48POW and 48V2A96W
Technical Specifications:
| CPU | 98DX226S, 800 MHz |
| CPU temperature monitor | Yes |
| Memory | RAM:256 MB Flash for storage: 16 MB |
| Switch chip model | 98DX226S |
| Number of 1G Ethernet ports | 16 |
| Number of 10G SFP+ ports | 2 |
| Operating system | SwOS / RouterOS (Dual boot) |
| RouterOS license level | 5 |
| PoE in | Ports 1 – 14 and 16 |
| PoE out | On Ether15 |
| Supported input voltage | 18 – 57 V (DC jack); 36 – 57 V (PoE-in) |
| Number of DC jacks | 1 ( power adapter not included) |
| Dimensions | 303 x 212 x 78 mm |
| Operating temperature | -40°C to +70°C tested |
| Max power consumption | 29 W |
