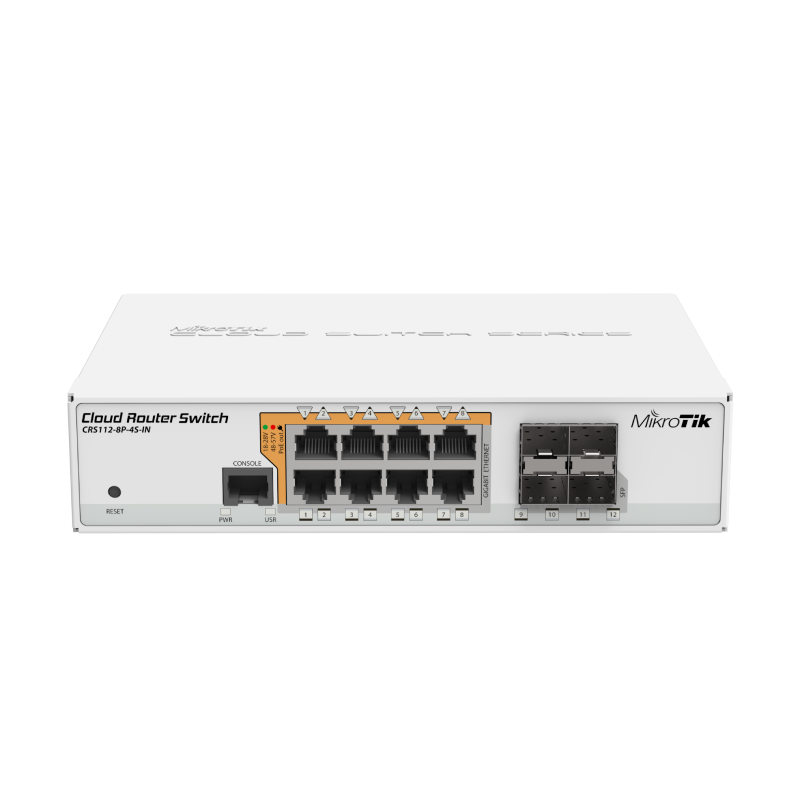

CRS112-8P-4S-IN
CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.
CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately – product codes 48POW (1.46A 70W) and 48V2A96W (2A 96W)). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins
Technical Specifications:
| Architecture | MIPSBE |
| CPU | QCA8511 |
| CPU core count | 1 |
| CPU nominal frequency | 400 MHz |
| License level | 5 |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Powering | |
|---|---|
| Max Power consumption | 10W |
| Number of DC inputs | 2 (DC) |
| DC jack input voltage | 18 – 57 V |
| PoE out | 802.3af/at |
| Ethernet | |
| 10/100/1000 Ethernet ports | 8 |
| Fiber | |
| SFP ports | 4 |
| Others | |
| Serial port | RJ45 |
| PCB temperature monitor | Yes |
