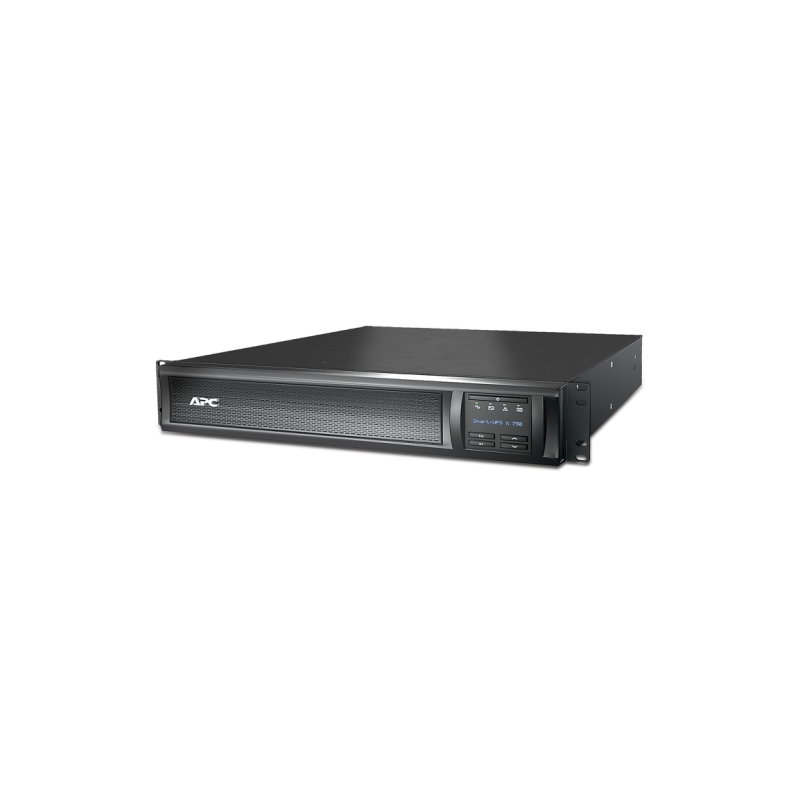

APC Smart-UPS X, Line Interactive, 750VA, Rack/tower 2U, 230V, 8x IEC C13, Network card, Extended runtime

APC Smart-UPS X, Line Interactive, 750VA, Rack/tower 2U, 230V, 8x IEC C13, Network card, Extended runtime

1.494,14 €

Κωδικός προϊόντος: SMX750INC Κατηγορία:

Περιγραφή

APC Smart-UPS X, Line Interactive, 750VA, Rack/tower 2U, 230V, 8x IEC C13, Network card, Extended runtime, Rail kit excluded
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Installation guide, Rack mounting brackets, Smart UPS signalling RS-232 cable, Temperature probe, USB cable
Technical Specifications:

Output

Max Configurable Power (Watts)

600 Watts / 750VA

Output Voltage Distortion

Less than 5 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Topology

Line interactive

Waveform type

Sine wave

Input

Input frequency

50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations

151 – 302 Adjustable, 160 – 286V

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Included Battery Modules

1

Typical recharge time

3hour(s)

Replacement Battery

APCRBC116

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

104 Watts

DC Overcurrent Protection

60A

Extendable Run Time

1

Runtime

View Runtime Graph

Communications & Management

Interface Port(s)

RJ-45 10/100 Base-T, RJ-45 Serial, SmartSlot, USB

Pre-Installed SmartSlot™ Cards

AP9631

Control panel

LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)

Yes

Surge Protection and Filtering

Surge energy rating

645Joules

Physical

Maximum Height

89MM, 8.9CM

Maximum Width

432MM, 43.2CM

Maximum Depth

490MM, 49.0CM

Net Weight

22.0KG

Shipping weight

26.44KG

Shipping Height

246MM, 24.6CM

Shipping Width

589MM, 58.9CM

Shipping Depth

620MM, 62.0CM

Color

Black

Units per Pallet

8.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

40.0dBA

Online thermal dissipation

69.0BTU/hr

Conformance

Approvals

CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS

Compliant
