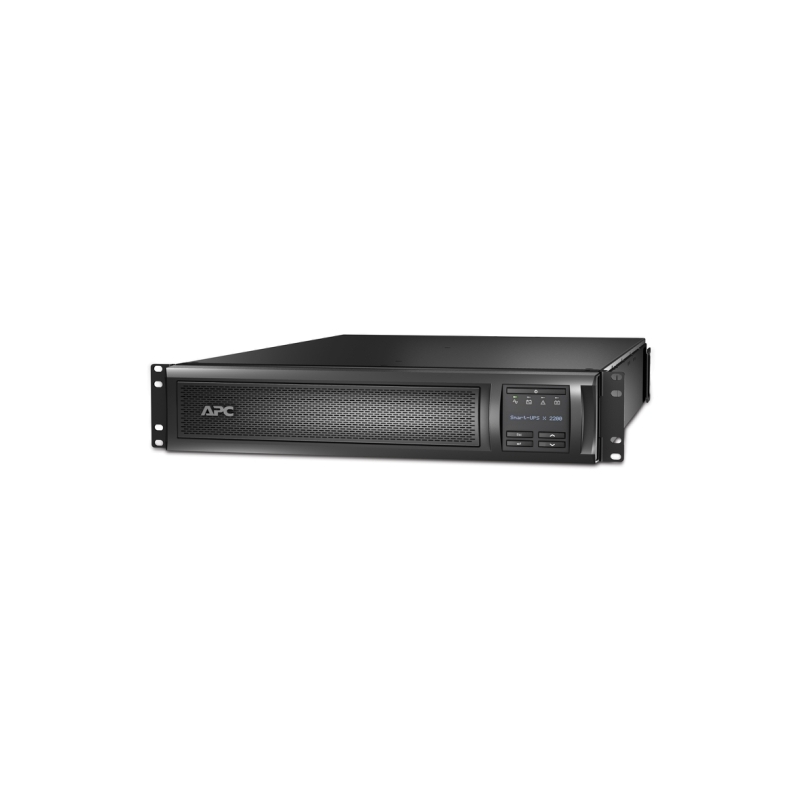

APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower 2U, 208V-230V, 8x C13+1x C19 IEC, Network card, Extended runtime

APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower 2U, 208V-230V, 8x C13+1x C19 IEC, Network card, Extended runtime

3.706,57 €

Κωδικός προϊόντος: SMX2200R2HVNC Κατηγορία:

Περιγραφή

APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower 2U, 208V-230V, 8x C13+1x C19 IEC, Network card, Extended runtime, Rail kit included
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Installation guide, Network management card, Rack mounting support rails, Smart UPS signalling RS-232 cable, Temperature probe, USB cable
Technical Specifications:

Output

Max Configurable Power (Watts)

1.98kWatts / 2.2kVA

Output Voltage Distortion

Less than 5 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Topology

Line interactive

Waveform type

Sine wave

Transfer Time

6 ms typical : 10 ms maximum

Input

Input frequency

50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations

140 – 280V

Number of Power Cords

1

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

3hour(s)

Replacement Battery

APCRBC117

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

233 Watts

Extendable Run Time

1

Communications & Management

Interface Port(s)

RJ-45 10/100 Base-T, RJ-45 Serial, SmartSlot, USB

Pre-Installed SmartSlot™ Cards

AP9631

Control panel

LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators, Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)

Yes

Surge Protection and Filtering

Surge energy rating

645Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

85MM, 8.5CM

Maximum Width

432MM, 43.2CM

Maximum Depth

667MM, 66.7CM

Net Weight

37.24KG

Shipping weight

45.26KG

Shipping Height

243MM, 24.3CM

Shipping Width

596MM, 59.6CM

Shipping Depth

869MM, 86.9CM

Color

Black

# of Layers per Pallet

4.0

# of Units per Layer per Pallet

2.0

Pallet Weight

855.13lbs.

Units per Pallet

8.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

150.0BTU/hr

Conformance

Approvals

CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC part 15 class A, IEC 60950, IRAM, RCM, UL 1778, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS

Compliant

Proposition 65 Warning

Available in Documentation tab
