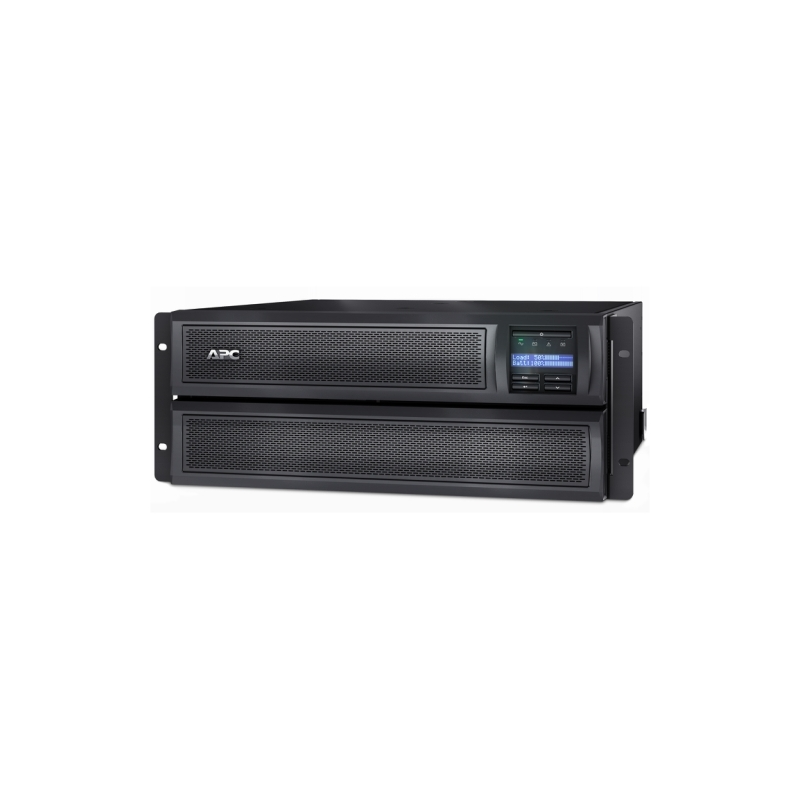

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower 2U, 208V-230V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower 2U, 208V-230V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime

2.804,94 €

Κωδικός προϊόντος: SMX3000HV Κατηγορία:

Περιγραφή

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower 2U, 208V-230V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime, Rail kit included
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Rack mounting brackets, Smart UPS signalling RS-232 cable, USB cable, User manual
Technical Specifications:

Output

Max Configurable Power (Watts)

2.7kWatts / 3.0kVA

Output Voltage Distortion

Less than 5 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

208 V, 220 V, 240 V

Load Crest Factor

3 : 1

Topology

Line interactive

Waveform type

Sine wave

Transfer Time

6 ms typical : 10 ms maximum

Input

Input frequency

50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations

140 – 280V

Number of Power Cords

1

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

3hour(s)

Replacement Battery

APCRBC143

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

245 Watts

Extendable Run Time

1

Communications & Management

Interface Port(s)

RJ-45 Serial, SmartSlot

Control panel

LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

645Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

432MM, 43.2CM

Maximum Width

178MM, 17.8CM

Maximum Depth

483MM, 48.3CM

Net Weight

38.64KG

Shipping weight

47.73KG

Shipping Height

330MM, 33.0CM

Shipping Width

586MM, 58.6CM

Shipping Depth

633MM, 63.3CM

Color

Black

Pallet Dimensions

31 x 48 x 43.5inches

# of Layers per Pallet

4.0

# of Units per Layer per Pallet

2.0

Pallet Weight

856.91lbs.

Units per Pallet

6.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

184.0BTU/hr

Conformance

Approvals

CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, TISI, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available

Sustainable Offer Status

RoHS

Compliant

Proposition 65 Warning

Available in Documentation tab
