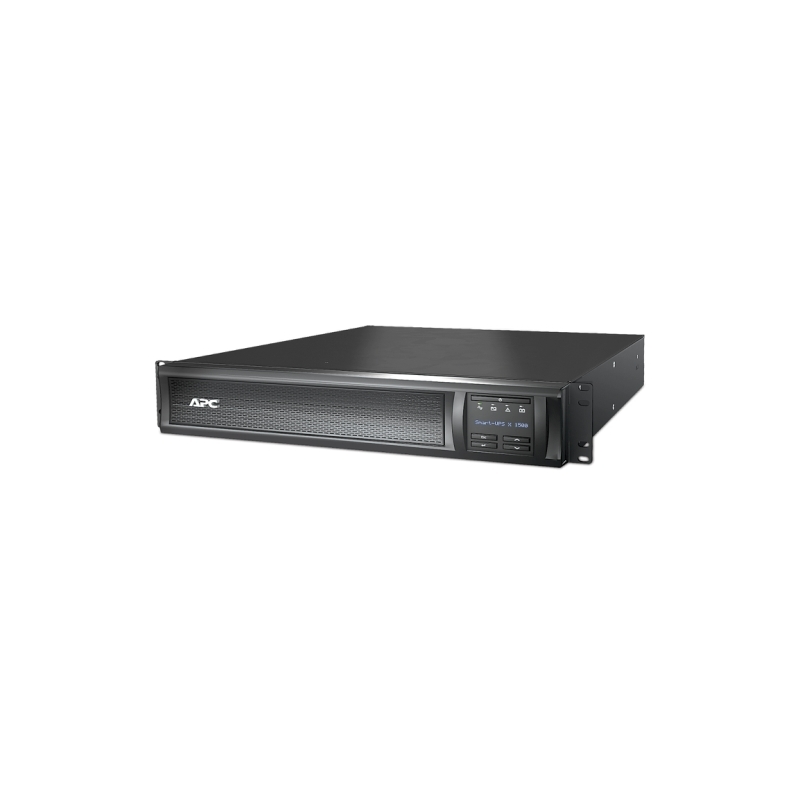

APC Smart-UPS X 1500VA Rack/Tower LCD 230V

APC Smart-UPS X 1500VA Rack/Tower LCD 230V

1.741,45 €

Κωδικός προϊόντος: SMX1500RMI2U Κατηγορία:

Περιγραφή

APC Smart-UPS X 1500VA Rack/Tower LCD 230V
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Installation guide, Rack mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable
Technical Specifications:

Output

Max Configurable Power (Watts)

1.2kWatts / 1.5kVA

Output Voltage Distortion

Less than 5 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Topology

Line interactive

Waveform type

Sine wave

Input

Input frequency

50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations

151 – 302 Adjustable, 160 – 286V

Number of Power Cords

1

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

3hour(s)

Replacement Battery

APCRBC115

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

103 Watts

Communications & Management

Interface Port(s)

RJ-45 Serial, SmartSlot, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

645Joules

Filtering

Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

89MM, 8.9CM

Maximum Width

432MM, 43.2CM

Maximum Depth

490MM, 49.0CM

Net Weight

24.82KG

Shipping weight

30.0KG

Shipping Height

246MM, 24.6CM

Shipping Width

589MM, 58.9CM

Shipping Depth

620MM, 62.0CM

Color

Black

Units per Pallet

8.0

Environmental

Operating Temperature

0 – 45 °C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

40.0dBA

Online thermal dissipation

133.0BTU/hr

Conformance

Approvals

CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS

Compliant

PEP

Available in Documentation tab

EOLI

Available in Documentation tab
