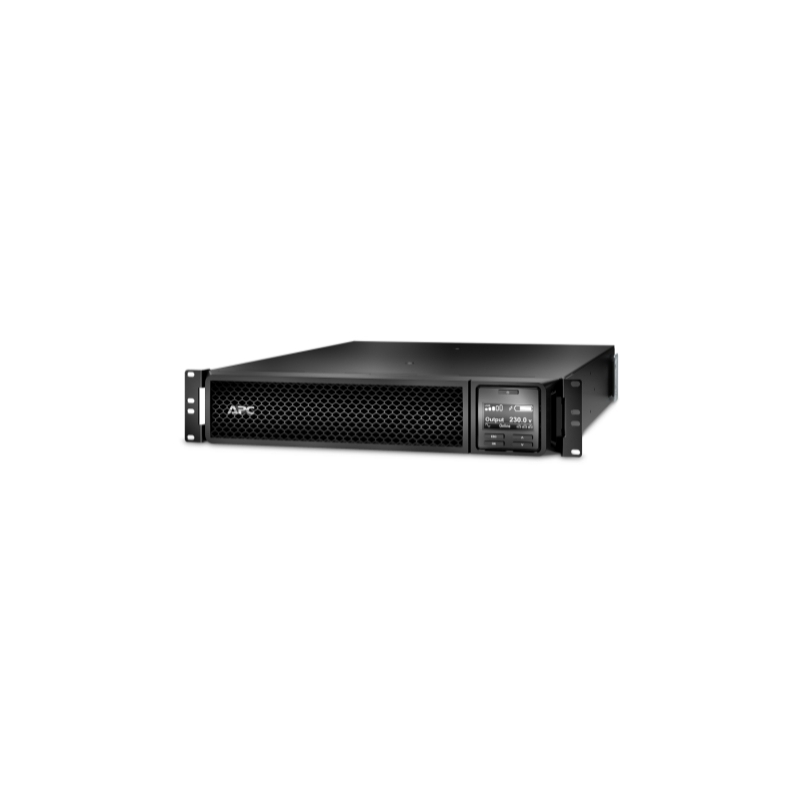

APC Smart-UPS On-Line, 3kVA, Rackmount 2U, 208V/230V, 6x C13+2x C19 IEC outlets, SmartSlot, Extended runtime

APC Smart-UPS On-Line, 3kVA, Rackmount 2U, 208V/230V, 6x C13+2x C19 IEC outlets, SmartSlot, Extended runtime

4.165,66 €

Κωδικός προϊόντος: SRT3000RMXLW-IEC Κατηγορία:

Περιγραφή

APC Smart-UPS On-Line, 3kVA, Rackmount 2U, 208V/230V, 6x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, Rail kit included
High density, double-conversion on-line power protection with scalable runtime.
Includes: CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting support rails, USB cable, Warranty card

Technical Specifications:

Output

Max Configurable Power (Watts)

2.7kWatts / 3.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Input

Input frequency

40 – 70 Hz Auto-sensing

Input voltage range for main operations

100 – 275 Adjustable (half load)V

Number of Power Cords

1

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Included Battery Modules

1

Typical recharge time

3hour(s)

Nominal Battery Voltage

96 V

Replacement Battery

APCRBC152

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

168 Watts

Extendable Run Time

1

Communications & Management

Interface Port(s)

RJ-45 Serial, Smart-Slot, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

340Joules

Physical

Maximum Height

85MM, 8.5CM

Maximum Width

432MM, 43.2CM

Maximum Depth

635MM, 63.5CM

Net Weight

31.3KG

Shipping weight

39.92KG

Shipping Height

246MM, 24.6CM

Shipping Width

599MM, 59.9CM

Shipping Depth

871MM, 87.1CM

Color

Black

Units per Pallet

6.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

703.0BTU/hr

Protection Class

IP20

Conformance

Approvals

CE, CE Mark, CSA C22.2 No 107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR V2.0 (USA), FCC part 15 class A, OSHPD, RCM, UL 1778, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS

Compliant

Proposition 65 Warning

Available in Documentation tab
