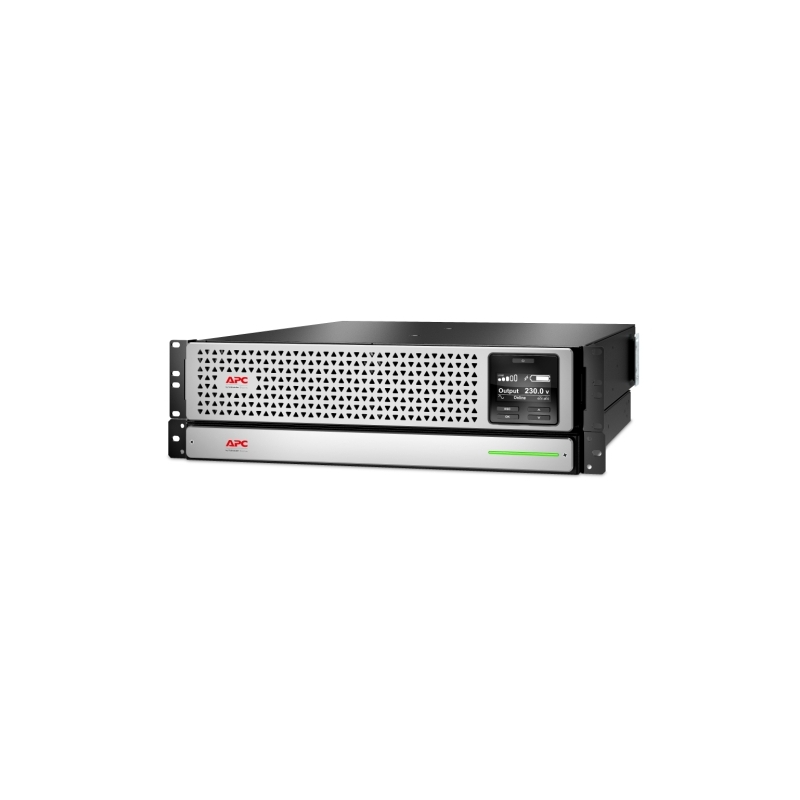

APC Smart-UPS On-Line, 1000VA, Lithium-ion, Rackmount 3U, 230V, 8x C13 IEC outlets, SmartSlot, Extended runtime

APC Smart-UPS On-Line, 1000VA, Lithium-ion, Rackmount 3U, 230V, 8x C13 IEC outlets, SmartSlot, Extended runtime

2.687,50 €

Κωδικός προϊόντος: SRTL1000RMXLI Κατηγορία:

Περιγραφή

APC Smart-UPS On-Line, 1000VA, Lithium-ion, Rackmount 3U, 230V, 8x C13 IEC outlets, SmartSlot, Extended runtime, Rail kit included
High density, double-conversion on-line power protection with scalable runtime.
Includes: CD with software, Communication cable, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card

Technical Specifications:

Output

Max Configurable Power (Watts)

900 Watts / 1.0kVA

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Built-in bypass

Input

Input frequency

40 – 70 Hz Auto-sensing

Input voltage range for main operations

50 – 150 40% load, 80 – 150V

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Li-Ion (Lithium-Ion)

Typical recharge time

6hour(s)

Nominal Battery Voltage

48 V

Expected Battery Life (years)

5 – 10

Battery Charge Power (Watts)

103 Watts

Extendable Run Time

1

Battery Volt-Amp-Hour Capacity

585

Runtime

View Runtime Graph

Communications & Management

Interface Port(s)

RJ-45 Serial, Smart-Slot, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

340Joules

Physical

Maximum Height

128MM, 12.8CM

Maximum Width

432MM, 43.2CM

Maximum Depth

590MM, 59.0CM

Net Weight

30.53KG

Shipping weight

46.86KG

Shipping Height

445MM, 44.5CM

Shipping Width

600MM, 60.0CM

Shipping Depth

850MM, 85.0CM

Color

Black

Units per Pallet

6.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

50.0dBA

Online thermal dissipation

400.0BTU/hr

Protection Class

IP20

Conformance

Approvals

CE, CE Mark, EAC, RCM, VDE

Standard warranty

5 year repair or replace

Sustainable Offer Status

RoHS

Compliant
