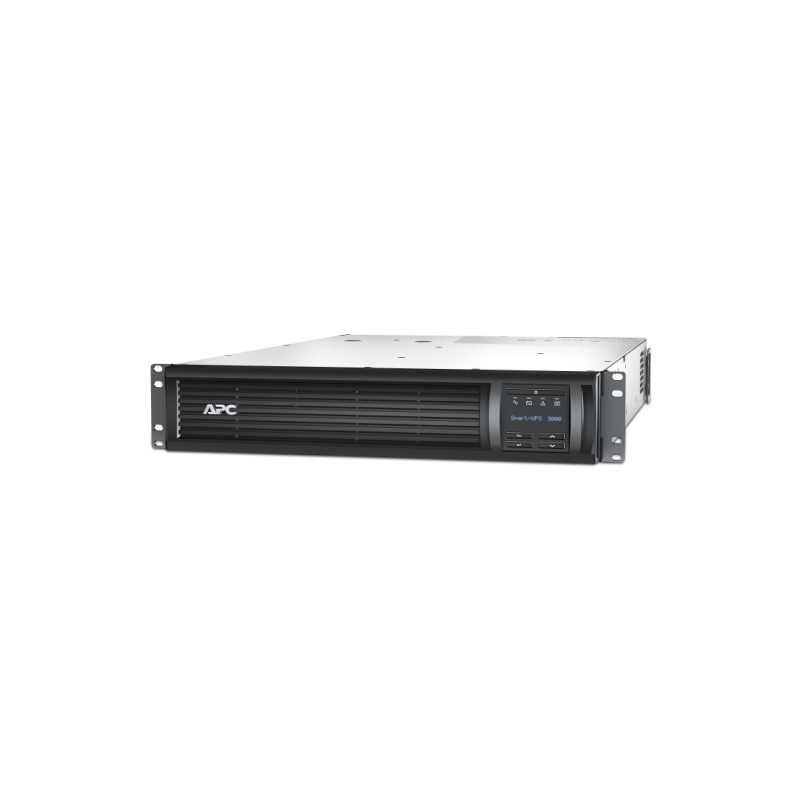

APC Smart-UPS, Line Interactive, 3kVA, Rackmount 2U, 230V, 8x IEC C13+2x IEC C19 outlets, SmartSlot, 6-year warranty, AVR, LCD

APC Smart-UPS, Line Interactive, 3kVA, Rackmount 2U, 230V, 8x IEC C13+2x IEC C19 outlets, SmartSlot, 6-year warranty, AVR, LCD

3.125,00 €

Κωδικός προϊόντος: SMT3000R2I-6W Κατηγορία:

Περιγραφή

APC Smart-UPS, Line Interactive, 3kVA, Rackmount 2U, 230V, 8x IEC C13+2x IEC C19 outlets, SmartSlot, 6-year warranty, AVR, LCD
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Rack mounting hardware, Rack mounting support rails, Smart UPS signalling RS-232 cable, USB cable
Technical Specifications:

Output

Max Configurable Power (Watts)

2.7kWatts / 3.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Frequency (sync to mains)

47 – 53 Hz For 50 Hz nominal Sync to mains, 50 Hz +/- 0.1 % For 50 Hz nominal Unsynchronised, 57 – 63 Hz For 60 Hz nominal Sync to mains, 60 Hz +/- 0.1 % For 60 Hz nominal Unsynchronised

Other Output Voltages

220 V, 240 V

Topology

Line interactive

Waveform type

Sine wave

Transfer Time

4 ms typical : 8 ms maximum

Input

Input frequency

50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations

151 – 302 Adjustable, 160 – 286V

Number of Power Cords

1

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

3hour(s)

Replacement Battery

RBC43

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

182 Watts

Runtime

View Runtime Graph

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)

USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

320Joules

Physical

Maximum Height

86MM, 8.6CM

Maximum Width

480MM, 48.0CM

Maximum Depth

683MM, 68.3CM

Net Weight

44.28KG

Shipping weight

51.7KG

Shipping Height

254MM, 25.4CM

Shipping Width

600MM, 60.0CM

Shipping Depth

980MM, 98.0CM

Units per Pallet

8.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

348.0BTU/hr

Conformance

Approvals

C-Tick, CE, EAC, EN 60950, EN/IEC 62040-1-1, EN/IEC 62040-2, GS Mark, IRAM, VDE

Standard warranty

6 years (requires registration)

Sustainable Offer Status

RoHS

Compliant
