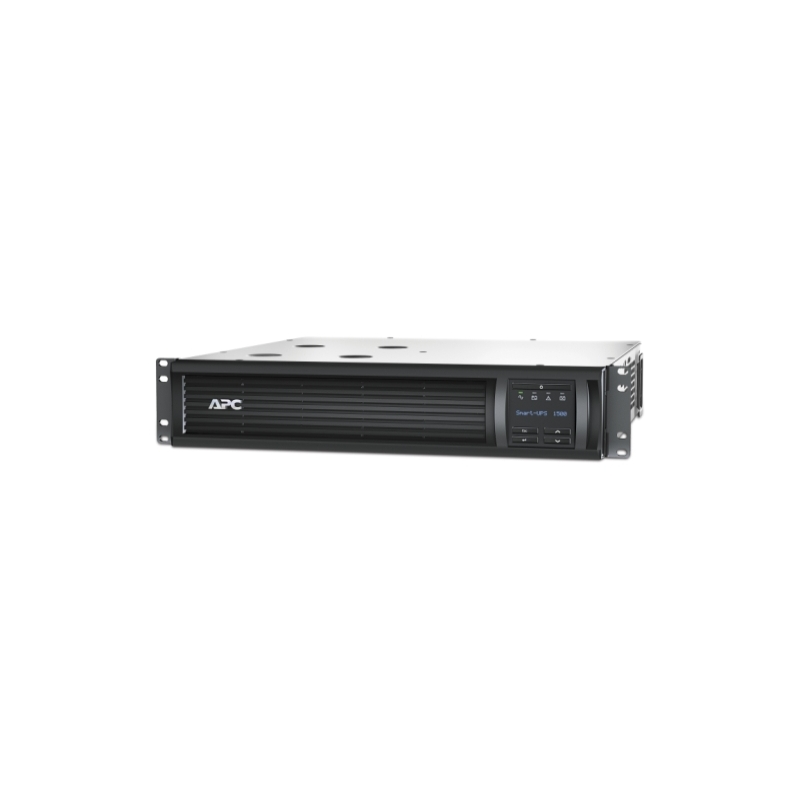

APC Smart-UPS, Line Interactive, 1500VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartSlot, 6-year warranty, AVR, LCD

APC Smart-UPS, Line Interactive, 1500VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartSlot, 6-year warranty, AVR, LCD

1.375,00 €

Κωδικός προϊόντος: SMT1500R2I-6W Κατηγορία:

Περιγραφή

APC Smart-UPS, Line Interactive, 1500VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartSlot, 6-year warranty, AVR, LCD
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Installation guide, Rack mounting support rails, Smart UPS signalling RS-232 cable, USB cable
Technical Specifications:

Output

Max Configurable Power (Watts)

1.0kWatts / 1.5kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 5 % at full load

Output Frequency (sync to mains)

47 – 53 Hz For 50 Hz nominal Sync to mains, 57 – 63 Hz For 60 Hz nominal Sync to mains

Other Output Voltages

220 V, 240 V

Topology

Line interactive

Waveform type

Sine wave

Transfer Time

2 ms typical

Input

Input frequency

50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations

151 – 302 Adjustable, 160 – 286V

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

3hour(s)

Replacement Battery

APCRBC133

Expected Battery Life (years)

4 – 6

RBC Quantity

1

Battery Charge Power (Watts)

144 Watts

Runtime

View Runtime Graph

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)

RJ-45 Serial, SmartSlot, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)

Optional

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

459Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

89MM, 8.9CM

Maximum Width

432MM, 43.2CM

Maximum Depth

457MM, 45.7CM

Net Weight

28.64KG

Shipping weight

31.91KG

Shipping Height

251MM, 25.1CM

Shipping Width

594MM, 59.4CM

Shipping Depth

603MM, 60.3CM

Color

Black

Units per Pallet

8.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

46.0dBA

Online thermal dissipation

90.0BTU/hr

Conformance

Approvals

C-Tick, CE, EN 50091-1, EN 50091-2, TÜV, VDE

Standard warranty

6 years (requires registration)

Sustainable Offer Status

RoHS

Compliant
