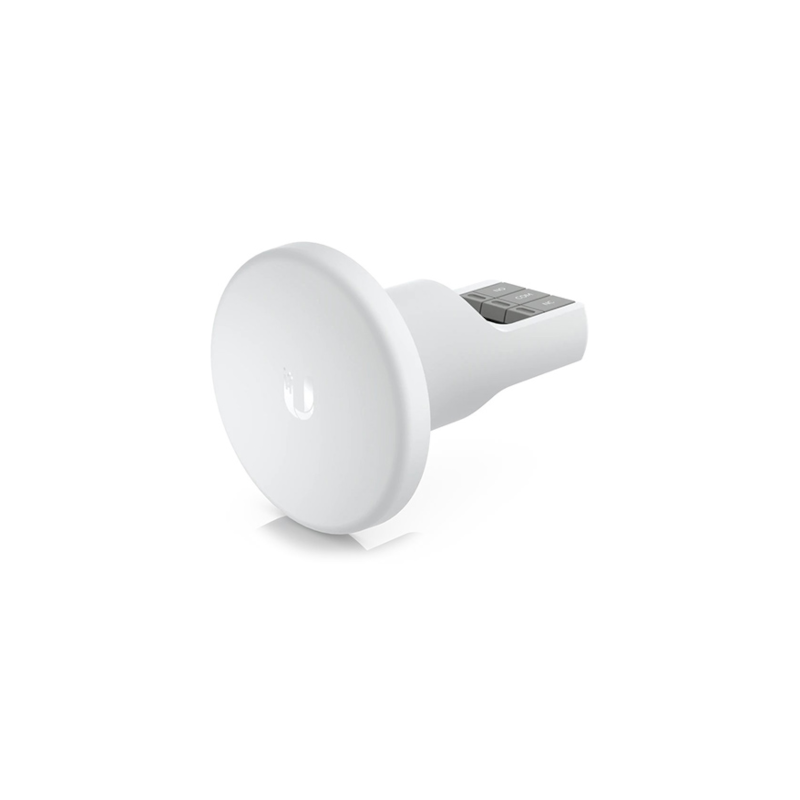

UniFi® Access Rescue KeySwitch is a single pole dual throw manual KeySwitch designed to work with the UniFi Access system. In the event of a system malfunction, the UA-Rescue KeySwitch allows for a user to manually unlock any door controlled by the UniFi Access Hub. Compatible with both Fail Safe and Fail Secure* lock systems, the UniFi Access Rescue KeySwitch is an integral part of any robust Door Access solution.
*Redundant Power for Fail Secure system is NOT included.
Features:
- Emergency key relay switch
- Two included Keys
- Compatible with both Fail Safe and Fail Secure lock systems
Technical Specifications :
| Mechanical | |
|---|---|
| Dimensions | Ø60 x 74 mm (Ø2.4 x 2.9″) |
| Weight | 94 g (3.32 oz) |
| Enclosure Materials | Polycarbonate |
| Hardware | |
| Terminal block | COM/NO/NC 18-24 AWG |
| Key switch | Brass internal wave key, 28VDC, 4A |
| Operating temperature | -30 to 65° C (-22 to 149° F) |
| Storage temperature | -40 to 85° C (-40 to 185° F) |
| Operating humidity | 5 – 95% noncondensing |
| Certifications | FCC, IC, CE |
