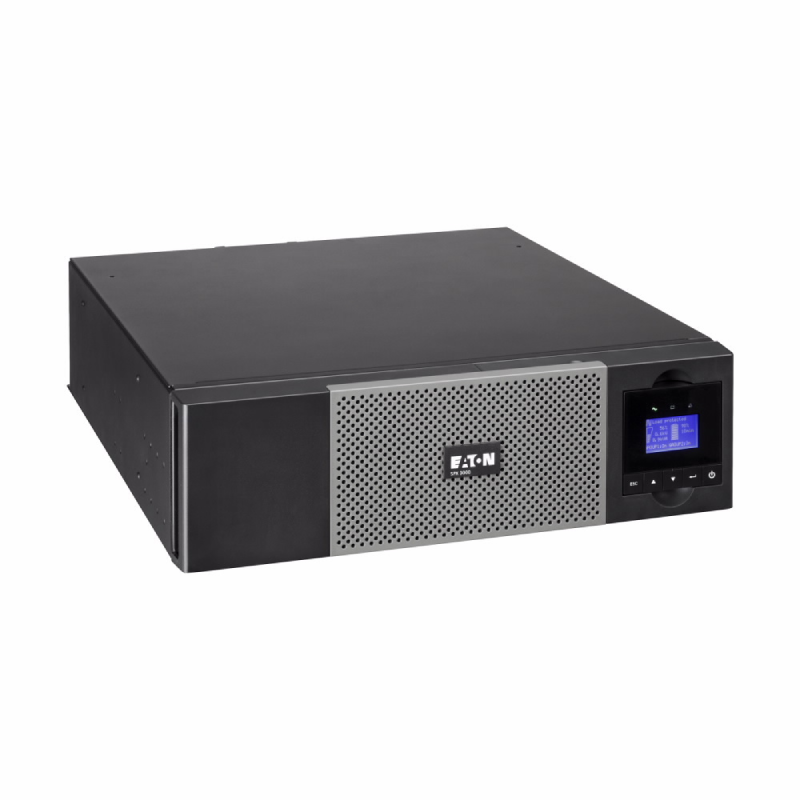

Eaton 5PX UPS, 3000 VA, 2700 W, Input: C20, Outputs: (8) C13, (1) C19, Rack/tower, 3U
Technical Specifications:
PRODUCT NAME
Eaton 5PX UPS
CATALOG NUMBER
5PX3000IRT3U
UPC
743172035967
PRODUCT LENGTH/DEPTH
441 mm
PRODUCT HEIGHT
130.7 mm
PRODUCT WIDTH
497 mm
PRODUCT WEIGHT
37.33 kg
WARRANTY
3 year on electronics, 3 year on batteries with registration
COMPLIANCES
CE Marked
TUV
TUV
CERTIFICATIONS
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
CE
EAC
cTUVus
UL 1778
IEC/EN 62040-2
CE
EAC
cTUVus
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY – MAX
60 Hz
OUTPUT WAVEFORM
Sine wave
MAX NUMBER OF BATTERY PACKS
4
WATTAGE
2700 W
OUTPUT POWER FACTOR
0.9
FORM FACTOR
Rack/tower
ENCLOSURE
Black/silver
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C20
INPUT VOLTAGE – MIN
150 V
OUTPUT VOLTAGE – MAX
240 V
SECONDARY FREQUENCY – MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Lead-acid maintenance-free (replaceable)
EFFICIENCY
97
SPECIAL FEATURES
Automatic Voltage Regulation (AVR)
Energy efficient, reduce energy and cooling costs
Delivers clean sinewave output
Provides more real power (watts) to protect more equipment with a 0.9 power factor
LCD display for real-time status and measurements
Long backup time with up to 4 optional EBM
Meter energy consumption (down to the managed outlet groups)
Versatile product for rack or tower installation
1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Fully integrates with Eaton Intelligent Power Manager software
1 USB port + 1 serial port
Energy efficient, reduce energy and cooling costs
Delivers clean sinewave output
Provides more real power (watts) to protect more equipment with a 0.9 power factor
LCD display for real-time status and measurements
Long backup time with up to 4 optional EBM
Meter energy consumption (down to the managed outlet groups)
Versatile product for rack or tower installation
1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Fully integrates with Eaton Intelligent Power Manager software
1 USB port + 1 serial port
CONSTRUCTION TYPE
482.6 mm (19 inch) device
OUTPUT VOLTAGE – MIN
200 V
COLOR
Black/silver
EXTENDED BATTERY CAPABILITY
Yes
OUTPUT VOLTAGE RANGE
230 V (+6%/-10%)
TOPOLOGY
Line-interactive
BTU RATING
Online: 277
BACK-UP TIME
10 min
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
INPUT FREQUENCY RANGE
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
INPUT VOLTAGE – MAX
294 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C13
8
NUMBER OF OUTPUTS C19
1
VA RATING
3000 VA
POTENTIAL FREE SWITCH CONTACT
Yes
RECEPTACLE
(8) C13, (1) C19
PHASE (INPUT)
1
PACKAGE CONTENTS
Input cable
Rack-mounting kit
(2) Supports for tower mounting
Cable locking system
USB cable
Serial cable
(2) IEC-IEC cables
Quickstart guide
Safety instructions
Rack-mounting kit
(2) Supports for tower mounting
Cable locking system
USB cable
Serial cable
(2) IEC-IEC cables
Quickstart guide
Safety instructions
NOISE LEVEL
<40 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
Multilingual graphical LCD display
BATTERY QUANTITY
6
RACK SIZE
3U
VOLTAGE
230V
INPUT CORD LENGTH
1.8m
TEMPERATURE RANGE
0-90% non-condensing
ETHERNET INTERFACE
No
COMMUNICATION
USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote On/Off and Remote Power Off
Dry contacts (2 outputs, optocoupler, RJ)
Serial port (RS232)
Mini-terminal block for remote On/Off and Remote Power Off
Dry contacts (2 outputs, optocoupler, RJ)
RELATIVE HUMIDITY
0-90% non-condensing
RACK MOUNTING KIT
Yes
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
3 min
TYPE OF INTERFACE
Other
PRIMARY FREQUENCY – MIN
47 Hz
BATTERY RATING
12 V / 9 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
EXPANSION SLOTS
One slot for optional communication card
INPUT VOLTAGE RANGE
160-294 V (adjustable to 150 V-294 V)
NOMINAL FREQUENCY
50-60 Hz
PRIMARY FREQUENCY – MAX
70 Hz
ALTITUDE
3000 m
