Περιγραφή

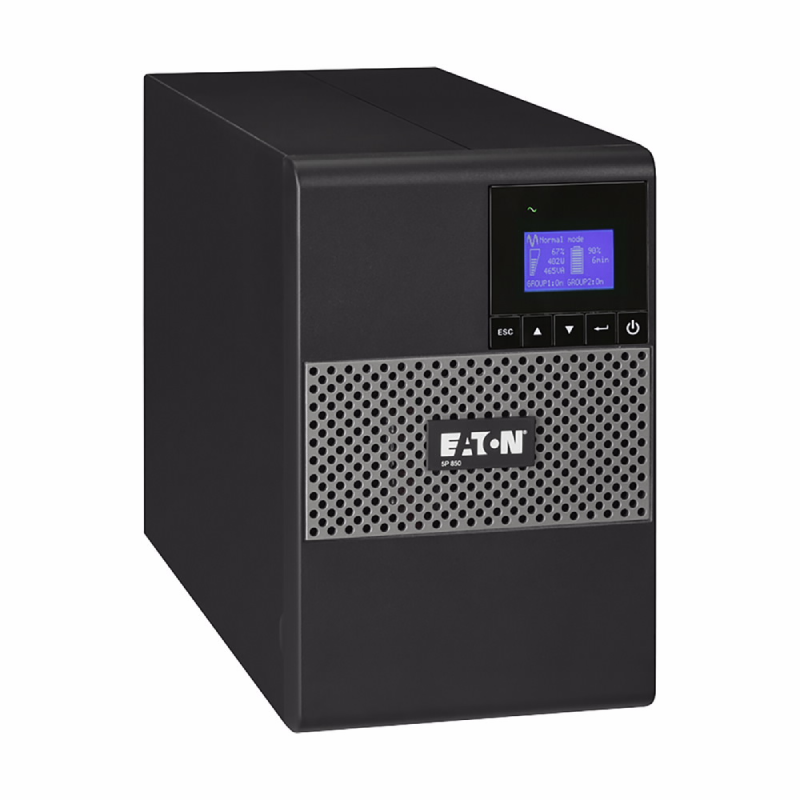

Eaton 5P UPS, 850 VA, 600 W, Input: C14, Outputs: (6) C13, Tower
Technical Specifications:
PRODUCT NAME
Eaton 5P UPS
CATALOG NUMBER
5P850I
UPC
743172042835
PRODUCT LENGTH/DEPTH
150 mm
PRODUCT HEIGHT
230 mm
PRODUCT WIDTH
345 mm
PRODUCT WEIGHT
10.35 kg
COMPLIANCES
CE Marked
TUV
TUV
CERTIFICATIONS
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
CE
EAC
cTUVus
UL 1778
IEC/EN 62040-2
CE
EAC
cTUVus
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY – MAX
60 Hz
OUTPUT WAVEFORM
Sine wave
WATTAGE
600 W
OUTPUT POWER FACTOR
0.7
FORM FACTOR
Tower
ENCLOSURE
Black/silver
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C14
INPUT VOLTAGE – MIN
150 V
OUTPUT VOLTAGE – MAX
240 V
SECONDARY FREQUENCY – MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Lead-acid maintenance-free (replaceable)
EFFICIENCY
97
SPECIAL FEATURES
Automatic Voltage Regulation (AVR)
Energy efficient, reduce energy and cooling costs
Delivers clean sinewave output
1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Fully integrates with Eaton Intelligent Power Manager software
1 USB port + 1 serial port
Advanced Battery Management (ABM) technology to increase battery lifetime
Next-generation graphical LCD display
Hot swappable batteries
Remote reboot and runtime optimization thanks to 2 manageable outlet groups
Remote ON/OFF and remote Power OFF connectors
Energy efficient, reduce energy and cooling costs
Delivers clean sinewave output
1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Fully integrates with Eaton Intelligent Power Manager software
1 USB port + 1 serial port
Advanced Battery Management (ABM) technology to increase battery lifetime
Next-generation graphical LCD display
Hot swappable batteries
Remote reboot and runtime optimization thanks to 2 manageable outlet groups
Remote ON/OFF and remote Power OFF connectors
CONSTRUCTION TYPE
Free standing model
OUTPUT VOLTAGE – MIN
200 V
COLOR
Black/silver
EXTENDED BATTERY CAPABILITY
No
OUTPUT VOLTAGE RANGE
230 V (+6%/-10%)
TOPOLOGY
Line-interactive
BTU RATING
Online: 123
BACK-UP TIME
12 min
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
INPUT FREQUENCY RANGE
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
INPUT VOLTAGE – MAX
294 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C13
6
VA RATING
850 VA
POTENTIAL FREE SWITCH CONTACT
Yes
RECEPTACLE
(6) C13
PHASE (INPUT)
1
PACKAGE CONTENTS
USB cable
Serial cable
(2) IEC-IEC cables
Quickstart guide
Safety instructions
Serial cable
(2) IEC-IEC cables
Quickstart guide
Safety instructions
NOISE LEVEL
<40 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
Multilingual graphical LCD display
BATTERY QUANTITY
2
VOLTAGE
230V
TEMPERATURE RANGE
0-90% non-condensing
ETHERNET INTERFACE
No
COMMUNICATION
USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote On/Off and Remote Power Off
Dry contacts (2 outputs, optocoupler, RJ)
Serial port (RS232)
Mini-terminal block for remote On/Off and Remote Power Off
Dry contacts (2 outputs, optocoupler, RJ)
RELATIVE HUMIDITY
0-90% non-condensing
RACK MOUNTING KIT
No
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
4 min
TYPE OF INTERFACE
Other
PRIMARY FREQUENCY – MIN
47 Hz
BATTERY RATING
12 V / 7 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
EXPANSION SLOTS
One slot for optional communication card
INPUT VOLTAGE RANGE
160-294 V (adjustable to 150 V-294 V)
NOMINAL FREQUENCY
50-60 Hz
PRIMARY FREQUENCY – MAX
70 Hz
ALTITUDE
2000 m
