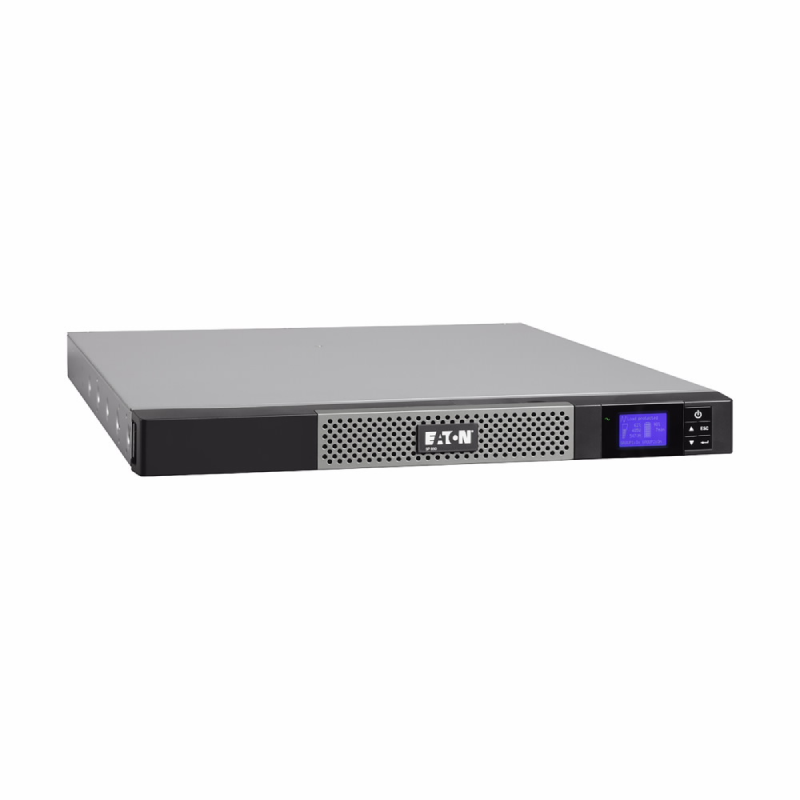

Eaton 5P UPS, 1150 VA, 770 W, Input: C14, Outputs: (6) C13, Rack, 1U
Technical Specifications:
PRODUCT NAME
Eaton 5P UPS
CATALOG NUMBER
5P1150IR
PRODUCT LENGTH/DEPTH
438 mm
PRODUCT HEIGHT
43.2 mm
PRODUCT WIDTH
509 mm
PRODUCT WEIGHT
14.64 kg
WARRANTY
3 year on electronics, 2 year on battery
COMPLIANCES
CE Marked
TUV
TUV
CERTIFICATIONS
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
CE
EAC
cTUVus
UL 1778
IEC/EN 62040-2
CE
EAC
cTUVus
UPC
743172042927
BATTERY
RUNTIME GRAPH
View runtime graph
BATTERY TYPE
Lead-acid maintenance-free (replaceable)
BATTERY REPLACEMENT
User replaceable
BATTERY QUANTITY
2
BATTERY MANAGEMENT
ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
BATTERY RATING
12 V / 9 Ah
EXTENDED BATTERY CAPABILITY
No
ELECTRICAL OUTPUT
VOLTAGE
230V
RECEPTACLE
(6) C13
WATTAGE
770 W
OUTPUT VOLTAGE RANGE
230 V (+6%/-10%)
OUTPUT FREQUENCY
50/60 Hz
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
TOPOLOGY
Line-interactive
ELECTRICAL INPUT
INPUT CONNECTION
C14
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
NOMINAL FREQUENCY
50-60 Hz
INPUT VOLTAGE RANGE
160-294 V (adjustable to 150 V-294 V)
INPUT FREQUENCY RANGE
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
COMMUNICATIONS
COMMUNICATION
USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote On/Off and Remote Power Off
Dry contacts (2 outputs, optocoupler, RJ)
Serial port (RS232)
Mini-terminal block for remote On/Off and Remote Power Off
Dry contacts (2 outputs, optocoupler, RJ)
ETHERNET INTERFACE
No
POTENTIAL FREE SWITCH CONTACT
Yes
EXPANSION SLOTS
One slot for optional communication card
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
TYPE OF INTERFACE
Other
ENVIRONMENTAL
ALTITUDE
2000 m
NOISE LEVEL
<40 dB at 1 meter
TEMPERATURE RANGE
0-90% non-condensing
BTU RATING
Online: 158
RELATIVE HUMIDITY
0-90% non-condensing
ADDITIONAL SPECIFICATIONS
FORM FACTOR
Rack
CONSTRUCTION TYPE
482.6 mm (19 inch) device
ENCLOSURE
Black/silver
PACKAGE CONTENTS
Rack-mounting kit
Cable locking system
USB cable
Serial cable
(2) IEC-IEC cables
Quickstart guide
Safety instructions
Cable locking system
USB cable
Serial cable
(2) IEC-IEC cables
Quickstart guide
Safety instructions
PHASE (OUTPUT)
1
AUTO SHUTDOWN FUNCTION
Yes
RACK SIZE
1U
COLOR
Black/silver
RACK MOUNTING KIT
Yes
EFFICIENCY
97
PHASE (INPUT)
1
