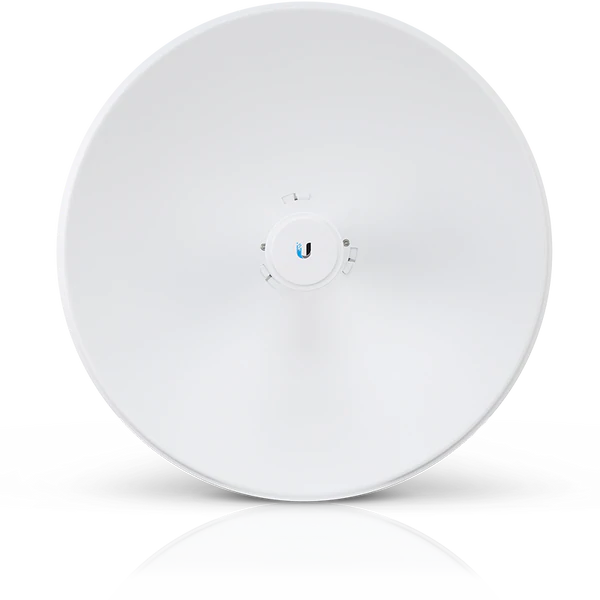

Ubiquiti PowerBeam AC GEN2 5-pack
Ubiquiti Networks launches the second generation of airMAX® CPE (Customer Premises Equipment), the PowerBeam® 5AC Gen 2, with dedicated Wi-Fi management.
The PowerBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative design, the PowerBeam 5AC Gen 2 is versatile and cost-effective to deploy.
The second generation devices work under airOS® v8 software – the revolutionary operating system for Ubiquiti® airMAX ac products.
Powerful dish reflector design with proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UISP mobile app support and fast setup. Excellent beam directivity provides the best performance for PtP or PtMP links located in high-noise environments.
Features:
- Improved radio design
- Improved mounting
- Improved surge protection
- Management WiFi Radio/UISP mobile app
- AirOS 8
Technical Specifications:
| PBE-5AC-Gen2 | |
|---|---|
| Dimensions | 420 x 420 x 230mm (16.54 x 16.54 x 9.06″) |
| Weight | 2.22 kg (4.89 lb) |
| Processor Specs | MIPS 74Kc |
| Memory | 64 MB |
| LEDs | Power, Ethernet, (4) Signal Strength |
| Chanel Sizes PtP Modes PtMP Mode |
10/20/30/40/50/60/80 MHz 10/20/30/40 MHz |
| Enclosure Characteristics Antenna Feed Dish Reflector |
Outdoor UV Stabilized Plastic Powder-Coated SPCC |
| Gain | 25 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor Specs | MIPS 74Kc |
| Enclosure Characteristics | Antenna Feed: Outdoor UV Stabilized Plastic Dish Reflector: Powder-Coated SPCC |
| Max. Power Consumption | 8.5W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20 to 26VDC |
| Wind Loading | 380 N @ 200 km/h (85.4lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Certifications | CE, FCC, IC |
| Mounting | Pole-Mount (Kit Included) |
| Operating Temperature | -40 to 70 C (-40 to 158 F) |
| Operating Humidity | 5 to 95% Noncondensing |
| RoHS Compliance | Yes |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150-5250 5250-5350 5240-5725 5725-5850 |
| Management Radio (MHz) | |
| Worldwide | 2412 – 2472 |
| US/CA | 2412 – 2462 |
