Περιγραφή

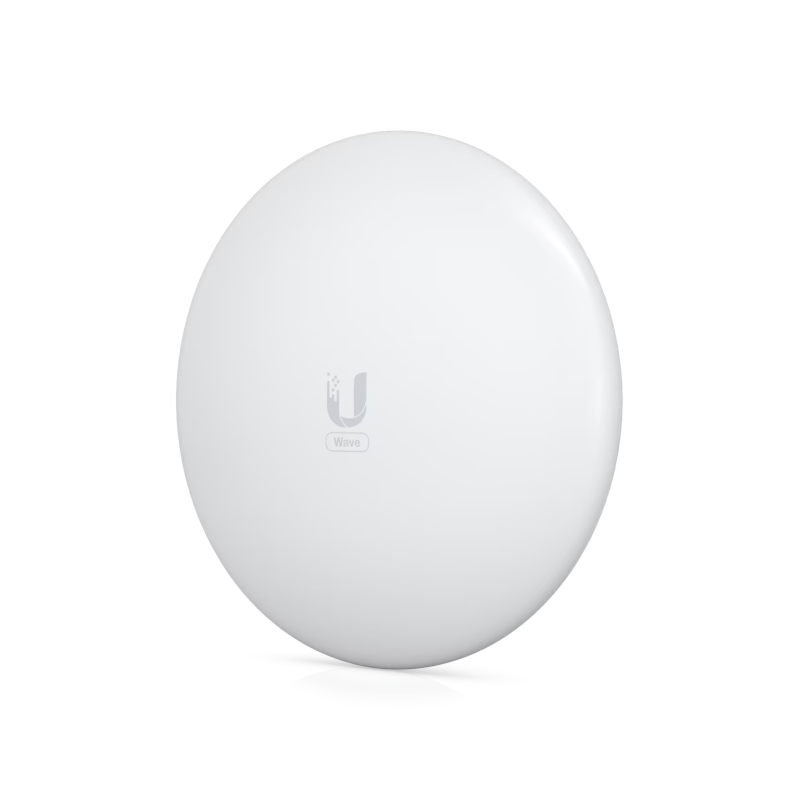

Wave Long Range is 60 GHz base station powered by Wave Technology. It is designed for use in PtMP applications. The operating frequency (from 57 to 71 GHz) depends on the regulatory region. The Wave Long Range can be connected to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The base station is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
Thanks to UISP app you can centrally manage your networks and clients with ease. Simply organize your clients’ plans, setup billing and invoicing, and grow your customer base. UISP application allows viewing network topology, advanced data analytics, quickly set up devices and manage them on the go with a powerful mobile app. Managed with the UISP application: Version 1.4.5 and later.
Features:
- 5 GHz backup radio
- Link range: up to 8 km
- Bridge/ Router mode support
- Integrated GPS antenna
- Link planning support via ISP Design Center
Technical Specifications:
| Mechanical | |
|---|---|
| Dimensions | Ø424.4 x 166.2 mm (Ø16.7 x 6.5″) |
| Weight | Without mount: 2.59 kg (5.7 lb) With mount: 3.79 kg (8.4 lb) |
| Enclosure material | UV stabilized plastic |
| Mount material | Galvanized steel |
| Pole mount diameter | 25 to 76.2 mm (1 to 3″) on pipe outer diameter |
| Wind loading | 286 N at 200 km/h (64.3 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Dual ARM® Cortex®-A53 cores at 1 GHz |
| Memory | DDR3L 512 MB |
| Networking interface | (1) GbE RJ45 port |
| Max. power consumption | 18W |
| Power method | 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8- ) or 2-pairs (4, 5+; 7, 8- ) 24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8- ) |
| Power supply | 48V DC, 0.65A gigabit PoE adapter (included) Can be powered by a UISP Router or UISP Switch |
| GPS | Yes |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS, link |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| OS | airOS® |
| Operating mode | PtMP station |
| Ubiquiti specific features | Wave AI, discovery protocol |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Network | Bridge/Router mode |
| Software management | Bluetooth management for easy setup over UISP app WEB UI |
| Minimum software requirements | Any modern web browser/iOS™ or Android™ based smartphone |
| System | |
| Total throughput | 2 Gbps (1 Gbps duplex) |
| Maximum range | 8+ km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57 to 71 GHz *Depends on regulatory region. |
| Channel bandwidth | 2160, 1080 MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 46 dBi |
| Azimuth and elevation beamwidth | 3 dB: 0.8° 6 dB: 1.1° |
| Back-Up RF | |
| WiFi standard | 802.11ax (WiFi 6) |
| Operating frequency* US/CAWorldwide |
U-NII-1 5150 – 5250 MHz U-NII-2A 5250 – 5350 MHz U-NII-2C 5470 – 5725 MHz U-NII-3 5725 – 5850 MHz5150 – 5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna gain | 22 dBi |
| Polarization | Dual-linear |
| Cross-pol isolation | 20 dB |
| Azimuth and elevation beamwidth | 3 dB: 8 to 10° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
| Ethernet | Flashing blue: Ethernet traffic detected |
| GPS | Blue: receiving at least (4) GPS satellite signal |
| Links | White: 5GHz link Blue: 60GHz link |
