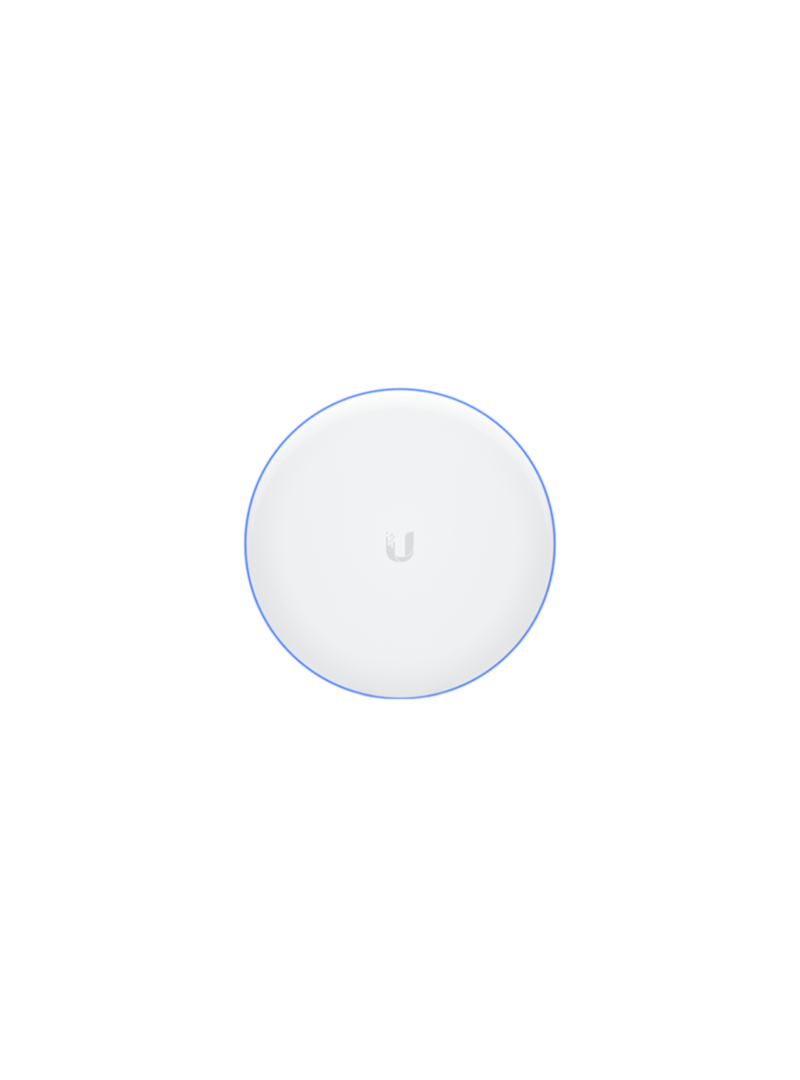

UBB-XG is a 60 GHz wireless bridge with 5 GHz radio for backup. Thanks to 10 Gbps SFP+ interface, 5 GHz Radio Redundancy and UniFi Network Management, the UBB-XG allows reaching the 6Gbps throughput rate and range of up to 500 m. UniFi® Building-to-Building Bridge is the ideal solution for short-range, high-throughput connectivity.
As a pack of two radios, UniFi Building-to-Building Bridge contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use gigabit connectivity anywhere. Use the integrated outer diameter alignment LED indicator to adjust the UBB position for optimal signal to the other bridge device.
Thanks to UniFi Network Application you will be able to centrally manage multiple networks from an intuitive interface; enjoy real-time device insights and deep configuration options; upgrade device firmware remotely; personalize the design, architecture, and privacy of guest hotspots; set up devices quickly and manage them on the go with a powerful mobile app.
Managed with the UniFi Network application: Version 6.3 and later.
Package Contents:
- UniFi Building-to-Building Bridge (x2)
- Mounting kit (x2)
- Gigabit PoE (48V, 0.32A) with mounting bracket (x2)
- Power cord (x2)
Technical Specifications :
| Mechanical | |
|---|---|
| Dimensions | Ø191.8 x 59 mm (Ø7.6 x 2.3″) |
| Weight | Without mount: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb) |
| Enclosure materials | Aluminum alloy, UV-resistant polycarbonate |
| Mount material | Stainless steel |
| Mounting | 60G precision alignment pole mount (Included) Pole compatibility: Ø25.4-63.5 mm (Ø1-2.5″) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| Management interface | Ethernet Bluetooth |
| Power method | PoE++ Passive PoE [4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8- ) or 2-pairs (4, 5+; 7, 8-)] |
| Power supply | UniFi PoE switch 48V, 0.65A Gigabit PoE adapter (included) |
| Supported voltage range | 48V DC ± 10% |
| Max. power consumption | 31.2W |
| Throughput rate 5 GHz 60 GHz |
866.6 Mbps 6 Gbps |
| Maximum range | 500+ m (1,640+ ft) |
| LEDs | R/G/B |
| Button | Factory-reset |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, terragraph |
| Software | |
| WiFi standards | 802.11ad/ay 802.11ac (WiFi 5) |
| Wireless security | WPA2 AES (Always On) |
| Operating modes | PtP |
| VLAN | Management VLAN only |
| RF | |
| Operating frequency* | 57 to 66 GHz *Dependent on regional regulations. |
| Channel bandwidth | 2,160/4,320 MHz (Channel Bonding Enabled) |
| Operating channels* | 58,320/59,400/60,480/61,560/62,640/63,720/64,800 MHz *Dependent on regional regulations. |
| Backup RF | |
| Operating frequency* US/CAWorldwide |
U-NII-1: 5,150 – 5,250 MHz U-NII-2A: 5,250 – 5,350 MHz U-NII-2C: 5,470 – 5,725 MHz U-NII-3: 5,725 – 5,850 MHz5,150 – 5,725 MHz *Dependent on regional regulations. |
| Channel bandwidth | 20/40/80 MHz |
