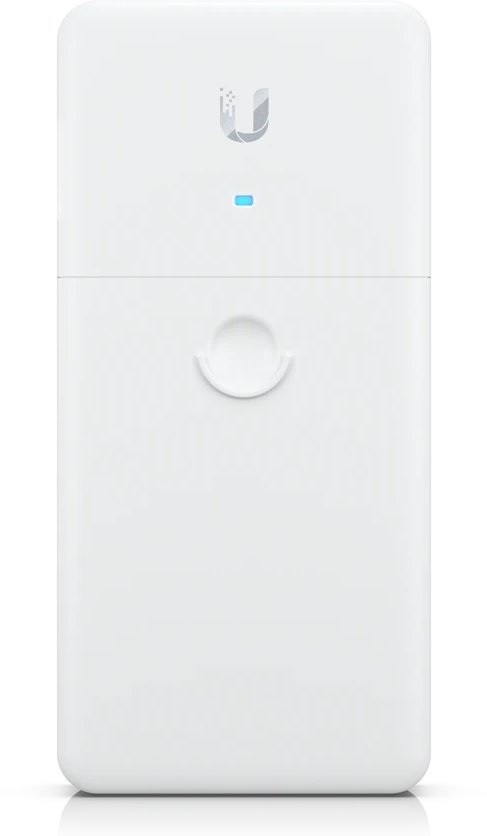

Long-range Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE output.
Extend PoE connections up to 1 km*
(1) GbE RJ45 port for PoE/PoE+ input**
(1) GbE RJ45 port for passthrough PoE output
10kA+ surge protection
Works reliably in extreme temperatures (-40 to 80° C)
*Repeaters must be placed in 100 m increments.
**Powered with pins 1, 2+; 3, 6- which may not be supported by certain third-party switches. We recommend using a UniFi switch to power the device.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 196.5 x 93.5 x 39 mm ( 7.7 x 3.7 x 1.5″) |
| Weight | 350 g (12.3 oz) |
| Enclosure material | UV stabilized polycarbonate |
| Mounting material | Stainless steel |
| Weatherproofing | IPX5 |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| PoE interface | (1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-) |
| Power method | PoE/PoE+ 2-pairs (pins 1, 2+; 3, 6-)* *May not be supported by certain third-party switches. We recommend using a UniFi switch to power the device. |
| Max. power consumption (excluding PoE out) | 1.5W |
| Voltage range | 37—57V DC |
| ESD/EMP protection | Air/contact: ± 30kV |
| DC sparkover voltage | 90V at 100V/s |
| Max. impulse sparkover voltage | 700V at 1kV/μs |
| Discharge current | 10kA+ |
| Max. MTU | 1,500 bytes |
| Modes | Long-range indoor Outdoor ethernet repeater |
| Operating temperature | -40 to 80° C (-40 to 176° F) |
| Operating humidity | 10 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Blue: power ON |
| Ethernet | Green: 1 Gbps Amber: 10/100 Mbps |
| PoE | Amber: passthrough PoE out |
