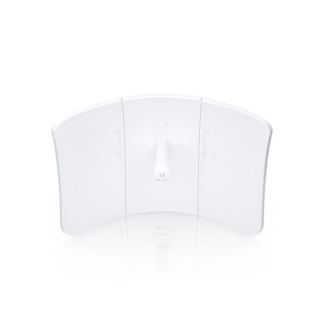

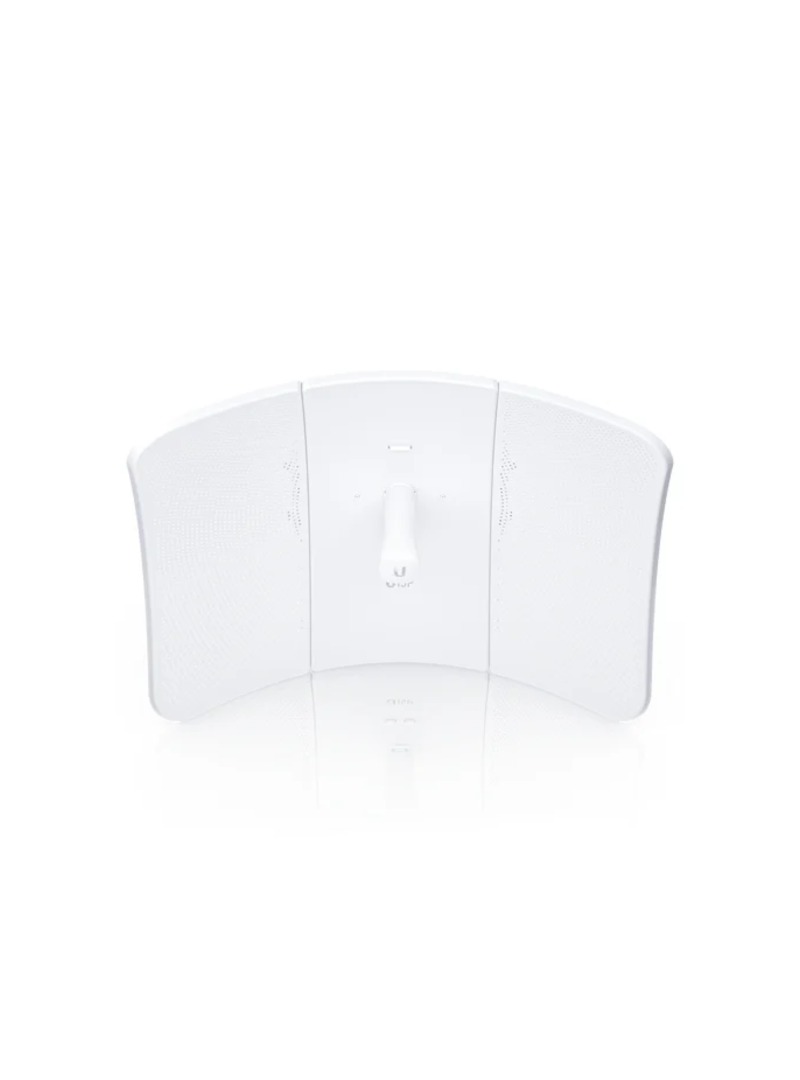

Ultra-lightweight outdoor wireless station designed to create extremely long-distance links.
The airMAX® LiteBeam® AC 5 GHz XR (LBE 5AC XR) is an outdoor, wireless station designed to establish high-speed connections over extremely long distances, allowing you to serve more subscribers with just a single device. The LBE 5AC XR also features a proprietary, high-gain antenna capable of delivering 450+ Mbps throughput over the 5 GHz frequency range. The LiteBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Thanks to Ubiquiti Internet Service Provider (UISP®) application you will be able to centrally manage your networks and clients, organize your clients’ plans, setup billing and invoicing, grow your customer base, view network topology and advanced data analytics.
Features:
- Proprietary airMAX ac chipset
- Ultra-lightweight aluminum alloy and UV-stabilized polycarbonate
- High-gain antenna with InnerFeed® technology
- Establishes high-speed, extremely-long-distance links
- Integrated GPS
- Link planning support via ISP Design Center
- Dedicated management radio for quick device setup via the UISP® Mobile app
Technical Specifications :
| Mechanical | |
|---|---|
| Dimensions | 747 x 525 x 347 mm (29.41 x 20.67 x 13.66″) |
| Weight | 3.2 kg (7.06 lb) |
| Enclosure materials | Aluminum alloy, UV stabilized polycarbonate |
| Mount material | UV stabilized polycarbonate |
| Mounting | Integrated pole mount (included) Pole compatibility: Ø35 to 60 mm (Ø1.38 to 2.36″) |
| Wind loading | 1100 N at 200 km/h (247.29 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8- ) |
| Power supply | 24V DC, 0.5A Gigabit PoE adapter (included) |
| Supported voltage range | 22—26V DC |
| Max. power consumption | 7W |
| RF connections | Internal |
| LEDs | Power/ethernet |
| Button | Factory reset |
| Operating temperature | -40 to 70° C (-40 to 158° F) |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | FCC, IC, CE |
| System | |
| Maximum throughput | 450+ Mbps |
| Encryption | WPA2-PSK (AES) |
| Software | |
| OS | airOS® |
| Modes | PtMP, PtP |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView®, speed test, alignment, discovery, ping, traceroute, constellation |
| Management interface | Dedicated management radio for quick device setup via the UISP™ Mobile app WEB UI |
| Minimum software requirements | Modern Web browser or Android/iOS smartphone |
| RF | |
| Operating frequency* | 5.15 to 5.85 GHz * Depends on regulatory region. |
| Max. conducted TX power | 25 dBm |
| Management radio | 2400 – 2483.5 MHz |
| Channel bandwidth | 10/20/30/40/50/60/80 MHz |
| Antenna Gain | 29 dBi |
| Isolation | 20 dB |
| Beamwidth | HPOL: 3 dB: 5.5°, 6 dB: 7.5° VPOL: 3 dB: 5.5°, 6 dB: 7.5° Elevation: 3 dB: 5.5°, 6 dB: 7.5° |
| Electrical downtilt | 0° |
