What This Product Does

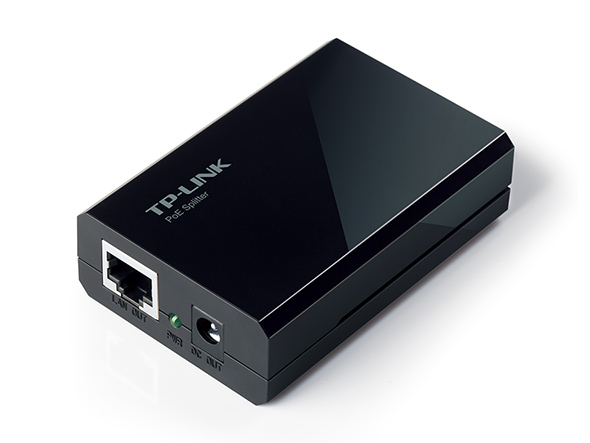

The PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK’s TL-SF1008P or TL-POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
Features
- t
- IEEE 802.3af compliant
- Delivers power up to 100 meters
- Gigabit speed support
- Optional 12V DC 9V DC or 5V DC power supply
- Plug-and-Play, requires no configuration
t
t
t
t
| Hardware Features | |
|---|---|
| Basic Function | Compatible With IEEE 802.3af Compliant PSEs Delivers Power Up To 100 Meters Optional 12VDC, 9VDC or 5VDC Power Supply |
| Interface | 2 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 48VDC POWER INPUT PORT |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| LED Indicator | PWR |
| Dimensions ( W x D x H ) | 3.2*2.1*0.9 in.(80.8*54*24 mm) |
| Power Supply | 12VDC 1A, 9VDC 1A, 5VDC 2A |
| Software Features | |
|---|---|
| Basic Function | Compatible With IEEE 802.3af Compliant PSEs Delivers Power Up To 100 Meters Optional 12VDC, 9VDC or 5VDC Power Supply |
| Others | |
|---|---|
| Certification | FCC, CE, RoHS |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
