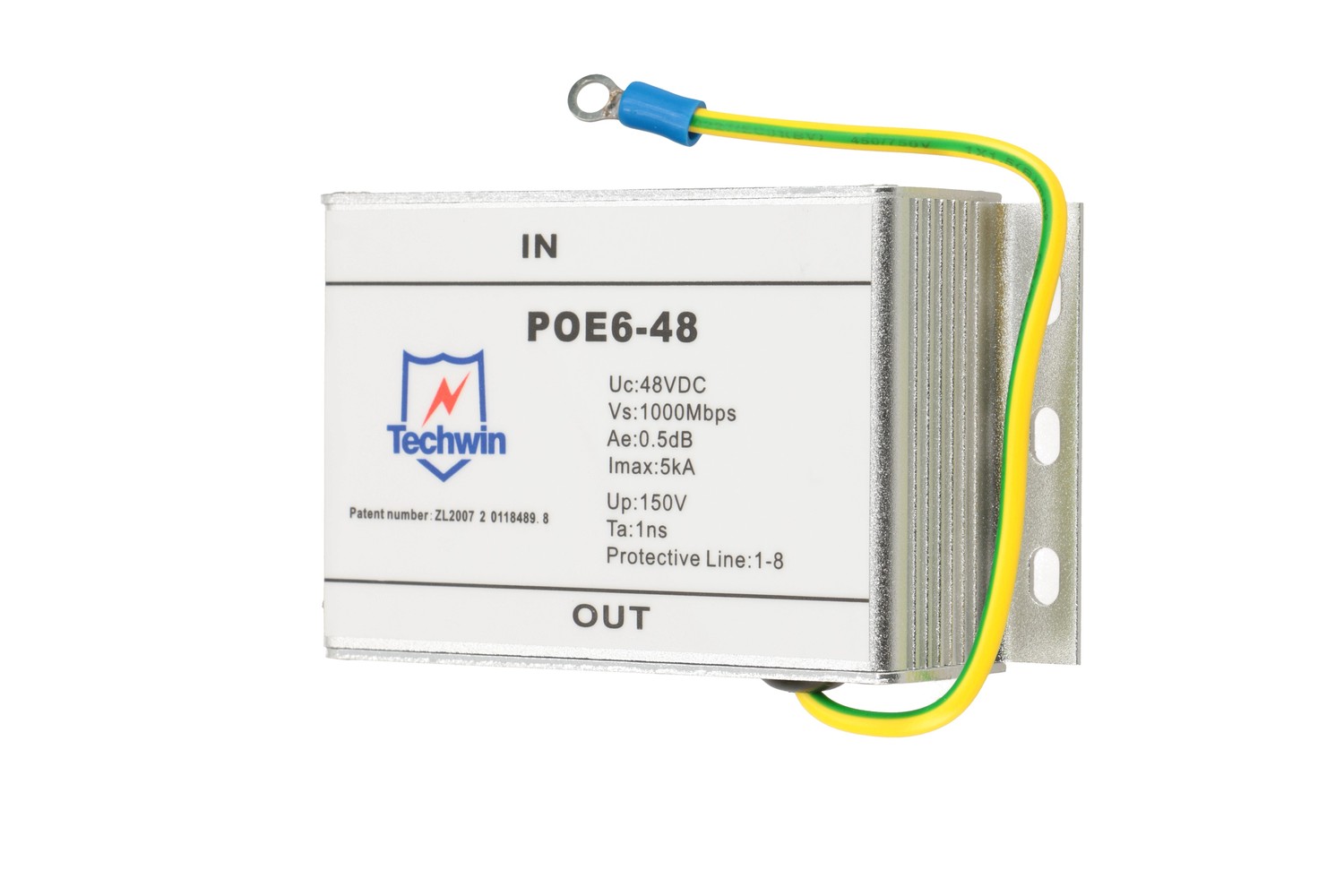

1000Mbps PoE Indoor Surge Protector POE6-48. The model is designed to protect PoE enabled network from lightning over-voltage, transient over-voltage and static discharge. The protector implements multi-level protection circuit with advanced manufacturing process, and has excellent performance on discharge current, limiting voltage, response time, stability and over-all reliability.
FEATURES: ● CAT6, CAT5e and CAT5 compatible ● 802.3af ● 10/100/1000 Base-T Gigabit Ethernet protection ● LAN, FDDI,CDDI, ATM,WLAN ● PDH, SDH, SPDH ● Industrial control ● Multi. Protection circuits, Gas-Tube+ TVS technology ● Dual protection in Common module and different module ● TVS array technology, low capacitance ● Multi-Strike Capability ● IP65 enclosure providing full outdoor operation capability
| Electrical Parameter (Network & Power) | |
| Nominal operating voltage Un | 48V |
| Max. continuous operating voltage Uc | 57V |
| Nominal discharge current(8/20µs)In | 3kA |
| Max. discharge current (8/20µs)Imax | 5kA |
| Limiting voltage Up | |
| Line-line (@6kV, 10/700µs) | ≤150V |
| Line-line (@3kA, 8/20µs) | ≤150V |
| Adapt transmission rate | 1000Mbps |
| Insertion loss | ≤0.5dB |
| Protection line | 1-8 |
| Response time Ta | 1ns |
| Load current | 250mA |
| Application | Cat. 6 |
| Mechanical characteristics | |
| Dimension | 28(H)×48(W)×105(L)mm |
| Weight per unit | 126g |
| Protection grade | IP20 |
| Working conditions | Temperature: -40 to 85℃, Relative humidity: ≤95% |
| Standards compliance | IEC61000, RoHS |
