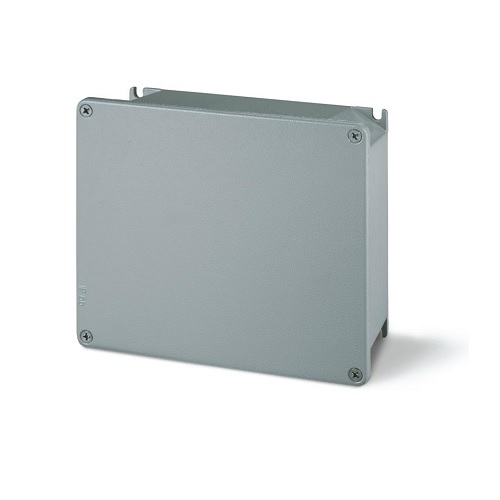

The ALUBOX Series Junction Box is a robust surface-mounted enclosure designed for demanding environments. Measuring 253x217x93mm, it offers superior protection with IP66/IP67/IP69 ratings. Constructed from die-cast aluminum, both the enclosure and cover are externally varnished for enhanced durability. The box features a pre-mounted expanded EPDM seal on the cover, ensuring a reliable seal. It includes steel screws for secure cover attachment and zinc-coated self-tapping steel screws for effective earthing. The grey finish complements its industrial-grade design, making it suitable for various professional applications requiring high protection and reliability.
Specifications
| Tech Data | Commercial Series |
| Series | ALUBOX Series |
| Synthetical description | Junction Box |
| Protection degree | Watertight |
| Protection degree IP | IP66 / IP67 / IP69 |
| Material | Die-cast aluminium |
| Protection degree IK | IK08 |
| Mounting version | Surface mounting |
| Colour | Grey |
| Dimensions | 253 × 217 × 93 mm |
| Catalogue notes | Enclosure and cover in die-cast aluminium; externally varnished; steel screws for attaching cover and self-tapping zinc-coated steel screws for earthing the enclosure and cover; holding seal in expanded EPDM, pre-mounted on the cover; enclosures and covers in aluminium alloy with blank walls and covered |
