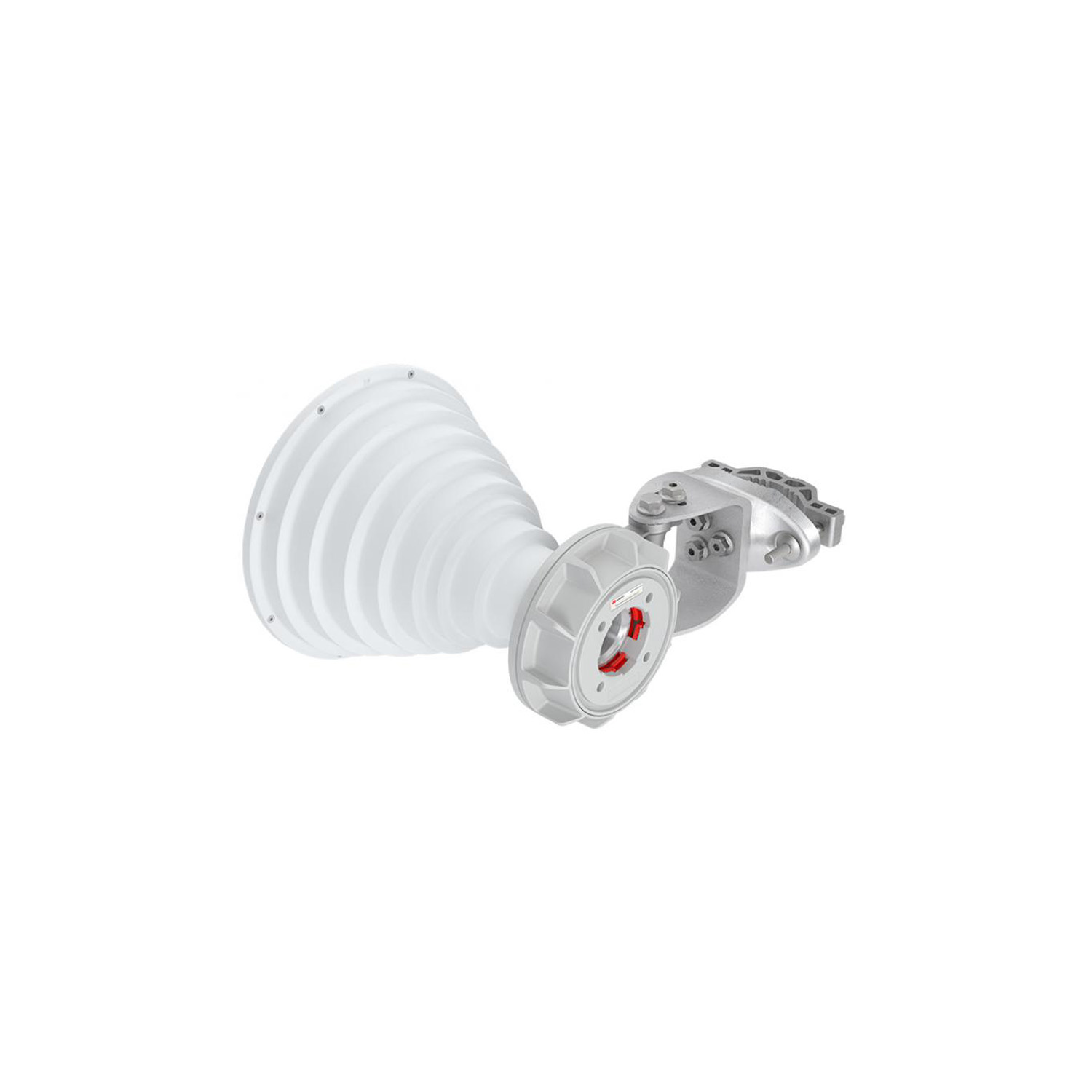

HG3-TP-S30 Symmetrical Horn Antenna has a symmetrical beam pattern with no sidelobes. It offers excellent noise rejection and supreme scalability options. It is perfect for high-density AP clusters and dense radio co-location. Symmetrical Horn TP Antennas Gen2 feature our industry-changing TwistPort™ connector, a patent-pending quick-locking waveguide port. TwistPort™ is virtually lossless and revolutionary easy to use. Symmetrical Horn TP Antennas Gen2 feature multiple improvements on RF performance and industrial design, incl. optically lighter antenna body and significantly improved antenna bracket. Radome is made of more resistant material and the whole range of Gen2 antennas only uses two different radome sizes. Features of Symmetrical Horn TP Antennas Gen2
- t
- Unique Beam Performance
- No Side Lobes
- Wideband Performance
- Excellent Gain Across Spectrum
- Coverage Without Null
- Co-Location Miracle
- Breakthrough Scalability
- Ultimate Spectrum Efficiency For Everyone
- TwistPortTM Connector
- Cross-Platform Compatibility
- Compact Size
- Easy Installation
- Robust and Durable
- Unique Bracket Features
- Seven Different Radiation Angles
t
t
t
t
t
t
t
t
t
t
t
t
t
t
HG3-TP-S30 Specifications
TECHNICAL DATA
| Antenna Connection | TwistPort™ – Quick Locking Waveguide Port |
| Antenna Type | Horn |
| Materials | UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminium, Stainless Steel |
| Enviromental | IP55 |
| Flame Rating | UL 94 HB |
| Pole Mounting Diameter | 30-80 mm (we recommend as close to 80mm as possible) |
| Temperature | -30°C to +55°C (-22°F to +131°F) |
| Wind Survival | 160 km/hour |
| Wind Loading | 44 N at 160 km/hour |
| Mechanical Tilt | ± 25° |
| Weight | 1.9 Kg / 4.1 lbs – single unit 3.3 Kg / 7.3 lbs – single unit incl. package 17.4 Kg / 38 lbs – carton (5 units) |
| Single Unit | Retail Box: 412 × 277 × 234 mm / 16.2 x 10.9 x 9.2 inch |
| 5 Units | Carton Box: 1190 × 300 × 440 mm / 46.8 x 11.8 x 17.3 inch |
PERFORMANCE
| Frequency Range | 5180 – 6400 MHz |
| Gain | 18.4 dBi |
| Azimuth Beam Width | -3 dB H 21° / V 21° |
| Elevation Beam Width | -3 dB H 21° / V 21° |
| Azimuth Beam Width | -6 dB H 30° / V 30° |
| Elevation Beam Width | -6 dB H 30° / V 30° |
| Beam Efficiency** | 94% |
| Front-to-Back Ratio | 37 dB |
