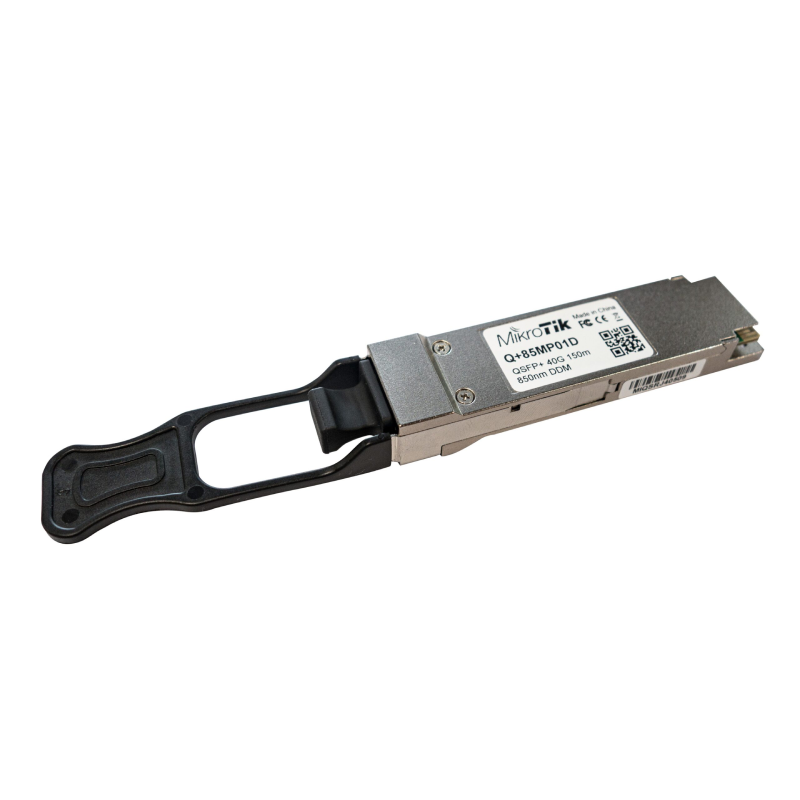

Mikrotik Q+85MP01D
This is an optical module with MTP/MPO connector for 12-fiber array that requires Female-Female Type-B polarity MTP/MPO optical cable, which offers 4 independent full-duplex channels with up to 10 Gbps per channel bandwidth and aggregate bandwidth of 40 Gbps.
It can provide a connection over 100 m on OM3 Multimode Fiber (MMF) and 150 m on OM4 MMF. The module has built-in digital diagnostic functions, including optical power monitoring, and will perform well in environments up to 70° C.
It has been designed to meet the harshest conditions, including temperature, humidity and EMI interference, so we definitely recommend this as a reliable solution for all your 40 Gbps QSFP+ devices.
Technical Specifications:
| Transmit | Min | Type | Max | Unit |
| Output opt. power | -7.6 | – +2.4 | dBm | |
| Receive | ||||
| Avg Rx sensitivity | -9.9 | – | +2.4 | dBm |
| Max received pwr | +2.5 | – | – | dBm |
| LOS de-assert | – | – | -12 | dBm |
| LOS assert | -30 | – | – | dBm |
