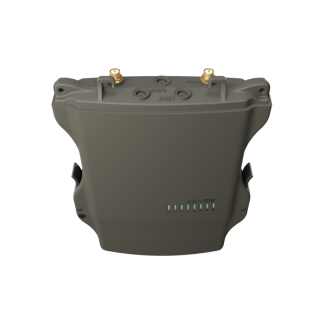

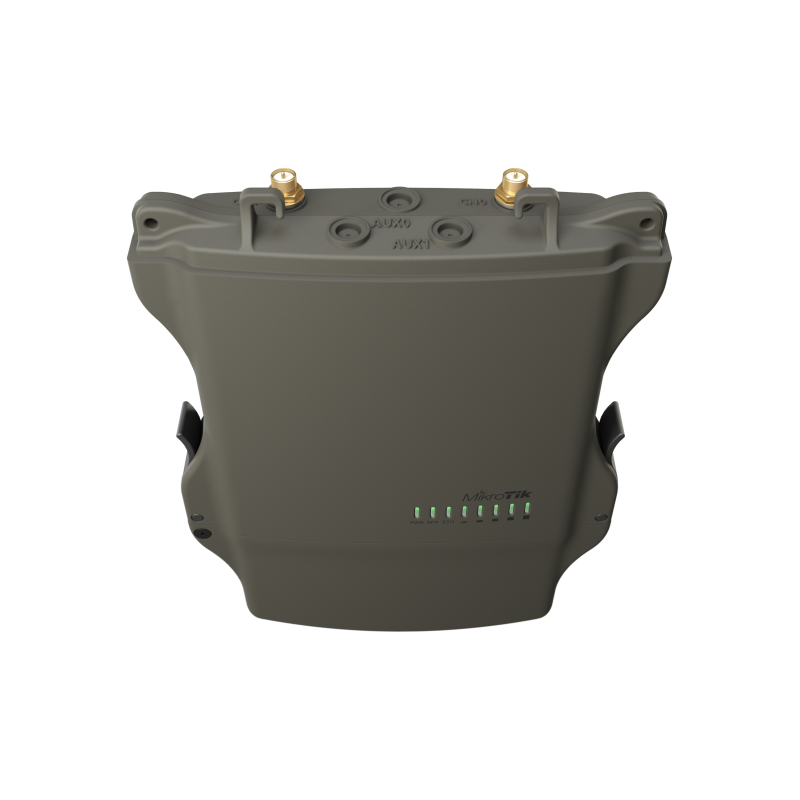

NetMetal ac²
More power and advanced features, with the same design philosophy as its predecessors – the new NetMetal ac² AP is sturdy, reliable, easy to use and extremely capable. This is the best way to add IPsec hardware acceleration to your backhaul link! We have added an out-of-the-box 2.4/5 GHz dual-concurrent (2.4GHz and 5GHz can be used at the same time) band support – no need for additional tinkering!
NetMetal ac² can handle massive loads, as it features an improved 4-core CPU and 256 MB RAM. There is a miniPCIe slot for an LTE or other wireless modules and an SFP port for fiber. The NetMetal ac² can be a very adaptable addition for all kinds of setups.
Two RP-SMA connectors allow adding an antenna of your choice. If necessary, you can adapt the NetMetal ac² for lower range use with such antennas as our HGO-antenna-OUT screw-on omni antenna unit (not included; available for ordering seperately)
The enclosure has an IP rating of IP66 with protection against splashing from any angle, but it can still be opened and closed with one hand. Very handy in rough environments!
Technical Specifications:
| Architecture | ARM 32 bit |
| CPU | IPQ-4019 |
| CPU nominal frequency | 716,8 MHz |
| CPU core count | 4 |
| Size of RAM | 64 MB |
| Memory type | SPI flash |
| Memory size | 16 MB |
| Dimensions | 143 x 247 x 48 mm |
| License level | 4 |
| Operating system | RouterOS |
| Tested ambient temperature | -40°C .. +70°C |
| Powering | |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| PoE in | 802.3 af/at |
| Poe in input voltage | 24 – 57 V |
| DC jack input voltage | 12 – 57 V |
| Max power consumption | 28 W |
| Max power consumption without attachments | 12 W |
